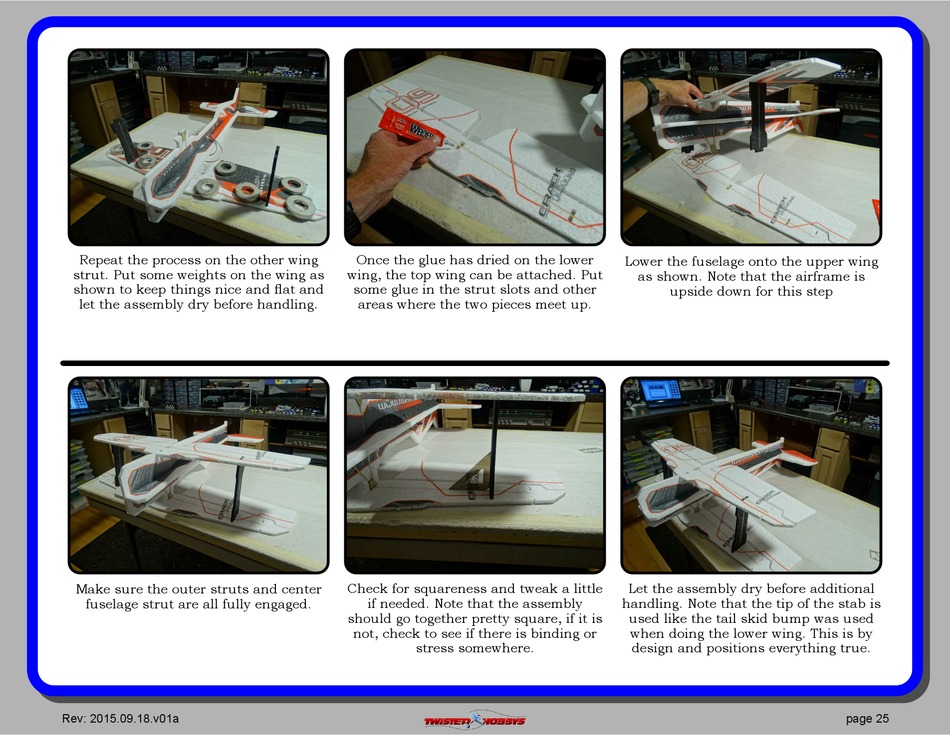

Twisted Hobbys CRACK PITTS Assembly Manual page 25

Repeat the process on the other wing
strut. Put some weights on the wing as
shown to keep things nice and at and
let the assembly dry before handling.
Make sure the outer struts and center
fuselage strut are all fully engaged.
Rev: 2015.09.18.v01a
Once the glue has dried on the lower
wing, the top wing can be attached. Put
some glue in the strut slots and other
areas where the two pieces meet up.
Check for squareness and tweak a little
if needed. Note that the assembly
should go together pretty square, if it is
not, check to see if there is binding or
stress somewhere.
Lower the fuselage onto the upper wing
as shown. Note that the airframe is
upside down for this step
Let the assembly dry before additional
handling. Note that the tip of the stab is
used like the tail skid bump was used
when doing the lower wing. This is by
design and positions everything true.
page 25
