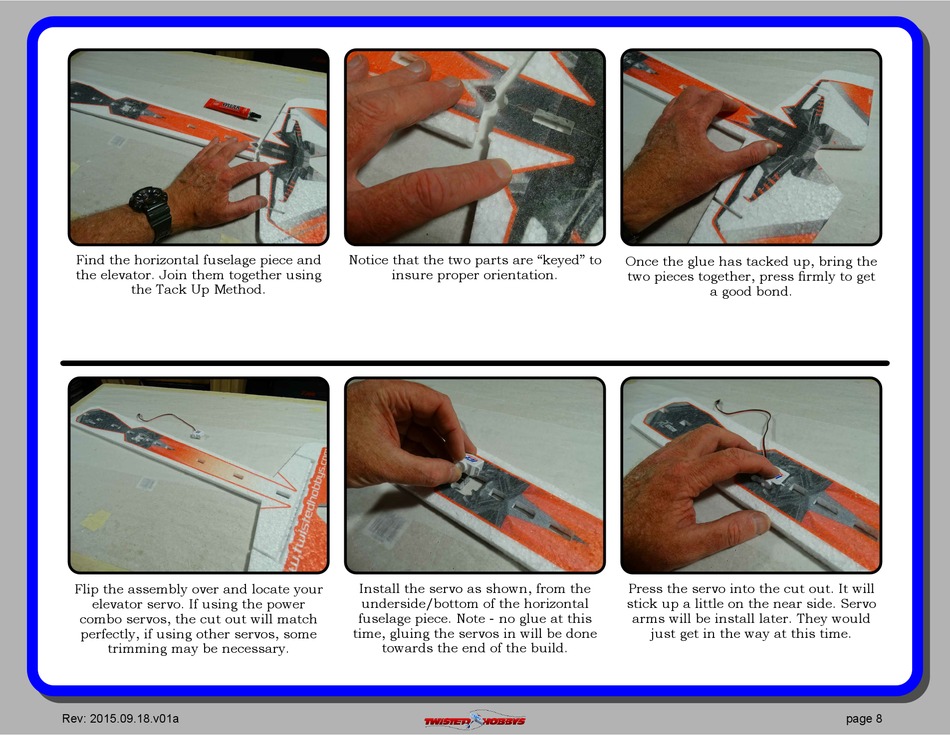

Twisted Hobbys CRACK PITTS Assembly Manual page 8

Find the horizontal fuselage piece and Notice that the two parts are "keyed" to
Once the glue has tacked up, bring the
the elevator. Join them together using insure proper orientation.
two pieces together, press rmly to get
the Tack Up Method.
a good bond.
Install the servo as shown, from the Press the servo into the cut out. It will
Flip the assembly over and locate your
elevator servo. If using the power underside/bottom of the horizontal stick up a little on the near side. Servo
combo servos, the cut out will match fuselage piece. Note - no glue at this arms will be install later. They would
perfectly, if using other servos, some time, gluing the servos in will be done just get in the way at this time.
towards the end of the build.
trimming may be necessary.
page 8
Rev: 2015.09.18.v01a
