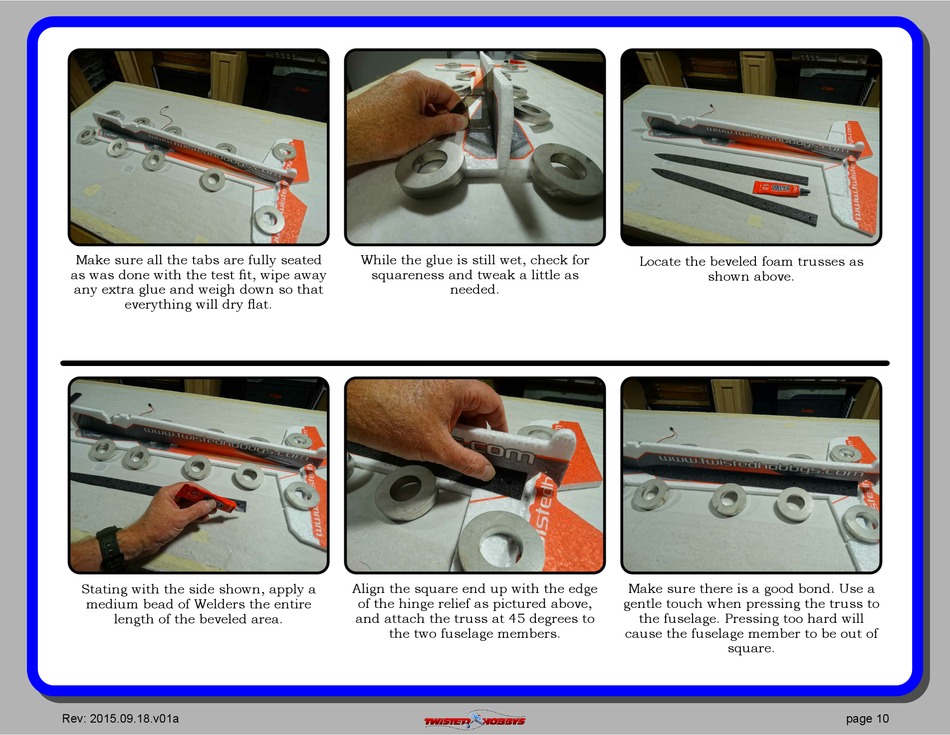

Twisted Hobbys CRACK PITTS Assembly Manual page 10

Make sure all the tabs are fully seated While the glue is still wet, check for
Locate the beveled foam trusses as
as was done with the test t, wipe away squareness and tweak a little as
shown above.
any extra glue and weigh down so that needed.
everything will dry at.
Align the square end up with the edge Make sure there is a good bond. Use a
Stating with the side shown, apply a
medium bead of Welders the entire of the hinge relief as pictured above, gentle touch when pressing the truss to
length of the beveled area. and attach the truss at 45 degrees to the fuselage. Pressing too hard will
the two fuselage members. cause the fuselage member to be out of
square.
page 10
Rev: 2015.09.18.v01a
