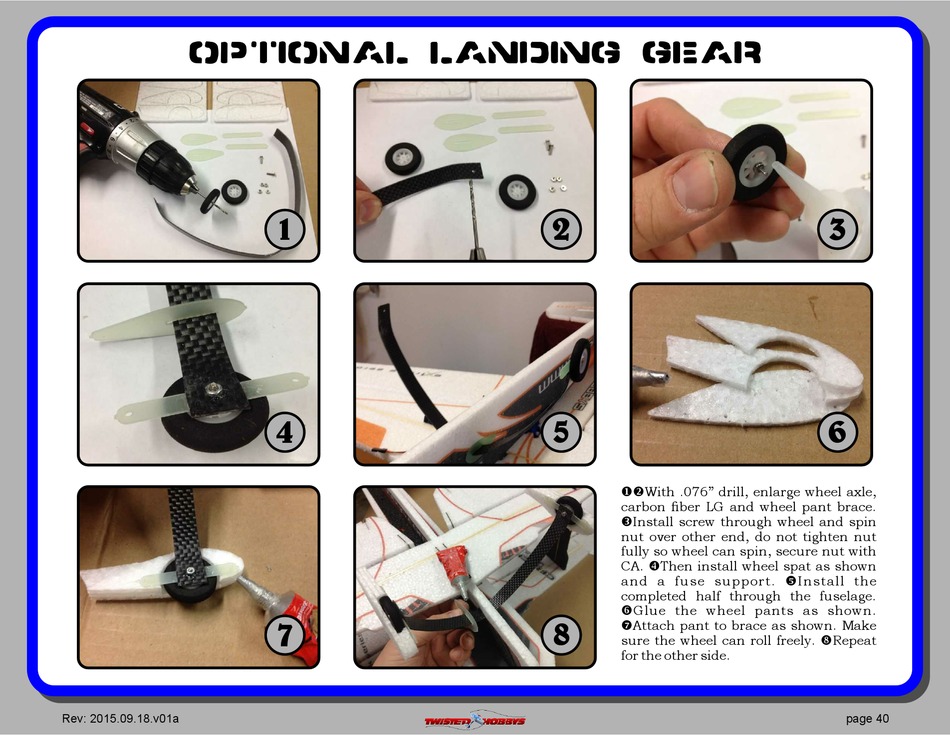

optional landing gear
Rev: 2015.09.18.v01a
1
4
7
2
5
With .076" drill, enlarge wheel axle,
carbon ber LG and wheel pant brace.
Install screw through wheel and spin
nut over other end, do not tighten nut
fully so wheel can spin, secure nut with
CA. Then install wheel spat as shown
and a fuse support. Install the
completed half through the fuselage.
Glue the wheel pants as shown.
8
Attach pant to brace as shown. Make
sure the wheel can roll freely. Repeat
for the other side.
3
6
page 40
