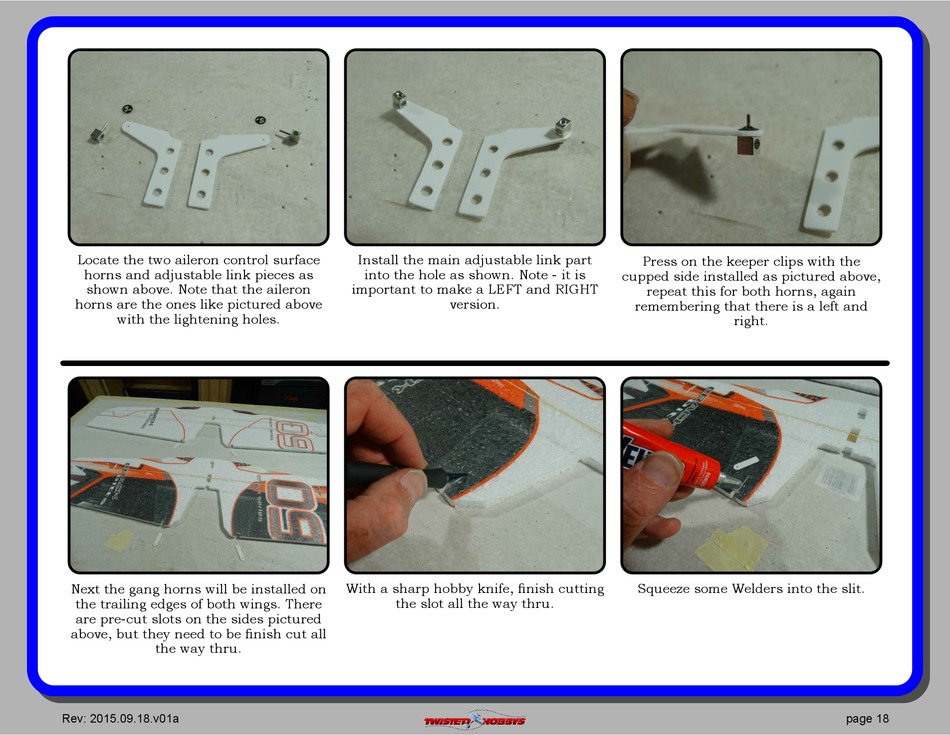

Twisted Hobbys CRACK PITTS Assembly Manual page 18

Locate the two aileron control surface
horns and adjustable link pieces as
shown above. Note that the aileron
horns are the ones like pictured above
with the lightening holes.
Next the gang horns will be installed on
the trailing edges of both wings. There
are pre-cut slots on the sides pictured
above, but they need to be nish cut all
the way thru.
Rev: 2015.09.18.v01a
Install the main adjustable link part
into the hole as shown. Note - it is
important to make a LEFT and RIGHT
version.
With a sharp hobby knife, nish cutting
the slot all the way thru.
Press on the keeper clips with the
cupped side installed as pictured above,
repeat this for both horns, again
remembering that there is a left and
right.
Squeeze some Welders into the slit.
page 18
