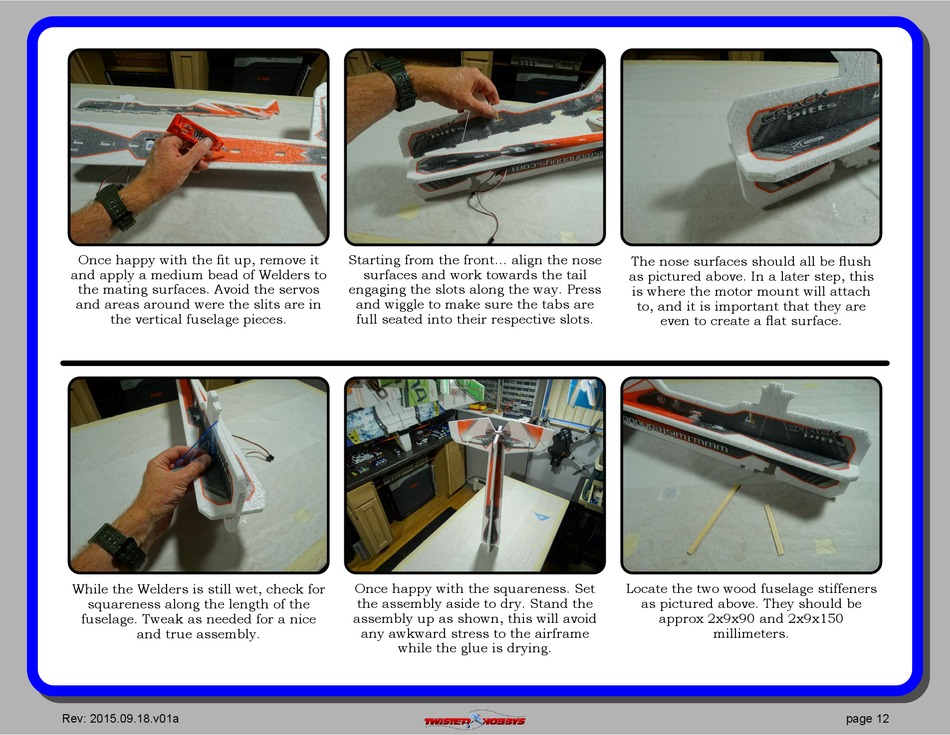

Twisted Hobbys CRACK PITTS Assembly Manual page 12

Once happy with the t up, remove it
and apply a medium bead of Welders to
the mating surfaces. Avoid the servos
and areas around were the slits are in
the vertical fuselage pieces.
While the Welders is still wet, check for
squareness along the length of the
fuselage. Tweak as needed for a nice
and true assembly.
Rev: 2015.09.18.v01a
Starting from the front... align the nose
surfaces and work towards the tail
engaging the slots along the way. Press
and wiggle to make sure the tabs are
full seated into their respective slots.
Once happy with the squareness. Set
the assembly aside to dry. Stand the
assembly up as shown, this will avoid
any awkward stress to the airframe
while the glue is drying.
The nose surfaces should all be ush
as pictured above. In a later step, this
is where the motor mount will attach
to, and it is important that they are
even to create a at surface.
Locate the two wood fuselage stiffeners
as pictured above. They should be
approx 2x9x90 and 2x9x150
millimeters.
