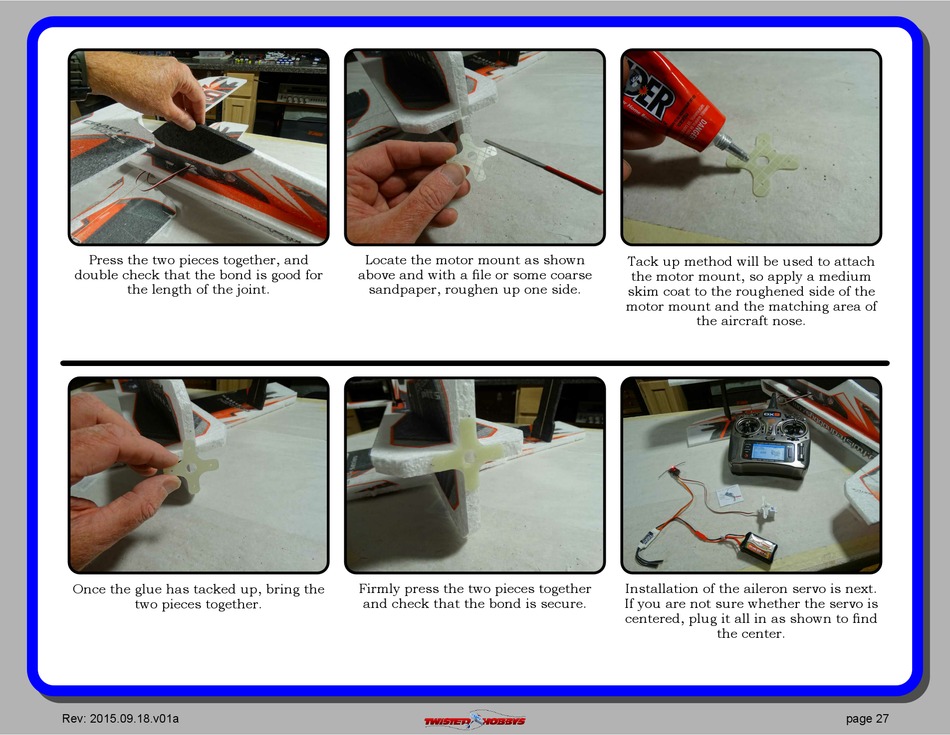

Twisted Hobbys CRACK PITTS Assembly Manual page 27

Press the two pieces together, and
double check that the bond is good for
the length of the joint.
Once the glue has tacked up, bring the
two pieces together.
Rev: 2015.09.18.v01a
Locate the motor mount as shown
above and with a le or some coarse
sandpaper, roughen up one side.
Firmly press the two pieces together
and check that the bond is secure.
Tack up method will be used to attach
the motor mount, so apply a medium
skim coat to the roughened side of the
motor mount and the matching area of
the aircraft nose.
Installation of the aileron servo is next.
If you are not sure whether the servo is
centered, plug it all in as shown to nd
the center.
page 27
