Figure 5. Wlcsp36 Package Pinout; Figure 6. Lqfp32 Package Pinout - STMicroelectronics STM32F042F4 Manual

Arm-based 32-bit mcu, up to 32 kb flash, crystal-less usb fs 2.0, can, 9 timers, adc and comm. interfaces, 2.0 - 3.6 v

Hide thumbs Also See for STM32F042F4:

Table of Contents

STM32F042x4 STM32F042x6

Pinouts and pin descriptions

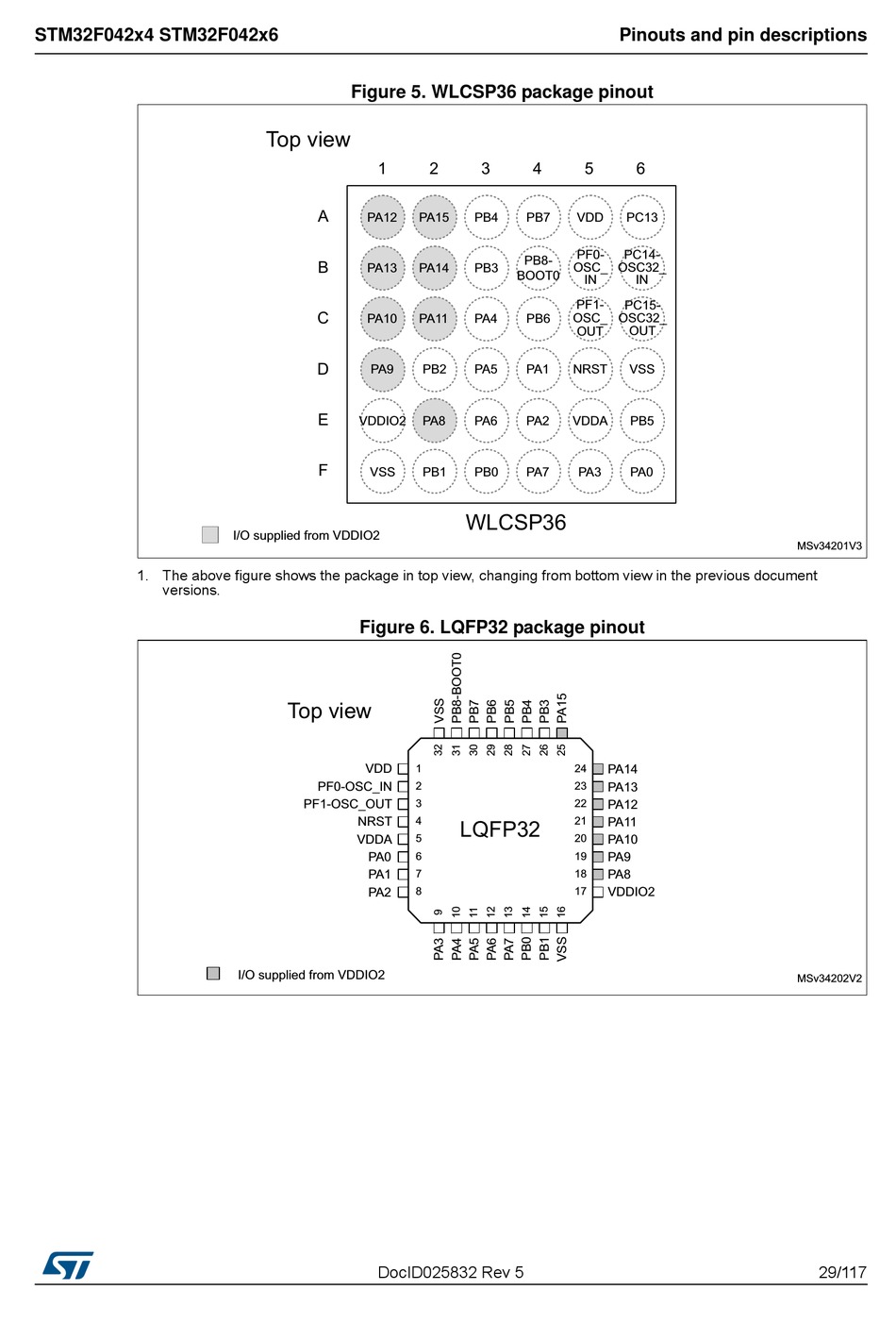

Figure 5. WLCSP36 package pinout

1. The above figure shows the package in top view, changing from bottom view in the previous document

versions.

DocID025832 Rev 5

29/117
