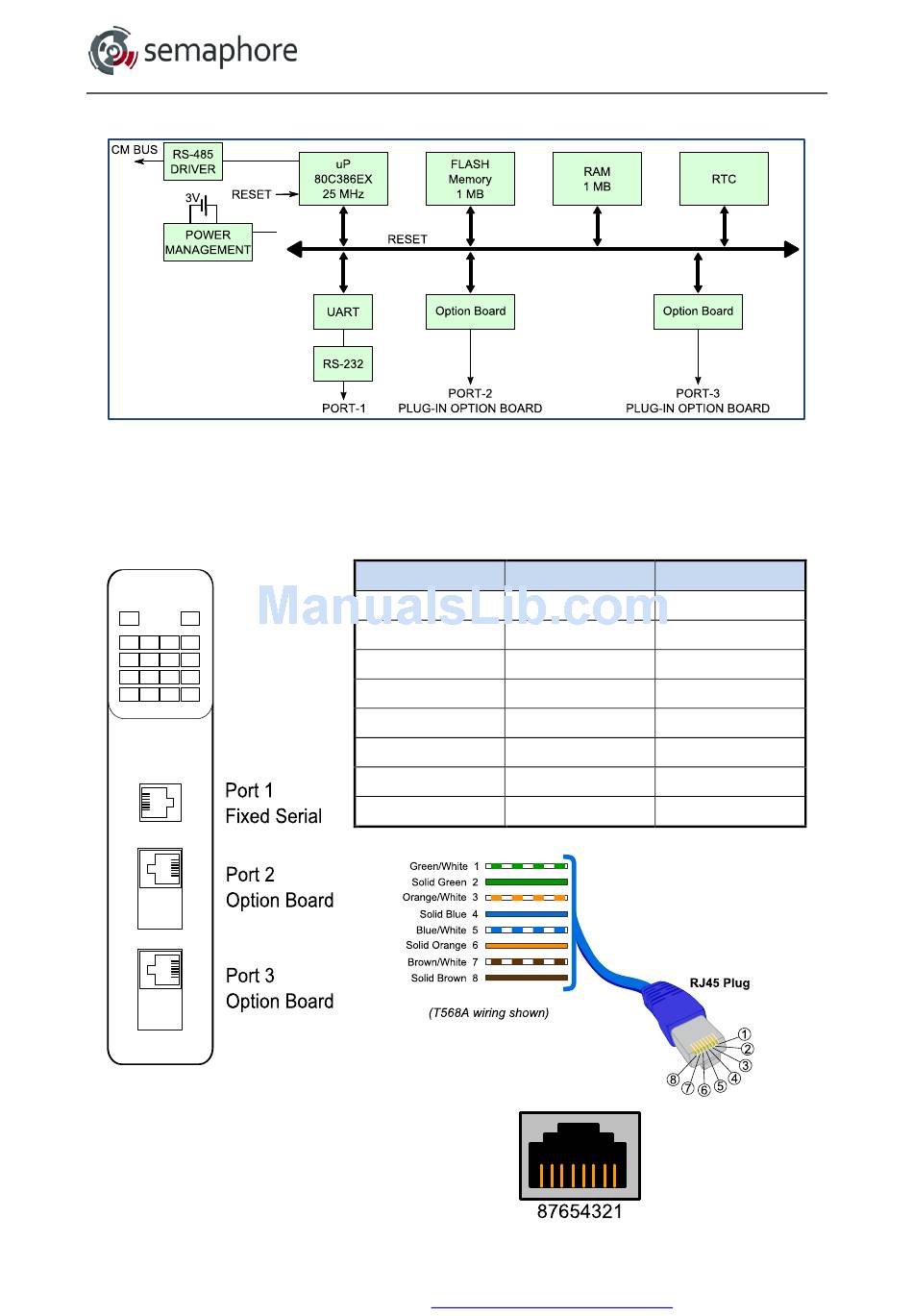

5.2.4 MC-10/11/30 Block Diagram

5.2.5 MC-10/11/30 Ports

The MC-10/11/30 module features up to three serial ports accessible by RJ45 connectors on
the front of the module and covered by the snap on cable cover. Port 1 is at the top for
RS232 connections only. Port 2 and 3 can be configured using plug-in option boards.
Hardware Manual Version 7.16
Kingfisher Plus+ Hardware Manual
Port 1 Pins Direction
1
2
3
4
5
6
7
8
http://www.servelec-semaphore.com/
RS232 signal
OUT DTR
- n/c
OUT RTS
IN DCD
COM GND (0 V)
IN CTS
IN RxD
OUT TxD
