semaphore KINGFISHER PLUS+ Hardware Reference Manual page 208

Note: DC powered inputs and low voltage AC inputs can both be used on the same module.

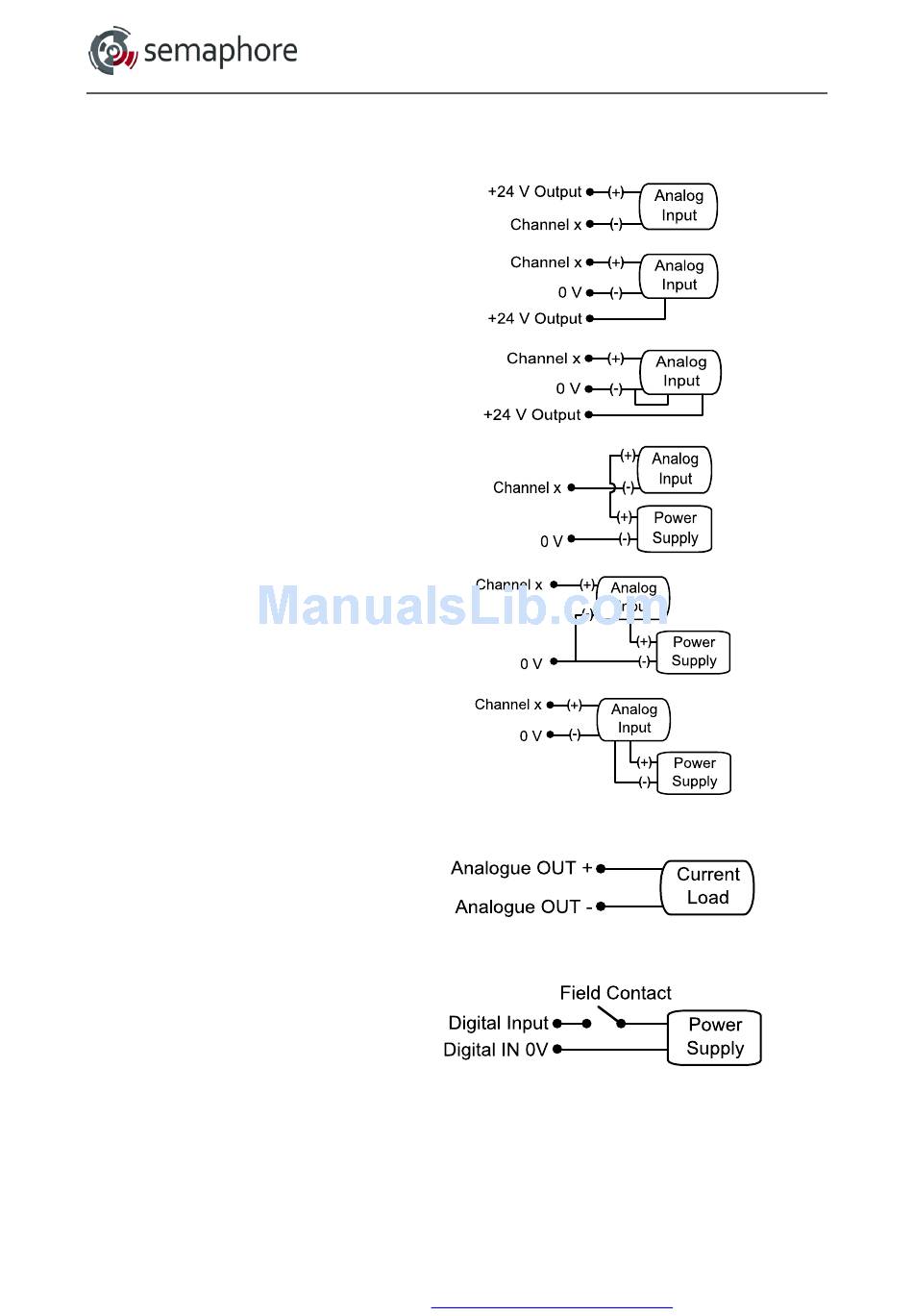

Analogue Input Examples
2 wire transmitter
(powered by module)
3 wire transmitter
(powered by module)
4 wire transmitter
(powered by module)
2 wire transmitter
(powered externally)
3 wire transmitter
(powered externally)
4 wire transmitter
(powered externally)
Analogue Output Example
Analogue load
Digital Input Example
Sensing the output form a field
Hardware Manual Version 7.16
