DIGITAL OUTPUTS
Outputs per Module
Commons
Relay T ype
Maximum Switched
Maximum Switched
Isolation
Minimum Load
Contact Resistance
Relay Operations
Relay Part Number
CAUTION! Contacts should be protected with appropriate suppression devices when wired with
inductive loads to increase the service life of relays (please see the
section for more details). Contacts should also be protected with external fusing.

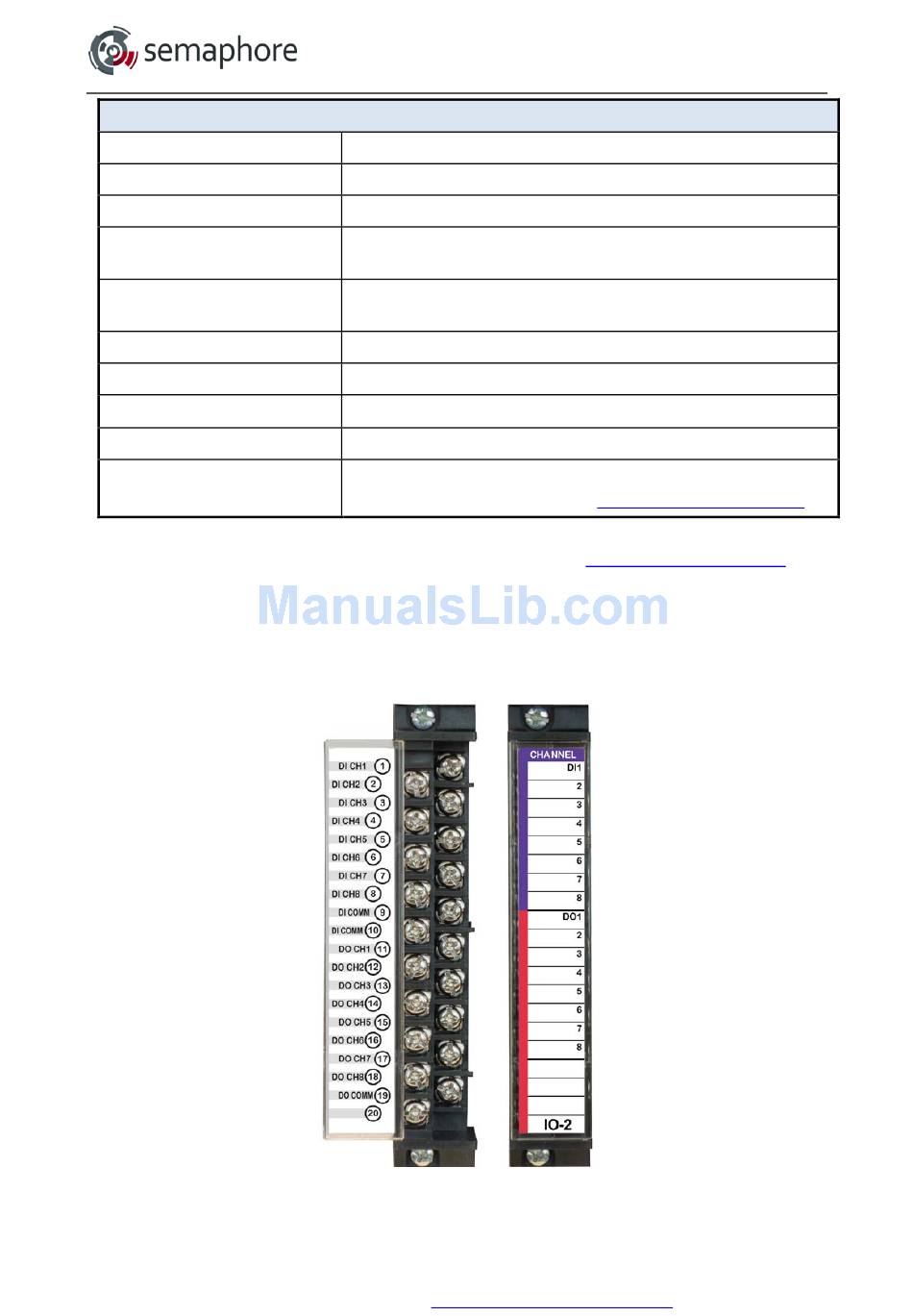

14.1.4 IO-2 Wiring Diagram
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
Hardware Manual Version 7.16
8
1 (common supplies all 8 outputs)
SPST (Single Pole Single Throw)
30 V , 42 V
DC
Voltage
5 A per common
Current
3 kV coil to contacts
10 mA @ 5 V
100 mΩ maximum
70,000 minimum at 1800 operations per hour at rated load
Omron G6D-1A 12 V
(G6D datasheet is available from http://components.omron.eu/)
http://www.servelec-semaphore.com/
Kingfisher Plus+ Hardware Manual
AC
DC
DC
"Switching Inductive Loads"
Page 200
