Kingfisher Plus+ Hardware Manual

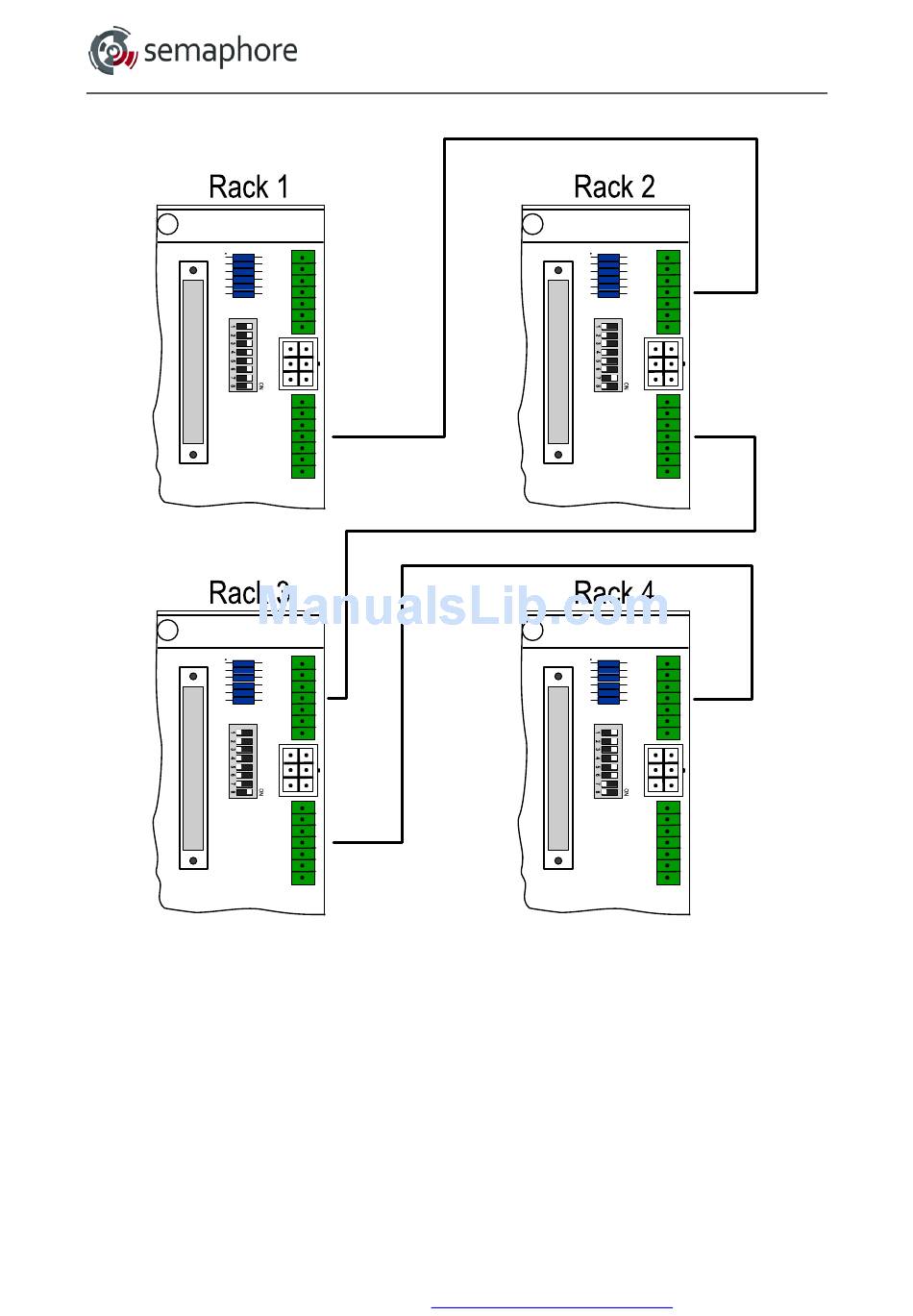

Backplane Switch Configuration Example (revision 2.x and 3.x):
Note that supplementary to the data bus connections shown, each backplane requires either
a Power Supply Module installed or a power cable connected to J14.
For previous backplane hardware revisions please refer to the Superseded Products
Manual.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 32
