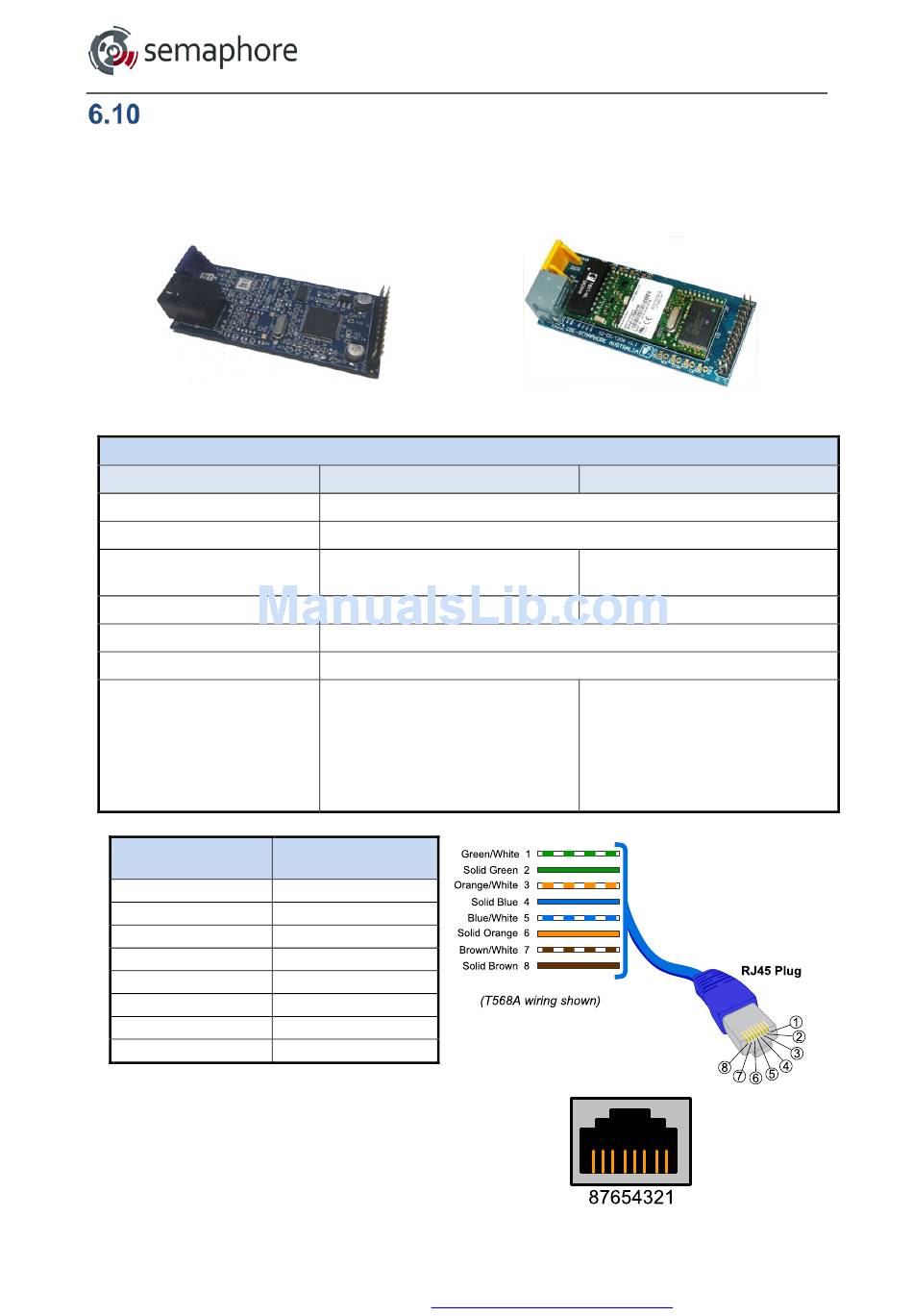

Option Boards T3 & T2: 10/100 Ethernet Controller
The Ethernet Option Boards provide full duplex Ethernet connectivity over UTP cables. The
option boards feature automatic speed and MDI/MDI-X negotiation. Technical specifications
of the T3 (currently in production) and T2 (superseded product) Ethernet Option Boards are
described below.
Ethernet Option Board T3
Parameter
Connection Speed
Connection Durability
Power Consumption
Operating Temperature
Operating Humidity
Storage Temperature
Compatibility
Port 1 Pins
1
2
3
4
5
6
7
8
Hardware Manual Version 7.16
Ethernet Option Board Specifications
T3 Option Board
10/100 Mbps (auto negotiated)
300 mA
(from +5 VDC Bus on backplane)
-40 to +85 °C
5 to 95 % RH (non-condensing)
Can be installed in any of the
following ports:
CP-11/12/30 Port 2 or Port 3
MC-11/12/31 Port 2 or Port 3
LP-2 Port 4
LP-3 Port 3 or Port 4
Ethernet
Function
Tx+
Tx-
Rx+
n/c
n/c
Rx-
n/c
n/c
http://www.servelec-semaphore.com/
Kingfisher Plus+ Hardware Manual
Ethernet Option Board T2
T2 Option Board
Approximately 750 cycles
(from +5 VDC Bus on backplane)
-40 to +85 °C
Can be installed in any of the
following ports:
CP-30 Port 2 or Port 3
MC-30/31 Port 2 or Port 3
310 mA
-20 to +70 °C
Page 116
