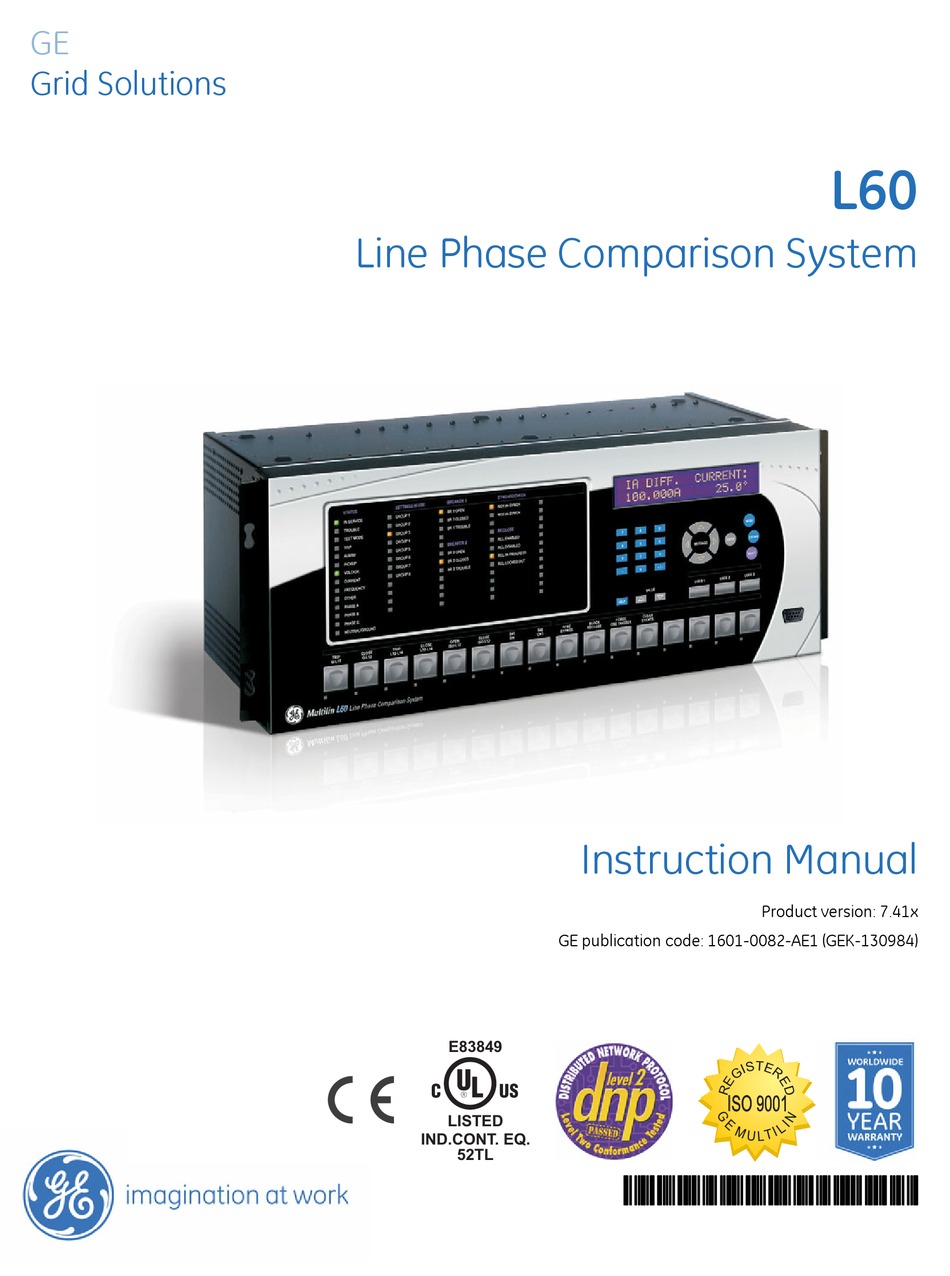

GE
Grid Solutions
L60
Line Phase Comparison System
Instruction Manual
Product version: 7.41x
GE publication code: 1601-0082-AE1 (GEK-130984)
E83849
LISTED
IND.CONT. EQ.
52TL
1601-0082-AE1

Advertisement

Table of Contents

   Also See for ge L60

   Related Manuals for ge L60

   Summary of Contents for ge L60

  • Page 1 Grid Solutions Line Phase Comparison System Instruction Manual Product version: 7.41x GE publication code: 1601-0082-AE1 (GEK-130984) E83849 LISTED IND.CONT. EQ. 52TL 1601-0082-AE1...
  • Page 2 The contents of this manual are the property of GE Multilin Inc. This documentation is furnished on license and may not be reproduced in whole or in part without the permission of GE Multilin. The content of this manual is for informational use only and is subject to change without notice.
  • Page 3: Table Of Contents

    3 INSTALLATION Unpack and inspect..................3-1 Panel cutouts....................3-2 3.2.1 Horizontal units ........................3-2 3.2.2 Vertical units ........................... 3-3 3.2.3 Rear terminal layout ......................3-8 Wiring ........................ 3-9 3.3.1 Typical wiring ......................... 3-9 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 4 4.2.1 Front panel display......................4-15 4.2.2 Front panel keypad ......................4-16 4.2.3 Menu navigation ........................ 4-16 4.2.4 Menu hierarchy........................4-16 4.2.5 Changing settings......................4-17 4.2.6 Faceplate ..........................4-19 4.2.7 LED indicators........................4-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 5 FlexLogic operands ......................5-145 5.5.2 FlexLogic rules ........................5-158 5.5.3 FlexLogic evaluation ...................... 5-158 5.5.4 FlexLogic example ......................5-159 5.5.5 FlexLogic equation editor ....................5-164 5.5.6 FlexLogic timers .......................5-164 5.5.7 FlexElements........................5-164 5.5.8 Non-volatile latches .......................5-168 Grouped elements ..................5-169 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 6 Status......................... 6-4 6.3.1 Contact inputs ........................6-4 6.3.2 Virtual inputs ...........................6-4 6.3.3 RxGOOSE boolean inputs ....................6-4 6.3.4 RxGOOSE DPS inputs......................6-4 6.3.5 Teleprotection inputs ......................6-5 6.3.6 Contact outputs........................6-5 6.3.7 Virtual outputs........................6-5 6.3.8 RxGOOSE status........................6-6 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 7 Distance/backup supervision................ 8-4 8.2.1 Overview........................... 8-4 8.2.2 Lines with tapped transformers ..................8-5 8.2.3 Transformer load currents....................8-6 8.2.4 Low-voltage-side faults..................... 8-6 8.2.5 Transformer inrush current ..................... 8-6 8.2.6 Tractional load........................8-7 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 8 10.8 Replace module....................10-12 10.9 Battery ......................10-14 10.9.1 Replace battery for SH/SL power supply ............. 10-14 10.9.2 Dispose of battery ......................10-15 10.10 Clear files and data after uninstall............10-18 10.11 Repairs......................10-19 10.12 Storage ......................10-19 viii L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 9 A.1 FlexAnalog items .....................A-1 OPERANDS B RADIUS SERVER B.1 RADIUS server configuration ................. B-1 CONFIGURATION C COMMAND LINE C.1 Command line interface .................C-1 INTERFACE D MISCELLANEOUS D.1 Warranty ......................D-1 D.2 Revision history ....................D-1 ABBREVIATIONS INDEX L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 10 TABLE OF CONTENTS L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 11: Introduction

    Ensure that the control power applied to the device, the AC current, and voltage input match the ratings specified on the relay nameplate. Do not apply current or voltage in excess of the specified limits. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 12: For Further Assistance

    Worldwide e-mail: multilin.tech@ge.com Europe e-mail: multilin.tech.euro@ge.com Website: http://www.gegridsolutions.com/multilin When contacting GE by e-mail, optionally include a device information file, which is generated in the EnerVista software by clicking the Service Report button. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 13 CHAPTER 1: INTRODUCTION FOR FURTHER ASSISTANCE Figure 1-1: Generate service report L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 14 FOR FURTHER ASSISTANCE CHAPTER 1: INTRODUCTION L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 15: Product Description

    2.1 Product description The L60 Line Phase Comparison System is part of the Universal Relay (UR) series of products. It provides a simple phase- comparison principle successfully employed by analog and static relays for many years, along with the significant advantages of a modern microprocessor-based relay.
  • Page 16: Description

    Redundancy Protocol (PRP) of IEC 62439-3 (clause 4, 2012) when purchased as an option. Secure Routable GOOSE (R-GOOSE) is supported with software options. Settings and actual values can be accessed from the front panel or EnerVista software. The figures show typical two-terminal and three-terminal applications. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 17 PRODUCT DESCRIPTION Figure 2-1: 87PC communications The L60 uses flash memory technology that allows field upgrading as new features are added. Firmware and software are upgradable. The following single-line diagram illustrates the relay functionality using American National Standards Institute (ANSI) device numbers.
  • Page 18 Contact Inputs (up to 96) Modbus User Map Contact Outputs (up to 64) Non-Volatile Latches Control Pushbuttons Non-Volatile Selector Switch CT Failure Detector Open Breaker Echo CyberSentry™ Security Open Pole Detector Data Logger Oscillography L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 19: Security

    The L60 supports password entry from a local or remote connection. Local access is defined as any access to settings or commands via the faceplate interface. This includes both keypad entry and the through the faceplate RS232 port. Remote access is defined as any access to settings or commands via any rear communications port.
  • Page 20 Table 2-3: Permissions by user role for CyberSentry Roles Administrator Engineer Operator Supervisor Observer Complete access Complete access Command Authorizes Default role except for menu writing CyberSentry Security Device Definition Settings |---------- Product Setup |--------------- Security (CyberSentry) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 21 |--------------- Direct Inputs |--------------- Direct Outputs |--------------- Teleprotection |--------------- Direct Analogs |--------------- Direct Integers |---------- Transducer I/O |---------- Testing |---------- Front Panel Labels Designer |---------- Protection Summary Commands |---------- Virtual Inputs |---------- Clear Records L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 22: Order Codes

    Module options are specified at the time of ordering. The L60 is specified with either one CT/VT module (8P) or two CT/VT modules (8F and 8P). When the L60 is applied in two- breaker configurations (such as breaker-and-a-half or ring configurations), the currents from the two CTs are summed internally within the relay or externally.
  • Page 23 CHAPTER 2: PRODUCT DESCRIPTION ORDER CODES Table 2-4: L60 order codes for horizontal units - * ** - * * * - F ** - H ** - L ** - N ** - S ** - U ** - W/X **...
  • Page 24 7Q Channel 1 - G.703; Channel 2 - 1300 nm, single-mode Laser G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel 7W RS422, 2 Channels Table 2-5: L60 order codes for reduced-size vertical units - * ** - * * * - F ** - H **...
  • Page 25 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, Laser 7Q Channel 1 - G.703; Channel 2 - 1300 nm, single-mode Laser G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel 7W RS422, 2 Channels L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-11...
  • Page 26: Replacement Modules

    Replacement modules can be ordered separately. When ordering a replacement CPU module or faceplate, provide the serial number of your existing unit. Not all replacement modules apply to the L60 relay. The modules specified in the order codes for the L60 are available as replacement modules for the L60.
  • Page 27 IEEE C37.94, 820 nm, 64 kbps, multimode, LED, 1 Channel IEEE C37.94, 820 nm, 64 kbps, multimode, LED, 2 Channels 820 nm, multimode, LED, 1 Channel 1300 nm, multimode, LED, 1 Channel L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-13...
  • Page 28: Signal Processing

    (when applicable), and auxiliary voltages. The 2.4 kHz cut-off frequency applies to both 50 Hz and 60 Hz applications and fixed in the hardware, and thus is not dependent on the system nominal frequency setting. 2-14 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 29 The A/D converter has the following ranges of AC signals: Voltages: Eq. 2-1 Currents: Eq. 2-2 Current harmonics are estimated based on raw samples with the use of the full-cycle Fourier filter. Harmonics 2nd through 25th are estimated. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-15...
  • Page 30: Specifications

    ICD/CID/IID files, and so on), IEEE 1588 (IEEE C37.238 power profile) based time synchronization, CyberSentry (advanced cyber security), the Parallel Redundancy Protocol (PRP), IEC 60870-5-103, and so on. 2.5 Specifications Specifications are subject to change without notice. 2-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 31: Protection Elements

    Left Blinder (Quad only): Reach: 0.02 to 500 Ω in steps of 0.01 Characteristic angle: 60 to 90° in steps of 1 Time delay: 0.000 to 65.535 s in steps of 0.001 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-17...
  • Page 32 1 to 1.5 cycles (typical) Reset time: 1 power cycle (typical) LINE PICKUP Phase instantaneous overcurrent: 0.020 to 30.000 pu Undervoltage pickup: 0.004 to 3.000 pu Overvoltage delay: 0.000 to 65.535 s 2-18 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 33 > 2.0 × CT: ±1.5% of reading > 2.0 × CT rating Curve shapes: IEEE Moderately/Very/Extremely Inverse; IEC (and BS) A/B/C and Short Inverse; GE IAC Inverse, Short/Very/ Extremely Inverse; I t; FlexCurves™ (programmable); Definite Time (0.01 s base curve) Curve multiplier: Time Dial = 0.00 to 600.00 in steps of 0.01...
  • Page 34 0.01 to 2.00 s in steps of 0.01 Curve timing accuracy: ±3.5% of operate time or ±1 cycle (whichever is greater) from pickup to operate Operate time: <30 ms at 60 Hz 2-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 35 0 to 600.00 s in steps of 0.01 Timer accuracy: ±3% of operate time or ±1/4 cycle (whichever is greater) Operate time: <30 ms at 1.10 × pickup at 60 Hz L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-21...
  • Page 36 S-CLS MAX dF: 0.10 to 2.00 Hz in steps of 0.01 S-CLS MIN dF: 0.00 to 1.00 Hz in steps of 0.01 V2 MAG CORR FACTOR: 0.10 to 10.00 in steps of 0.01 2-22 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 37 0.000 to 30.000 pu in steps of 0.001 Current dropout level: pickup + 3%, not less than 0.05 pu THERMAL OVERLOAD PROTECTION Thermal overload curves: IEC 255-8 curve Base current: 0.20 to 3.00 pu in steps of 0.01 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-23...
  • Page 38: User-programmable Elements

    Execution sequence: as input prior to protection, control, and FlexLogic USER-PROGRAMMABLE LEDs Number: 48 plus trip and alarm Programmability: from any logical variable, contact, or virtual input 2-24 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 39: Monitoring

    FlexLogic equation Data: AC input channels; element state; contact input state; contact output state Data storage: in non-volatile memory EVENT RECORDER Capacity: 1024 events Time-tag: to 1 microsecond L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-25...
  • Page 40: Metering

    Accuracy at 0.1 to 1.5 x CT rating and 0.8 to 1.2 x VT rating: ±1.0% of reading WATT-HOURS (POSITIVE AND NEGATIVE) Accuracy: ±2.0% of reading Range: ±0 to 1 × 10 2-26 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 41: Inputs

    17 V, 33 V, 84 V, 166 V Tolerance: ±10% Contacts per common return: Recognition time: < 1 ms Debounce time: 0.0 to 16.0 ms in steps of 0.5 Continuous current draw: 4 mA (when energized) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-27...
  • Page 42 1 to 1000 in steps of 1 TELEPROTECTION Input points: Remote devices: Default states on loss of comms.: On, Off, Latest/Off, Latest/On Ring configuration: Data rate: 64 or 128 kbps CRC: 32-bit 2-28 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 43: Power Supply

    Operate time: < 4 ms Contact material: silver alloy LATCHING RELAY Make and carry for 0.2 s: 30 A as per ANSI C37.90 Carry continuous: 6 A as per IEEE C37.90 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-29...
  • Page 44 <100 µs Maximum voltage: 265 V DC Maximum leakage current in off state (excluding voltage monitor circuit current): 100 µA Maximum continuous current: 5 A at 45°C; 4 A at 65°C 2-30 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 45: Communication Protocols

    19.2 or 115.2 kbps, Modbus RTU RS485 1 rear port: up to 115 kbps, Modbus RTU, DNP 3, IEC 60870-5-103 Typical distance: 1200 m Isolation: 2 kV, isolated together at 36 Vpk L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-31...
  • Page 46: Inter-relay Communications

    Cable type Transmit power Received Power budget Maximum sensitivity optical input power 820 nm, Multimode 62.5/125 μm -16 dBm -32 dBm 16 dBm -8 dBm 50/125 μm -20 dBm 12 dBm 2-32 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 47 Typical distances listed are based on the following assumptions for system loss. As actual losses vary from one installation to another, the distance covered by your system can vary. CONNECTOR LOSSES (TOTAL OF BOTH ENDS) ST connector: 0.7 dB (each) FIBER LOSSES 820 nm multimode: 3 dB/km L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-33...
  • Page 48: Cybersentry Security

    95% (non-condensing) at 55°C (as per IEC60068-2-30 variant 1, 6 days) OTHER Altitude: 2000 m (maximum) Pollution degree: Overvoltage category: Ingress protection: IP20 front, IP10 back Noise: 0 dB 2-34 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 49: Type Tests

    Insulation: class 1, Pollution degree: 2, Over voltage cat II 1 Not tested by third party. 2.5.13 Production tests THERMAL Products go through an environmental test based upon an Accepted Quality Level (AQL) sampling process. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 2-35...
  • Page 50: Approvals

    Normally, cleaning is not required. When dust has accumulated on the faceplate display, wipe with a dry cloth. To avoid deterioration of electrolytic capacitors, power up units that are stored in a de-energized state once per year, for one hour continuously. 2-36 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 51: Installation

    For any issues, contact GE Grid Solutions as outlined in the For Further Assistance section in chapter 1. Check that you have the latest copy of the L60 Instruction Manual and the UR Family Communications Guide, for the applicable firmware version, at http://gegridsolutions.com/multilin/manuals/index.htm...
  • Page 52: Panel Cutouts

    Maintenance > Change Front Panel. 3.2.1 Horizontal units The L60 is available as a 19-inch rack horizontal mount unit with a removable faceplate. The faceplate can be specified as either standard or enhanced at the time of ordering. The enhanced faceplate contains additional user-programmable pushbuttons and LED indicators.
  • Page 53: Vertical Units

    3.2.2 Vertical units The L60 is available as a reduced size (¾) vertical mount unit, with a removable faceplate. The faceplate can be specified as either standard or enhanced at the time of ordering. The enhanced faceplate contains additional user-programmable pushbuttons and LED indicators.
  • Page 54 PANEL CUTOUTS CHAPTER 3: INSTALLATION Figure 3-4: Vertical dimensions (enhanced panel) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 55 CHAPTER 3: INSTALLATION PANEL CUTOUTS Figure 3-5: Vertical and mounting dimensions (standard panel) For side-mounting L60 devices with the enhanced front panel, see the following documents available on the UR DVD and the GE Grid Solutions website: • GEK-113180 — UR-Series UR-V Side-Mounting Front Panel Assembly Instructions •...
  • Page 56 PANEL CUTOUTS CHAPTER 3: INSTALLATION For side-mounting L60 devices with the standard front panel, use the following figures. Figure 3-6: Vertical side-mounting installation (standard panel) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 57 CHAPTER 3: INSTALLATION PANEL CUTOUTS Figure 3-7: Vertical side-mounting rear dimensions (standard panel) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 58: Rear Terminal Layout

    (nearest to CPU module), indicated by an arrow marker on the terminal block. The figure shows an example of rear terminal assignments. Figure 3-8: Example of modules in F and H slots L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 59: Wiring

    3.3.2 Dielectric strength Dielectric strength is the maximum electric strength that can be sustained without breakdown. It is measured in volts. The table shows the dielectric strength of the UR-series module hardware. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 60: Control Power

    The power supply module can be ordered for two possible voltage ranges, and the L60 can be ordered with or without a redundant power supply module option. Each range has a dedicated input connection for proper operation. The ranges are as follows (see the Specifications section of chapter 2 for details): •...
  • Page 61: Ct/vt Modules

    The phase voltage channels are used for most metering and protection purposes. The auxiliary voltage channel is used as input for the synchrocheck and volts-per-hertz features, which are optional features available for some UR models. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-11...
  • Page 62: Contact Inputs And Outputs

    WIRING CHAPTER 3: INSTALLATION The L60 uses a special CT/VT module not available on other UR-series relays. This type 8P module has four current inputs and special communications inputs/outputs for interfacing with PLCs. The communications interface requires an external DC source (station battery) to drive inputs/outputs as shown in the L60 Channel Communications section in this chapter.
  • Page 63 500 Ω, 10 W resistor is appropriate. In this configuration, the voltage across either the form-A contact or the resistor can be used to monitor the state of the output. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-13...
  • Page 64 ~6a, ~6c 2 Inputs Fast Form-C ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs Fast Form-C ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs 3-14 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 65 ~5a, ~5c 2 Inputs 2 Outputs Solid-State Solid-State ~6a, ~6c 2 Inputs 2 Outputs Not Used Not Used ~7a, ~7c 2 Inputs 2 Outputs Solid-State Solid-State ~8a, ~8c 2 Inputs Not Used L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-15...
  • Page 66 WIRING CHAPTER 3: INSTALLATION Figure 3-13: Contact input and output module wiring (Sheet 1 of 2) 3-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 67 CHAPTER 3: INSTALLATION WIRING Figure 3-14: Contact input and output module wiring (Sheet 2 of 2) For proper functionality, observe the polarity shown in the figures for all contact input and output connections. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-17...
  • Page 68 The contact inputs with auto-burnish create a high current impulse when the threshold is reached to burn off this oxidation layer as a maintenance to the contacts. Afterwards the contact input current is reduced to a steady-state current. The impulse has a five-second delay after a contact input changes state. 3-18 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 69: Transducer Inputs And Outputs

    Transducer output modules provide DC current outputs in several standard DCmA ranges. Software is provided to configure virtually any analog quantity used in the relay to drive the analog outputs. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-19...
  • Page 70 (5A, 5C, 5D, 5E, and 5F) and channel arrangements that can be ordered for the relay. Where a tilde “~” symbol appears, substitute the slot position of the module. Figure 3-18: Transducer input/output module wiring The following figure show how to connect RTDs. 3-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 71: Rs232 Faceplate Port

    EnerVista UR Setup software provided with the relay. Cabling for the RS232 port is shown in the following figure for both 9-pin and 25-pin connectors. The baud rate for this port can be set, with a default of 115200 bps. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-21...
  • Page 72: Cpu Communication Ports

    Figure 3-20: RS232 faceplate port connection 3.3.8 CPU communication ports 3.3.8.1 Overview In addition to the faceplate RS232 port, there is a rear RS485 communication port. The CPU modules do not require a surge ground connection. 3-22 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 73 This common voltage is implied to be a power supply common. Some systems allow the shield (drain wire) to be used as common wire and to connect directly to the L60 COM terminal (#3); others function correctly only if the common wire is connected to the L60 COM terminal, but insulated from the shield.
  • Page 74: Irig-b

    IRIG-B is a standard time code format that allows stamping of events to be synchronized among connected devices. The IRIG-B code allows time accuracies of up to 100 ns. Using the IRIG-B input, the L60 operates an internal oscillator with 1 µs resolution and accuracy.
  • Page 75: L60 Channel Communications

    L60 channel communications 3.3.10 As described earlier in this chapter, L60 communication channels reside on the special CT/VT module (type 8P). This module allows for all possible 87PC scheme combinations (such as dual phase comparison or single-phase comparison, two- terminal or three-terminal applications) in one module. The scheme can be upgraded or changed at any time. The L60 channel interface requires an external battery to drive inputs and outputs.
  • Page 76 WIRING CHAPTER 3: INSTALLATION Figure 3-24: L60 to PLC connections for a two-terminal line The communications circuitry has the following characteristics for the transmitter and receiver. 3.3.10.1 Transmitter characteristics • Operating voltage range — 0 to 300 V DC (typical points: 15 V, 48 V, 125 V, 250 V) •...
  • Page 77: Direct Input And Output Communications

    URs are in Loop Timing Mode. If there is no MUX, then UR1 and UR3 can be in Internal Timing Mode and UR2 and UR4 can be in Loop Timing Mode. That is, connected channels must have opposite timing modes. Figure 3-26: Ring configuration for C37.94 module (concept also applies to G.703) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-27...
  • Page 78 DIRECT I/O CHANNEL CROSSOVER forces UR2 to forward messages received on Rx1 out Tx2, and messages received on Rx2 out Tx1. Figure 3-28: Direct input and output single/dual channel combination connection 3-28 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 79: Fiber: Led And Eled Transmitters

    The following figure shows the configuration for the 72, 73, 7D, and 7K fiber-laser modules. Figure 3-30: 7x Laser fiber modules The following figure shows configuration for the 2I and 2J fiber-laser modules. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-29...
  • Page 80: Interface

    The following figure shows the typical pin interconnection between two G.703 interfaces. For the actual physical arrangement of these pins, see the Rear Terminal Layout section earlier in this chapter. All pin interconnections are to be maintained for a connection to a multiplexer. 3-30 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 81 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module is inserted fully. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-31...
  • Page 82 (S1 = ON) and set timing mode to loop timing (S5 = OFF and S6 = OFF). The switch settings for the internal and loop timing modes are shown. 3-32 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 83 One source lies on the G.703 line side of the interface while the other lies on the differential Manchester side of the interface. Figure 3-37: G.703 dual loopback mode L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-33...
  • Page 84: Rs422 Interface

    (data module 1) connects to the clock inputs of the UR RS422 interface in the usual way. In 3-34 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 85 Figure 3-40: Timing configuration for RS422 two-channel, three-terminal application Data module 1 provides timing to the L60 RS422 interface via the ST(A) and ST(B) outputs. Data module 1 also provides timing to data module 2 TT(A) and TT(B) inputs via the ST(A) and AT(B) outputs. The data module pin numbers have been omitted in the figure because they vary by manufacturer.
  • Page 86: Rs422 And Fiber Interface

    For the direct fiber channel, address power budget issues properly. When using a laser interface, attenuators can be necessary to ensure that you do not exceed maximum optical input power to the receiver. Figure 3-42: RS422 and fiber interface connection 3-36 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 87: And Fiber Interface

    Connection — as per all fiber optic connections, a Tx to Rx connection is required The UR-series C37.94 communication module can be connected directly to any compliant digital multiplexer that supports the IEEE C37.94 standard. The figure shows the concept. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-37...
  • Page 88 5.60. For customers using firmware release 5.60 and higher, the module can be identified with "Rev D" printed on the module and is to be used on all ends of L60 communication for two and three terminal applications.
  • Page 89 When the clips have locked into position, the module is inserted fully. Figure 3-47: IEEE C37.94 timing selection switch setting Modules shipped since January 2012 have status LEDs that indicate the status of the DIP switches, as shown in the following figure. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-39...
  • Page 90: C37.94sm Interface

    Fiber optic cable length — Up to 11.4 km • Fiber optic connector — Type ST • Wavelength — 1300 ±40 nm • Connection — As per all fiber optic connections, a Tx to Rx connection is required 3-40 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 91 5.60. For customers using firmware release 5.60 and higher, the module can be identified with "Rev D" printed on the module and is to be used on all ends of L60 communication for two and three terminal applications.
  • Page 92 When the clips have locked into position, the module is inserted fully. Figure 3-50: C37.94SM timing selection switch setting Modules shipped since January 2012 have status LEDs that indicate the status of the DIP switches, as shown in the following figure. 3-42 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 93: Activate Relay

    MESSAGE SECURITY Press the down arrow until the message displays. MESSAGE INSTALLATION Press the right arrow until the Not Programmed message displays. MESSAGE RELAY SETTINGS: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-43...
  • Page 94: Install Software

    To communicate via the faceplate RS232 port, use a standard straight-through serial cable. Connect the DB-9 male end to the relay and the DB-9 or DB-25 female end to the computer COM2 port as described in the CPU Communication Ports section earlier in this chapter. 3-44 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 95: System Requirements

    This device (catalog number F485) connects to the computer using a straight-through serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the L60 rear communications port. The converter terminals (+, –, GND) are connected to the L60 communication module (+, –, COM) terminals. See the CPU Communication Ports section in chapter 3 for details.
  • Page 96: Install Software

    Click the Next button to begin the installation. The files are installed in the directory indicated, and the installation program automatically creates icons and adds an entry to the Windows start menu. 3-46 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 97: Add Device To Software

    3.7 Add device to software You connect remotely to the L60 through the rear RS485 or Ethernet port with a computer running the EnerVista UR Setup software. The L60 also can be accessed locally with a computer through the front panel RS232 port or the rear Ethernet port using the Quick Connect feature.
  • Page 98 From the Windows desktop, right-click the My Network Places icon and select Properties to open the network connections window. Or in Windows 7, access the Network and Sharing Center in the Control Panel. 3-48 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 99 Select the Internet Protocol (TCP/IP) item from the list, and click the Properties button. Click the “Use the following IP address” box. Enter an IP address with the first three numbers the same as the IP address of the L60 relay and the last number different (in this example, 1.1.1.2).
  • Page 100 Minimum = 0ms, Maximum = 0ms, Average = 0 ms Pinging 1.1.1.1 with 32 bytes of data: verify the physical connection between the L60 and the computer, and double-check the programmed IP address in setting, then repeat step 2. Product Setup  Communications  Network  IP Address...
  • Page 101 If this computer is used to connect to the Internet, re-enable any proxy server settings after the computer has been disconnected from the L60 relay. Start the Internet Explorer software. Select the UR device from the EnerVista Launchpad to start EnerVista UR Setup. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 3-51...
  • Page 102 Click the Quick Connect button to open the window. Select the Ethernet interface and enter the IP address assigned to the L60, then click the Connect button. The EnerVista UR Setup software creates a site named “Quick Connect” with a corresponding device also named “Quick Connect”...
  • Page 103: Configure Serial Connection

    For the RS232 connection, a computer with an RS232 port and a serial cable are required. To use the RS485 port at the back of the relay, a GE Grid Solutions F485 converter (or compatible RS232-to-RS485 converter) is required. See the F485 instruction manual for details.
  • Page 104: Configure Ethernet Connection

    SEL-2032. This option enables display of a terminal window to allow interaction with the other device. 11. Click the Read Order Code button to connect to the L60 and upload the order code to the software. If a communications error occurs, ensure that the EnerVista software serial communications values entered in the previous step correspond to the relay setting values, and also ensure that the same IP address is not assigned to multiple L60 ports.
  • Page 105 12. If using a gateway to connect to the device, select Yes from the drop-down list. 13. Click the Read Order Code button to connect to the L60 device and upload the order code. If the device was entered already, a message displays "Device ’x’ is also using IP address.." If a communications error occurs, ensure that the values entered in the previous steps correspond to the relay setting values, and also ensure that the same IP address is not assigned to multiple L60 ports.
  • Page 106: Automatic Discovery Of Ur Devices

    When unable to connect because of an "ACCESS VIOLATION," access Device Setup and refresh the order code for the device. When unable to connect, ensure that the same IP address is not assigned to multiple L60 ports, for example under Settings > Product Setup > Communications > Network.
  • Page 107: Connect To The L60 In Enervista

    CHAPTER 3: INSTALLATION CONNECT TO THE L60 When multiple computers are connected to a L60 device, EnerVista settings windows are not updated automatically. They are refreshed when re-opened. If a user changes a setting on one computer, the other users need to refresh the display by closing and opening the settings window to see the change.
  • Page 108: Use Quick Connect Via The Front Panel Rs232 Port

    Connect a nine-pin to nine-pin RS232 serial cable to the computer and the front panel RS232 port. Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista DVD or online from http://www.gegridsolutions.com/multilin). See the software installation section if not already installed.
  • Page 109: Set Up Cybersentry And Change Default Password

    Connect" and displays them in the Online Window. Expand the sections to view data directly from the L60 device. Use the Device Setup button to change the site name. Each time that the EnerVista software is initialized, click the Quick Connect button to establish direct communications to the L60.
  • Page 110: Import Settings

    To apply the settings to a live device, drag-and-drop the device entry from the Offline Window area to its entry in the Online Window area. Individual settings also can be dragged and dropped between Online and Offline Window areas. The order codes much match. 3-60 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 111: Interfaces

    The EnerVista UR Setup software is provided with every L60. This chapter outlines the EnerVista software interface features. The EnerVista UR Setup Help File also provides details for getting started and using the software interface.
  • Page 112: Event Viewing

    IP Address IP Subnet Mask IP Routing When a settings file is loaded to a L60 that is in-service, the following sequence occurs: The L60 takes itself out of service. The L60 issues a UNIT NOT PROGRAMMED major self-test error.
  • Page 113: File Support

    Settings list / offline window area Software windows, with common tool bar Settings file data view windows, with common tool bar Workspace area with data view tabs Status bar 10. Quick action hot links L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 114: Protection Summary Window

    The Protection Summary is a graphical user interface to manage elements, such as enabling and disabling them. Access it under Settings > Protection Summary. See the Settings chapter for information on use. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 115: Settings Templates

    Right-click the selected device or settings file and select the Template Mode > Create Template option. The settings file template is now enabled and the file menus displayed in light blue. A message displays. The settings file is now in template editing mode. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 116 Figure 4-4: Settings template with all settings specified as locked Specify the settings to make viewable by clicking them. A setting available to view is displayed against a yellow background. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 117 Select an installed device or a settings file from the left menu of the EnerVista UR Setup window. Apply the template by selecting the Template Mode > View In Template Mode option. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 118 Once the template has been applied, users are limited to edit the settings specified by the template, but all settings are shown. The effect of applying the template to the phase time overcurrent settings is shown as follows. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 119: Secure And Lock Flexlogic Equations

    4.1.8.1 Lock FlexLogic equations To lock individual entries of a FlexLogic equation: Right-click the settings file or online device and select the Template Mode > Create Template item to enable the settings template feature. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 120 The effect of applying the template to the FlexLogic entries is shown here. Figure 4-10: Locking FlexLogic entries through settings templates The FlexLogic entries are also shown as locked in the graphical view and on the front panel display. 4-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 121 Right-click the setting file in the offline window area and select the Edit Device Properties item. The window opens. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-11...
  • Page 122: Settings File Traceability

    When a settings file is transferred to a L60 device, the date, time, and serial number of the L60 are sent back to EnerVista UR Setup and added to the settings file on the local computer. This information can be compared with the L60 actual values at any later date to determine if security has been compromised.
  • Page 123 With respect to the figure, the traceability feature is used as follows. The transfer date of a settings file written to a L60 is logged in the relay and can be viewed in the EnerVista software or the front panel display. Likewise, the transfer date of a settings file saved to a local computer is logged in the EnerVista software.
  • Page 124 4.1.9.2 Online device traceability information The L60 serial number and file transfer date are available for an online device through the actual values. Select the Actual Values > Product Info > Model Information menu item within the EnerVista online window as shown in the example.
  • Page 125: Front Panel Interface

    The front panel can be viewed and used in the EnerVista software, for example to view an error message displayed on the front panel. To view the front panel in EnerVista software: Click Actual Values > Front Panel. Figure 4-18: Front panel use in the software (C60 shown) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-15...
  • Page 126: Front Panel Keypad

    Conversely, continually pressing the MESSAGE left arrow from a setting value or actual value display returns to the header display. 4-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 127: Changing Settings

    Each numerical setting has its own minimum, maximum, and increment value associated with it. These parameters define what values are acceptable for a setting. FLASH MESSAGE For example, select the SETTINGS  PRODUCT SETUP  DISPLAY PROPERTIES  FLASH TIME: 10.0 s MESSAGE TIME setting.  L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-17...
  • Page 128 Repeat step 2 for the remaining characters: r,e,a,k,e,r, ,#,1. Press to store the text. ENTER If you have any problem, press to view context sensitive help. Flash messages appear sequentially for several HELP 4-18 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 129: Faceplate

    The faceplate is hinged to allow easy access to the removable modules. There is also a removable dust cover that fits over the faceplate that must be removed in order to access the keypad panel. The following figure shows the horizontal arrangement of the faceplate panel. Figure 4-21: Standard horizontal faceplate L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-19...
  • Page 130: Led Indicators

    LED indicator or target message, once the condition has been cleared (these RESET latched conditions can also be reset via the menu). SETTINGS  INPUT/OUTPUTS  RESETTING keys are used by the breaker control feature. USER 4-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 131 Support for applying a customized label beside every LED is provided. Default labels are shipped in the label package of every L60, together with custom templates. The default labels can be replaced by user-printed labels. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 132 ORed to turn on or off the phase A, B, or C LEDs. • VOLTAGE — Indicates voltage was involved • CURRENT — Indicates current was involved • FREQUENCY — Indicates frequency was involved 4-22 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 133 LED settings must be entered as shown in the User-programmable LEDs section of chapter 5. The LEDs are fully user-programmable. The default labels can be replaced by user-printed labels for both panels as explained in the next section. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-23...
  • Page 134: Custom Led Labeling

    Select the Front Panel Label Designer item from the Online Window or Offline Window area, for example under Settings > Front Panel Label Designer. If the option does not display, it means that the L60 does not have an enhanced front panel or that no customization is possible. The Online Window has the advantage of displaying the live fields as opposed to blank fields.
  • Page 135 Use the tool EXACTLY as outlined as follows, with the printed side containing the GE part number facing the user. The label package shipped with every L60 contains the three default labels, the custom label template sheet, and the label removal tool.
  • Page 136 Bend the tab at the center of the tool tail as shown. To remove the LED labels from the L60 enhanced front panel and insert the custom labels: Use the knife to lift the LED label and slide the label tool underneath. Ensure that the bent tabs are pointing away from the relay.
  • Page 137 Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown. To remove the user-programmable pushbutton labels from the L60 enhanced front panel and insert the custom labels: Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown. Ensure that the bent L60 LINE PHASE COMPARISON SYSTEM –...
  • Page 138 Remove the tool and attached user-programmable pushbutton label. Slide the new user-programmable pushbutton label inside the pocket until the text is properly aligned with the 4-28 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 139: Breaker Control

    4.2.9 Breaker control The L60 can interface with associated circuit breakers. In many cases the application monitors the state of the breaker, that can be presented on faceplate LEDs, along with a breaker trouble indication. Breaker operations can be manually initiated from the faceplate keypad or automatically initiated from a FlexLogic operand.
  • Page 140: Change Passwords

    When entering a settings or command password via EnerVista or any serial interface, the user must enter the corresponding connection password. If the connection is to the back of the L60, the remote password must be used. If the connection is to the RS232 port of the faceplate, the local password must be used.
  • Page 141: Invalid Password Entry

    By default, when an incorrect Command or Setting password has been entered via the faceplate interface three times within five minutes, the FlexLogic operand is set to “On” and the L60 does not allow settings or LOCAL ACCESS DENIED command level access via the faceplate interface for five minutes.
  • Page 142: Logic Diagrams

    Not. Negates/reverses the output, for example 0 becomes 1.  Connection  S, R Set, Reset Timer pickup. Triggered by the settings latch in the diagram. Timer reset. Triggered by the reset latch in the diagram. 4-32 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 143: Flexlogic Design And Monitoring Using Engineer

    Works with all UR firmware versions The figure shows an example where several inputs are used to trigger an output. With the OR function, any one of the inputs can trigger the output. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-33...
  • Page 144 This section explains how to use Engineer. It outlines the following topics: • Design logic • Send file to and from device • Monitor logic • View front panel • Generate connectivity report • Preferences 4-34 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 145: Design Logic

    Preparation — Under Settings > Inputs/Outputs > Virtual Outputs, virtual outputs 3 and 4 are named DLTrigger Top logic — Seven-minute timer trigger Bottom logic — Turn on LED 9 for 10 seconds when the trigger starts L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-35...
  • Page 146 This procedure uses input / output logic as an example. To create a logic diagram: In the Offline Window area, access Engineer for the device, then Logic Designer. If the device is not listed, right-click 4-36 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 147 Add the input blocks to the logic diagram. For example, click the I/O Tokens tab on the right, click the Input element, then click in the logic sheet to add it. Or drag-and-drop it. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-37...
  • Page 148 Line option. The cursor needs to be at the connection point to end the line, not elsewhere on the block. Note that the outline color is no longer red on the blocks. 4-38 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 149 The warning "input using disabled feature" means that input needs to be enabled. Double-click the block, click the View Associated Screen button, enable the setting, save, and recompile. The output and messages are explained in the next section. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-39...
  • Page 150 'Do not update IID file when updating SCL files') are updated. If the CID file is not already there, it is generated. The location of these files is C:\ProgramData\GE Power Management\urpc, for example, in the Offline and Online folders.
  • Page 151 The same timer is used in more than one place in the editor. This means (TIMER_ID, SheetReference) either the circuit that the Timer belongs to has been branched, or the Timer has been duplicated. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-41...
  • Page 152 Click the Ok button to save and exit from the window. In the logic diagram, select an element, then click in the drawing area to add it, click again to add a second box, and so on. 4-42 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 153 Optimization Summary. Changes also display when the FlexLogic Equation Editor is accessed. The logic diagram does not change. In the example shown, no lines were saved to free up space. Figure 4-45: Code optimization results L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-43...
  • Page 154 Type in the second text string box, or select any of the 32 previous searches from the drop-down list. Click the Search button. Any results display. The search applies to all tabs, not just the active tab. Double-click a search result to view the item. 4-44 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 155: Send File To And From Device

    When a window opens, select the device to which you want to send the file, then click the Send button and confirm. The order codes must match. The file is sent to the live device. Any errors can be viewed in the log file at the prompt. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-45...
  • Page 156: Monitor Logic

    (green box outline). In this case, the battery is weak and needs to be replaced. This can be viewed as the Replace Battery message on the front panel of the device and in the EnerVista software under Actual Values > Front Panel > Front Panel or Display/Keypad. 4-46 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 157: View Front Panel And Print Labels

    To save the report and labels, click File > Save As, enter a file name, and select the FPR, JPG, or PDF format. Use the instructions in the second tab of the window to add the labels to the physical device. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-47...
  • Page 158: Generate Connectivity Report

    View > Toolbar > Advanced Actions — Active when in Logic Designer. Toggles a toolbar to nudge, rotate, flip, or change the order of an element. View > Show Unused Pins — Enable to display unconnected pins. Disable to eliminate unconnected pins from the view, for example when printing. 4-48 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 159 File Information The text entered here displays at the bottom right of a diagram when printing, provided that the Show Title Block option is enabled. Note the option to change the logo from the GE logo to your company logo. Display The panel sets how the element boxes display.
  • Page 160 The software displays the color specified when an element is on. There is no color when the element is off. The software displays another color when the status cannot be determined and is unknown. 4-50 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 161 Options display for filtering, such as recording timing for Virtual Inputs and Outputs, but not Communications Status. 4.4.6.4 COMTRADE waveforms Waveform files are viewable in the EnerVista software. The preferences are unrelated to Engineer and are outlined in the UR Family Communications Guide. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-51...
  • Page 162: Toolbars

    4.4.7.2 Token Toolbox Drawing Tools Draw a line. Click and drag to draw. Draw multiple joined lines. Click and drag for each line. Double-click to finish. 4-52 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 163 Input from another UR device. Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and cannot be used simultaneously. Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and cannot be used simultaneously. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-53...
  • Page 164 Tag-In can is used to reference an existing Tag-Out. It joins another diagram to a previous diagram. Boolean Tokens These symbols are used to create FlexLogic Equations. Use them as intermediate logic for the Virtual Output equations. The display can vary from that shown here. 4-54 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 165 Place a positive one shot and a negative one shot symbol in the Logic Designer diagram Place a timer in the Logic Designer diagram Elements These blocks configure properties of the element or use element operands as input to FlexLogic equations. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-55...
  • Page 166 Set the width of the selected components to the same width as the reference component Same Height Set the height of the selected components to the same height as the reference component 4-56 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 167 Front, Back Moves current components to the absolute front or back of all viewable layers Forward, Backward Moves current components on layer higher or lower than its original layer hierarchy L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 4-57...
  • Page 168 FLEXLOGIC DESIGN AND MONITORING USING ENGINEER CHAPTER 4: INTERFACES 4-58 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 169: Settings

       OSCILLOGRAPHY See page 5-100    DATA LOGGER See page 5-102    DEMAND See page 5-103    USER-PROGRAMMABLE See page 5-105   LEDS L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 170  SETTING GROUP 2     SETTING GROUP 3    SETTING GROUP 4    SETTING GROUP 5    SETTING GROUP 6    L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 171 Range: Disabled, Isolated, Forcible   TESTING FUNCTION: Disabled See page 5-356 TEST MODE FORCING: Range: FlexLogic operand   See page 5-356  FORCE CONTACT See page 5-357   INPUTS L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 172: Overview

    For wye-connected VTs, the primary and secondary base quantities are as before, but the secondary voltage setting (here a phase-to-ground value) is: Eq. 5-2 Many settings are common to most elements, outlined as follows: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 173: Introduction To Ac Sources

    5.2.2.1 Background The L60 is ordered with two CT/VT modules. If two breakers are involved in an application, the current must be summed externally. With two CT/VT modules, the L60 allows the connection of two breaker CTs directly to the relay, processing the currents individually for some functions and summing them for other functions by employing the sources mechanism.
  • Page 174 Sources, in the context of L60 relays, refer to the logical grouping of current and voltage signals such that one source contains all the signals required to measure the load or fault in a particular power apparatus. A given source can contain all or some of the following signals: three-phase currents, single-phase ground current, three-phase voltages and an auxiliary voltages from a single-phase VT for checking for synchronism.
  • Page 175 Upon startup, the CPU configures the settings required to characterize the current and voltage inputs, and it displays them in the appropriate section in the sequence of the banks (as described earlier) as follows for a maximum configuration: F1, F5, L1, L5, S1, and S5. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 176: Product Setup

    To reset the unit after a lost password: Email GE customer service at multilin.tech@ge.com with the serial number and using a recognizable corporate email account. Customer service provides a code to reset the relay to the factory defaults.
  • Page 177 When entering a settings or command password via EnerVista or any serial interface, the user must enter the corresponding connection password. If the connection is to the back of the L60, the remote password must be used. If the connection is to the RS232 port of the faceplate, the local password must be used.
  • Page 178 Enter the new password in the New Password field. Requirements are outlined in the Password Requirements section earlier in this chapter. When an original password has already been used, enter it in the Enter Password field and click 5-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 179 INVALID ATTEMPTS BEFORE LOCKOUT The L60 provides a means to raise an alarm upon failed password entry. If password verification fails while accessing a password-protected level of the relay (either settings or commands), the FlexLogic operand is UNAUTHORIZED ACCESS asserted.
  • Page 180 ACCESS AUTH TIMEOUT immediately denied. If access is permitted and an off-to-on transition of the FlexLogic operand is detected, the timeout is restarted. The status of this timer updates every five seconds. 5-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 181 It is disabled by default to allow access to the device immediately after installation. When security is disabled, all users have administrator access. GE recommends enabling the EnerVista security before placing the device in service. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 182 If you force password entry by using this feature, ensure that you know the Administrator password. If you do not know the password and are locked out of the software, contact GE Grid Solutions for the default password of a UR device.
  • Page 183 The EnerVista security management system must be enabled (the Enable Security check box enabled) To modify user privileges: Select the Security > User Management item from the top menu to open the user management window. Locate the username in the User field. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-15...
  • Page 184 This feature requires a CyberSentry software option. See the Order Codes section in chapter 2 for details. The EnerVista software provides the means to configure and authenticate the L60 access using either a server or the device. Access to functions depends on user role.
  • Page 185 When the "Device" button is selected, the L60 uses its local authentication database and not the RADIUS server to authenticate the user. In this case, it uses built-in roles (Administrator, Engineer, Supervisor, Operator, Observer, or Administrator and Supervisor when Device Authentication is disabled), as login accounts and the associated passwords are stored on the L60 device.
  • Page 186 Figure 5-3: Security panel when CyberSentry installed For the Device > Settings > Product Setup > Supervisory option, the panel looks like the following. Figure 5-4: Supervisory panel For the Security panel, the following settings are available. 5-18 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 187 Administrator is to re-enable Device authentication when Device authentication is disabled. To re-enable Device authentication, the Supervisor unlocks the device for setting changes, and then the Administrator can re- enable Device authentication. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-19...
  • Page 188 Range: Administrator, Engineer, Supervisor,   None Operator, Factory (for factory use only), None  CHANGE LOCAL See page 5-21   PASSWORDS  SESSION See page 5-22   SETTINGS 5-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 189 • Observer — This role has read-only access to all L60 settings. This role allows unlimited concurrent access but it has no download access to any files on the device. Observer is the default role if no authentication has been done to the device.
  • Page 190 In Device authentication mode, the Observer role does not have a password associated with it. In Server authentication mode the Observer role requires a password. If you are locked out of the software, contact GE Grid Solutions for the default password. When using CyberSentry, the default password is "ChangeMe1#".
  • Page 191 SETTINGS  PRODUCT SETUP  SECURITY  SUPERVISORY  SELF TESTS  SELF TESTS  FAILED See below    AUTHENTICATE FIRMWARE LOCK: Range: Enabled, Disabled  Enabled SETTINGS LOCK: Range: Enabled, Disabled  Enabled L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-23...
  • Page 192 After making any required changes, log out. When changing settings offline, ensure that only settings permitted by the role that performs the settings download are changed because only those changes are applied. 5-24 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 193 Clear Energy command (not applicable to all UR products) Clear Unauthorized Access command Clear Teleprotection Counters command (not applicable to all UR products) Clear All Relay Records command Role Log in Role Log off L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-25...
  • Page 194: Display Properties

    PRODUCT SETUP CHAPTER 5: SETTINGS In addition to supporting syslog, a L60 with CyberSentry also saves the security events in two local security files, these being SECURITY_EVENTS.CSV and SETTING_CHANGES.LOG. Details on these files and how to retrieve them are available in the EnerVista software under Maintenance >...
  • Page 195 Some customers prefer very low currents to display as zero, while others prefer the current to display even when the value reflects noise rather than the actual signal. The L60 applies a cut-off value to the magnitudes and angles of the measured currents.
  • Page 196: Clear Relay Records

    Selected records can be cleared from user-programmable conditions with FlexLogic operands. Assigning user- programmable pushbuttons to clear specific records is a typical application for these commands. Since the L60 responds to rising edges of the configured FlexLogic operands, they must be asserted for at least 50 ms to take effect.
  • Page 197: Communications

    Range: 0 to 1000 ms in steps of 10  MIN TIME: 0 ms , and — The L60 is equipped with two independent serial communication RS232 BAUD RATE RS485 COM2 BAUD RATE PARITY ports. The faceplate RS232 port is intended for local use and has two options for baud rate. The rear COM2 port is RS485 and has settings for baud rate and parity.
  • Page 198 5.3.4.3 Ethernet network topology The L60 has three Ethernet ports. Each Ethernet port must belong to a different network or subnetwork. Configure the IP address and subnet to ensure that each port meets this requirement. Two subnets are different when the bitwise AND operation performed between their respective IP address and mask produces a different result.
  • Page 199 SCADA is provided through LAN2. P2 and P3 are connected to LAN2, where P2 is the primary channel and P3 is the redundant channel. In this configuration, P3 uses the IP and MAC addresses of P2. Figure 5-6: Multiple LANs, with redundancy L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-31...
  • Page 200 IP addresses and mask. Configure the network IP and subnet settings before configuring the routing settings. To obtain a list of all port numbers used, for example for audit purposes, contact GE technical support with substantiating information, such as the serial number and order code of your device.
  • Page 201 2 is performed. The delay in switching back ensures that rebooted switching devices connected to the L60, which signal their ports as active prior to being completely functional, have time to completely initialize themselves and become active. Once port 2 is active again, port 3 returns to standby mode.
  • Page 202 UR 7 redundancy Failover is selected for redundancy. 5.3.4.6 Parallel Redundancy Protocol (PRP) The L60 is provided with optional PRP capability. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
  • Page 203 Host routes are not supported at present. The routing table configuration is available on the serial port and front panel. This is a deliberate decision, to avoid loss of connectivity when remotely configuring the L60. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-35...
  • Page 204 Starting with UR 7.10, up to six static network routes can be configured in addition to a default route. The default route configuration was also moved from the network settings into the routing section. The figure shows an example of topology that benefits from the addition of static routes. 5-36 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 205 Show routes and ARP tables This feature is available on the Web interface, where the main menu contains an additional Communications menu and two submenus: • Routing Table • ARP Table L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-37...
  • Page 206 0 disables Modbus over TCP/IP, meaning closes the Modbus TCP port. When the port number is changed to 0, the change takes effect when the L60 is restarted. When it is set to 0, use the front panel or serial port to communicate with the relay.
  • Page 207  DNP PROTOCOL  DNP CHANNELS See below    DNP ADDRESS: Range: 0 to 65535 in steps of 1   DNP NETWORK See below   CLIENT ADDRESSES L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-39...
  • Page 208 Range: 1, 2, 5, 6  DEFAULT VARIATION: 1 DNP OBJECT 21 Range: 1, 2, 9, 10  DEFAULT VARIATION: 1 DNP OBJECT 22 Range: 1, 2, 5, 6  DEFAULT VARIATION: 1 5-40 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 209 DNP ADDRESS unique address to each DNP slave. The L60 can specify a maximum of five clients for its DNP connections. These are IP addresses for the controllers to which the L60 can connect. The settings follow. SETTINGS  PRODUCT SETUP  COMMUNICATIONS  DNP PROTOCOL  DNP NETWORK CLIENT ADDRESSES ...
  • Page 210 DNP TCP connection for greater than the time specified by this setting, the connection is aborted by the L60. This frees up the connection to be re-used by a client. Any change takes effect after cycling power to the relay.
  • Page 211 60870-5-104 point lists must be in one continuous block, any points assigned after the first “Off” point are ignored. 5.3.4.12 IEC 61850 protocol The L60 is provided with optional IEC 61850 communications. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
  • Page 212 The maximum number of simultaneous clients supported by the UR family is five. EnerVista setup for IEC 61850 The EnerVista UR Setup software provides the interface to configure L60 settings for the IEC 61850 protocol. This section describes this interface. The software also supports import/export and merging of IEC 61850 Substation Configuration Language (SCL) files as documented in the UR Family Communications Guide.
  • Page 213 Figure 5-11: IEC 61850 panel Opening the IEC 61850 window while online causes the UR Setup software to retrieve and import an SCL file from the L60. This System Configuration Description (SCD) file contains all the settings in the UR at the time of the file request, both those that are mapped into the IEC 61850 information model (that is, the "public"...
  • Page 214 When the Save button is clicked in the online IEC 61850 window, UR Setup software prepares a configured IED description (CID) file containing all the settings of the UR and sends the CID file to the L60. Upon receipt, the L60 checks the CID file for correctness, going out of service, then back into service when the CID file is accepted.
  • Page 215 Default: TEMPLATE The value entered sets the IED name used by IEC 61850 for the L60. An IED name unique within the network must be entered for proper operation. Valid characters are upper and lowercase letters, digits, and the underscore (_) character.
  • Page 216 Range: status-only, direct-with-normal-security, sbo-with-normal-security Default: sbo-with-normal-security This setting specifies the control service that clients must use to control the TEST MODE FUNCTION of the L60. An "on" control to <LDName>/LLN0.Mod changes TEST MODE FUNCTION to Disabled, an "on-blocked" control changes it to Forcible, and a "test/blocked"...
  • Page 217 Protection logical device has been set to instance name "Prot", the function-related name "Feeder1Prot" and the configuration revision "2016-03-07 08:46." The text is clipped on the right if the line is longer than the available width. The next paragraphs explain how to do this setup. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-49...
  • Page 218 Figure 5-15: Menu for logical node If the insert option is selected, or the edit option is selected for other than the Master logical device, a logical device parameters edit dialog opens. 5-50 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 219 Each logical device inst name is required to be unique within the device, and it cannot be blank. Also, if the corresponding functional ldName setting is blank, the concatenation of the IED name and the logical device L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-51...
  • Page 220 The UR increments the value of paramRev by one whenever one or multiple setting changes occurs in one Modbus write request by any means (front panel, Modbus, or MMS) other than by SCL file 5-52 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 221 Routable GOOSE (R-GOOSE) is supported in firmware release 7.4 and later. Routable GOOSE allows UR and other devices to be located in separate networks. Encryption/decryption of messages is performed by a separate gateway device. Messages are routed using a separate router, using IP addresses. Note the following behavior: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-53...
  • Page 222 The UR does not implement the Fixed-Length encoded GOOSE messages option specified in IEC 61850-8-1:2011 clause A.3; the UR always uses the ASN.1 Basic encoding rules (as specified in ISO/IEC 8825-1) as specified in IEC 61850 edition 1.0 and as optional in IEC 61850 edition 2.0. 5-54 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 223 TxGOOSE1 messages from other GOOSE messages. <LDName> is a syntactic variable that is set to the value of setting Master functional ldName if one or more characters have been entered to that setting, otherwise the value of setting IED NAME suffixed with "Master". L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-55...
  • Page 224 Network devices can forward a message with a higher priority value before a message with a lower priority value, which speeds delivery of high-priority messages in heavily loaded networks. The standard recommends that higher-priority messages, such as GOOSE, have priority values in the range of 4 to 7. 5-56 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 225 Range: 1 to 60 s in steps of 1 s Default: 60 s This setting specifies the time interval between heartbeat messages, meaning messages that are sent periodically while no events are detected. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-57...
  • Page 226 61850-90-5 R GOOSE service can be subscribed to. The UR accepts both the variable length encoded GOOSE messages specified IEC 61850 8 1:2004 and the Fixed-Length encoded GOOSE messages as specified in IEC 61850 8 1:2011 clause A.3. 5-58 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 227 If the publisher is a UR 7.3x series device, this setting needs match the value of the publisher's TxGOOSE GoID setting. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-59...
  • Page 228 <GoCBName> is the name of the publishing control block. The L60 translates the ACSI format required for this setting to the MMS format used in GOOSE messages: <LDName>/LLN0$GO$<GoCBName> If the publisher is a UR 7.3x or 7.40 series device, <LDName> is the value of the publisher's Master functional ldName setting if that setting is not empty, otherwise it is the value of the publisher's IED NAME suffixed with "Master".
  • Page 229 If the publisher is a UR 7.3x or 7.40 series device, set these settings to match the basic type of the members of the publisher's data set selected by the publisher's TxGOOSE datSet setting. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-61...
  • Page 230 SCD (supported in version 7.40 and later). When the file format is SCD, the system lists all IEDs inside the SCD file and lets the user select the ones to add. The figure shows a selection being made by importing a CID file using the Add IED function. 5-62 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 231 This setting selects the logic state for the RxGOOSE Boolean1 FlexLogic operand if the UR has just completed startup and the selected RxGOOSE has not yet received a message, or the selected RxGOOSE has lost its connectivity with the publisher. The following choices are available: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-63...
  • Page 232 Default: None This setting selects the GOOSE message containing the value that drives the RxGOOSE DPS1 FlexLogic operand. If set to None, the RxGOOSE DPS1 FlexLogic operand assumes its default state. 5-64 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 233 (supported in version 7.40 and later). When the file format is SCD, the system lists all IEDs inside the SCD file and lets the user select the ones to add. Figure 5-23: RxGOOSE Analog Inputs panel There are 32 RxGOOSE analog inputs. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-65...
  • Page 234 Range: 0.000 to 1000000000.000 in steps of 0.001 Default: 1.000 This setting specifies the per-unit base value for other L60 features to use with the RxGOOSE Analog1 operand. A FlexElement for instance subtracts two quantities after converting their values to integers rescaled to a common base, the common base being the largest of the base values of the two quantities.
  • Page 235 RptEna attribute is false. Buffered and unbuffered reports Navigate to Settings > Product Setup > Communications > IEC 61850 > Reports > Buffered Reports or Unbuffered Reports. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-67...
  • Page 236 Also, the control block can be configured to send integrity reports containing the present value of all members either on demand from the client or periodically. A TCP handshaking mechanism causes messages that are not read and acknowledged by the client to be retransmitted. 5-68 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 237 Control blocks and data sets can be pre-configured by sending the L60 a CID file. See the UR Family Communications Guide for details. EnerVista UR Setup also can be used to select the data set members and to pre-configure the control blocks.
  • Page 238 This setting selects the data set whose members' status is reported in Unbuffered Report1 messages using the UR Setup software designator for the data set. The IEC 61850 name of the data sets are configured in the Datasets panel, as described later. 5-70 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 239 DataSets Navigate to Settings > Product Setup > Communications > IEC 61850 > DataSets. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-71...
  • Page 240 The DataSet name is not copied or pasted. In short, use this feature to copy a DataSet Member setting and paste it into another Member setting, a text file, or Word, as examples. 5-72 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 241 Select the member from the drop-down list. Or right-click an entry to copy, paste, delete, or insert. Product setup Navigate to Settings > Product Setup > Communications > IEC 61850 > Product Setup. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-73...
  • Page 242 Deadband parameters of measured values related to the Energy metering are configured here. Real Time Clock Navigate to Settings > Product Setup > Communications > IEC 61850 > Product Setup > Real Time Clock. 5-74 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 243 However, a tabulation of the analog values and their associated deadband setting can be found in the UR Family Communications Guide. Figure 5-30: Deadband settings with .db suffix L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-75...
  • Page 244 Navigate to Settings > Communications > IEC 61850 > System Setup > Breakers > Breaker 1 to access the settings that configure the IEC 61850 protocol interface with the first breaker control and status monitoring element. The settings and functionality for the others are similar. 5-76 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 245 SelectWithValue or Operate service with ctlVal true and with Check.Interlock-check true is requested of either BkrCSWI1.Pos or Bkr0XCBR1.Pos and the selected operand is not activated, a Negative Response (-Rsp) is issued with the REASON CODE of Blocked-by-interlocking. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-77...
  • Page 246 This setting specifies the maximum time between an operate command to breaker 1 via BkrCSWI1.Pos until BkrCSWI1.Pos.stVal enters the commanded state. The command terminates if the commanded state is not reached in the set time. 5-78 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 247 If a SelectWithValue or Operate service with ctlVal true and with Check.Interlock-check true is requested of DiscCSWI1.Pos or Disc0XSWI1.Pos and the selected operand is not activated, a Negative Response (-Rsp) is issued with the REASON CODE of Blocked-by-interlocking. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-79...
  • Page 248 > System Setup section later. These signals force a disconnect switch trip or close control while the operand selected by setting XSWI1 ST.LOC OPERAND is not active. "sbo" here is select-before-operate. Enhanced security means that the L60 reports to the client the disconnect switch 1 position the end of the command sequence.
  • Page 249 Navigate to Settings > Product Setup > Communications > IEC 61850 > Settings for Commands to access the settings that configure the IEC 61850 protocol interface for record clear commands. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-81...
  • Page 250 This setting selects the control model clients must use to successfully control the command CLEAR FAULT REPORTS. "sbo" here is select-before-operate. Enhanced security means that the L60 reports to the client the breaker 1 position at the end of the command sequence.
  • Page 251 Virtual Inputs are controllable FlexLogic operands that can be controlled via IEC 61850 commands to GGIO2, by DNP, by Modbus, and by the UR front panel. The settings related to these IEC 61850 commands are described here. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-83...
  • Page 252 Navigate to Settings > Product Setup > Communications > IEC 61850 > GGIO > GGIO4 > GGIO4.AnIn1 to access the settings for the first GGIO4 value. The settings and functionality for the others are similar. 5-84 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 253 <LDName>/GGIO4.AnIn01.instMag.f. This setting is stored as an IEEE 754 / IEC 60559 floating point number. Because of the large range of this setting, not all possible values can be stored. Some values are rounded to the closest possible floating point number. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-85...
  • Page 254 CHAPTER 5: SETTINGS File transfer by IEC 61850 The L60 supports file transfer by IEC 61850. The approach is as follows, using the SISCO AX-S4 61850 client software as an example. In the AX-S4 61850 Explorer window, click the Tools menu and access the SISCO File Transfer Utility.
  • Page 255 NUMBER: 0 The Trivial File Transfer Protocol (TFTP) can be used to transfer files from the L60 over a network. The L60 operates as a TFTP server. TFTP client software is available from various sources, including Microsoft Windows NT. The dir.txt file obtained from the L60 contains a list and description of all available files, for example event records and oscillography.
  • Page 256 0.0.0.0 The L60 can specify a maximum of five clients for its IEC 104 connections. These are IP addresses for the controllers to which the L60 can connect. A maximum of two simultaneous connections are supported at any given time.
  • Page 257 PTP, or SNTP, its time is overwritten by these three sources, if any of them is active. If the synchronization timeout occurs and none of IRIG-B, PTP, or SNTP is active, the L60 sets the invalid bit in the time stamp of a time-tagged message.
  • Page 258 Spontaneous transmission occurs as a response to cyclic Class 2 requests. If the L60 wants to transmit Class 1 data at that time, it demands access for Class 1 data transmission (ACD=1 in the control field of the response).
  • Page 259 FlexAnalog operands. The measurands sent are voltage, current, power, power factor, and frequency. If any other FlexAnalog is chosen, the L60 sends 0 instead of its value. Note that the power is transmitted in KW, not W. Measurands are transmitted as ASDU 3 or ASDU 9 (type identification value set to measurands I, respectively measurands II).
  • Page 260 Vt = 0.006 * 1200000 - 4096 = 7200 - 4096 = 3104 SETTINGS  PRODUCT SETUP  COMMUNICATIONS  IEC 60870-5-103  IEC103 COMMANDS  IEC103 COMMANDS  COMMAND 0 See below     COMMAND 1    5-92 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 261: Modbus User Map

    Commands are received as General Command (Type Identification 20). The user can configure the action to perform when an ASDU command comes. A list of available mappings is provided on the L60. This includes 64 virtual inputs (see the following table). The ON and OFF for the same ASDU command can be mapped to different virtual inputs.
  • Page 262: Real-time Clock

    Setup for IRIG-B is illustrated in the Installation chapter. For the Other protocols, whenever a time synchronization message is received through any of the active protocols, the L60 clock updates. However, given that IEC 60870-5-103, IEC 60870-5-104, Modbus, and DNP are low-accuracy time synchronization methods, avoid their use for synchronization when better accuracy time protocols, such as IRIG-B and PTP, are active in the system.
  • Page 263 See the Order Codes section in chapter 2 for details. The L60 supports the Precision Time Protocol (PTP) specified in IEEE Std 1588 2008 using the Power Profile (PP) specified in IEEE Std C37.238 2011. This enables the relay to synchronize to the international time standard over an Ethernet network that implements PP.
  • Page 264 When a clock on start-up discovers that it is “better” than the present grandmaster, it assumes the grandmaster role and the previous grandmaster reverts to slave. The L60 qualification mechanism accepts a potential master clock as a new grandmaster, when in a four-second interval it has received three announce messages from it, all better than the present grandmaster clock and better than any other announce in this interval.
  • Page 265 L60 clock is closely synchronized with the SNTP/ NTP server. It takes up to two minutes for the L60 to signal an SNTP self-test error if the server is offline.
  • Page 266: Fault Reports

     2:00 The L60 maintains two times: local time and Universal Coordinated Time (UTC). Local time can be provided by IRIG-B signals. UTC time is provided by SNTP servers. The real-time clock (RTC) and time stamps reported in historical records and communication protocols can be incorrect if the Local Time settings are not configured properly.
  • Page 267 MAG: 0.00 Ω The L60 relay supports one fault report and an associated fault locator per CT bank to a maximum of two. The signal source and trigger condition, as well as the characteristics of the line or feeder, are entered in this menu.
  • Page 268: Oscillography

    Range: FlexLogic operand  AC INPUT WAVEFORMS: Range: Off; 8, 16, 32, 64 samples/cycle  16 samples/cycle  DIGITAL CHANNELS See below    ANALOG CHANNELS See below   5-100 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 269 — This setting selects the FlexLogic operand state recorded in an oscillography trace. The length of DIGITAL 1(63) CHANNEL each oscillography trace depends in part on the number of parameters selected here. Parameters set to “Off” are ignored. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-101...
  • Page 270: Data Logger

    The relay automatically partitions the available memory between the channels in use. The following table outlines examples of storage capacities for a system frequency of 60 Hz. 5-102 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 271: Demand

    SETTINGS  PRODUCT SETUTP  DEMAND  DEMAND CRNT DEMAND METHOD: Range: Thermal Exponential, Block Interval, Rolling  Thermal Exponential Demand  POWER DEMAND METHOD: Range: Thermal Exponential, Block Interval, Rolling  Thermal Exponential Demand L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-103...
  • Page 272 Start Demand Interval logic input pulses. Each new value of demand becomes available at the end of each pulse. Assign a FlexLogic operand to the setting to program the input for the new DEMAND TRIGGER demand interval pulses. 5-104 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 273: User-programmable Leds

    LEDs. This test checks for hardware failures that lead to more than one LED being turned off from a single logic point. This stage can be interrupted at any time. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-105...
  • Page 274 Configure the LED test to recognize user-programmable pushbutton 1 by making the following entries in the SETTINGS  menu: PRODUCT SETUP  USER-PROGRAMMABLE LEDS  LED TEST : “Enabled” LED TEST FUNCTION “PUSHBUTTON 1 LED TEST CONTROL ON” 5-106 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 275 “Latched,” the LED, once lit, remains so until reset by the faceplate button, from a remote device via a RESET communications channel, or from any programmed operand, even if the LED operand state de-asserts. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-107...
  • Page 276: User-programmable Self-tests

    Moreover, they do not trigger the ANY MINOR ALARM or ANY SELF-TEST messages. When in Enabled mode, minor alarms continue to function along with other major and minor alarms. See the Relay Self-tests section in chapter 7 for information on major and minor self-test alarms. 5-108 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 277: Control Pushbuttons

    The location of the control pushbuttons are shown in the following figures. Figure 5-43: Control pushbuttons (enhanced faceplate) An additional four control pushbuttons are included on the standard faceplate when the L60 is ordered with the 12 user- programmable pushbutton option.
  • Page 278: User-programmable Pushbuttons

    Disabled PUSHBTN 1 AUTORST Range: 0.2 to 600.0 s in steps of 0.1  DELAY: 1.0 s PUSHBTN 1 REMOTE: Range: FlexLogic operand  PUSHBTN 1 LOCAL: Range: FlexLogic operand  5-110 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 279  EVENTS: Disabled The L60 is provided with this optional feature, specified as an option at the time of ordering. Using the order code for your device, see the order codes in chapter 2 for details. User-programmable pushbuttons provide an easy and error-free method of entering digital state (on, off) information. The number of available pushbuttons is dependent on the faceplate module ordered with the relay.
  • Page 280 — This setting specifies the top 20-character line of the user-programmable message and is intended to PUSHBTN 1 ID TEXT provide ID information of the pushbutton. See the User-definable Displays section for instructions on how to enter alphanumeric characters from the keypad. 5-112 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 281 “High Priority” or “Normal.” MESSAGE — If this setting is enabled, each pushbutton state change is logged as an event into the event PUSHBUTTON 1 EVENTS recorder. The figures show the user-programmable pushbutton logic. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-113...
  • Page 282 PRODUCT SETUP CHAPTER 5: SETTINGS Figure 5-48: User-programmable pushbutton logic (Sheet 1 of 2) 5-114 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 283: Flex State Parameters

    16 states are readable in a single Modbus register. The state bits can be configured so that all states of interest are available in a minimum number of Modbus registers. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-115...
  • Page 284: User-definable Displays

    Range: up to 20 alphanumeric characters  DISP 1 ITEM 1: Range: 0 to 65535 in steps of 1   DISP 1 ITEM 5: Range: 0 to 65535 in steps of 1  5-116 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 285 If the parameters for the top line and the bottom line items have the same units, then the unit is displayed on the bottom line only. The units are only displayed on both lines if the units specified both the top and bottom line items are different. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-117...
  • Page 286: Direct Inputs And Outputs

    DIRECT OUTPUT DEVICE ID messages. All UR-series IEDs in a ring need to have unique numbers assigned. The IED ID is used to identify the sender of the direct input and output message. 5-118 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 287 DIRECT I/O DATA RATE setting applies to a L60 with dual-channel communication cards and allows crossing DIRECT I/O CHANNEL CROSSOVER over messages from channel 1 to channel 2. This places all UR-series IEDs into one direct input and output network regardless of the physical media of the two communication channels.
  • Page 288 DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 2: DIRECT OUTPUT DEVICE ID: “2” DIRECT I/O CH1 RING CONFIGURATION: “Yes” DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 3: 5-120 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 289 A permissive pilot-aided scheme can be implemented in a two-ring configuration, shown as follows (IEDs 1 and 2 constitute a first ring, while IEDs 2 and 3 constitute a second ring). L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-121...
  • Page 290 In this application, apply the following settings. For UR-series IED 1: DIRECT OUTPUT DEVICE ID: “1” DIRECT I/O CH1 RING CONFIGURATION: “Yes” DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 2: 5-122 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 291 EVENTS: Disabled The L60 checks integrity of the incoming direct input and output messages using a 32-bit CRC. The CRC alarm function is available for monitoring the communication medium noise by tracking the rate of messages failing the CRC check. The monitoring function counts all incoming messages, including messages that failed the CRC check.
  • Page 292: Teleprotection

     EVENTS: Disabled The L60 checks integrity of the direct input and output communication ring by counting unreturned messages. In the ring configuration, all messages originating at a given device should return within a pre-defined period of time. The unreturned messages alarm function is available for monitoring the integrity of the communication ring by tracking the rate of unreturned messages.
  • Page 293: Installation

    Range: 1 to 65000 A in steps of 1  PRIMARY:  PHASE CT F1 Range: 1 A, 5 A  SECONDARY: 1 A GROUND CT F1 Range: 1 to 65000 A in steps of 1  PRIMARY: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-125...
  • Page 294 SRC 4 = F1 + L1 Eq. 5-7 where L60 allows CT bank summation in SRC 3 or 4. 1 pu is the highest primary current. In this case, 1000 is entered and the secondary current from the 500:1 ratio CT is adjusted to that created by a 1000:1 CT before summation.
  • Page 295: Power System

    FREQUENCY TRACKING frequency applications. The frequency tracking feature functions only when the L60 is in the “Programmed” mode. If the L60 is “Not Programmed,” then metering values are available but can exhibit significant errors. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 296: Signal Sources

    When two CTs are connected and configured with these settings, it is imperative that the CT rated secondary current is identical for both CTs (that is, both CTs are 1 A rated or both CTs are 5 A rated). 5-128 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 297 PRODUCT SETUP  DISPLAY PROPERTIES  CURRENT CUT-OFF LEVEL accordingly. 5.4.3.4 Example for use of sources An example of the use of sources is shown in the following figure. A relay can have the following hardware configuration: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-129...
  • Page 298: Breakers

     BREAKER 1 BREAKER 1 Range: Disabled, Enabled  FUNCTION: Disabled  BREAKER1 PUSH BUTTON Range: Disabled, Enabled  CONTROL: Disabled BREAKER 1 NAME: Range: up to six alphanumeric characters  Bkr 1 5-130 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 299 1. The number of breaker control elements depends on the number of CT/VT modules specified with the L60. The following settings are available for each breaker control element.
  • Page 300 MANUAL CLOSE RECAL1 TIME operator has initiated a manual close command to operate a circuit breaker. — Selects an operand indicating that breaker 1 is out-of-service. BREAKER 1 OUT OF SV 5-132 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 301 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-59: Dual breaker control logic (Sheet 1 of 2) IEC 61850 functionality is permitted when the L60 is in “Programmed” mode and not in local control mode. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-133...
  • Page 302 IEC 61850 trip and close commands shown is one protection pass only. To maintain the close/ open command for a certain time, do so on the contact outputs using the "Seal-in" setting, in the Trip Output element, or in FlexLogic. 5-134 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 303: Disconnect Switches

    — This setting selects an operand that prevents opening of the disconnect switch. This setting can be SWITCH 1 BLK OPEN used for select-before-operate functionality or to block operation from a panel switch or from SCADA. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-135...
  • Page 304 This allows for non-simultaneous operation of the poles. IEC 61850 functionality is permitted when the L60 is in “Programmed” mode and not in local control mode. 5-136 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 305 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-61: Disconnect switch logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-137...
  • Page 306: Flexcurves

    0.48 0.88 15.5 0.50 0.90 16.0 0.52 0.91 16.5 0.54 0.92 17.0 0.56 0.93 17.5 0.58 0.94 18.0 0.60 0.95 18.5 0.62 0.96 19.0 0.64 0.97 19.5 0.66 0.98 10.0 20.0 5-138 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 307 30 ms. At approximately four times pickup, the curve operating time is equal to the MRT and from then onwards the operating time remains at 200 ms. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-139...
  • Page 308 Configuring a composite curve with an increase in operating time at increased pickup multiples is not allowed. If this is attempted, the EnerVista software generates an error message and discards the proposed changes. 5.4.6.5 Standard recloser curves The following graphs display standard recloser curves available for the L60. 5-140 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 309 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-65: Recloser curves GE101 to GE106 Figure 5-66: Recloser curves GE113, GE120, GE138, and GE142 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-141...
  • Page 310 SYSTEM SETUP CHAPTER 5: SETTINGS Figure 5-67: Recloser curves GE134, GE137, GE140, GE151, and GE201 Figure 5-68: Recloser curves GE131, GE141, GE152, and GE200 5-142 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 311 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-69: Recloser curves GE133, GE161, GE162, GE163, GE164, and GE165 Figure 5-70: Recloser curves GE116, GE117, GE118, GE132, GE136, and GE139 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-143...
  • Page 312 SYSTEM SETUP CHAPTER 5: SETTINGS Figure 5-71: Recloser curves GE107, GE111, GE112, GE114, GE115, GE121, and GE122 Figure 5-72: Recloser curves GE119, GE135, and GE202 5-144 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 313: Flexlogic

    Figure 5-73: UR architecture overview The states of all digital signals used in the L60 are represented by flags (or FlexLogic operands, which are described later in this section). A digital “1” is represented by a set flag. Any external contact change-of-state can be used to block an element from operating, as an input to a control feature in a FlexLogic equation, or to operate a contact output.
  • Page 314 The number of pulses counted is equal to the set number Lower than Counter 1 LO The number of pulses counted is below the set number Fixed Logic 1 Logic 0 5-146 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 315 Advanced fault detector low, positive-sequence current has operated 87PC I_1 FDH OP Advanced fault detector high, positive-sequence current has operated 87PC RX1 Received pulse on channel 1 87PC RX2 Received pulse on channel 2 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-147...
  • Page 316 Breaker failure 1 timer 3 is operated BKR FAIL 1 TRIP OP Breaker failure 1 trip is operated BKR FAIL 2 Same set of operands as shown for BKR FAIL 1 5-148 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 317 Digital counter 1 output is ‘equal to’ comparison value Counter 1 LO Digital counter 1 output is ‘less than’ comparison value Counter 2 to 8 Same set of operands as shown for Counter 1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-149...
  • Page 318 NEG SEQ OV1 PKP Negative-sequence overvoltage element has picked up Negative-sequence NEG SEQ OV1 DPO Negative-sequence overvoltage element has dropped out overvoltage NEG SEQ OV1 OP Negative-sequence overvoltage element has operated 5-150 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 319 PH DIST Z1 DPO AB PH DIST Z1 DPO BC Phase distance zone 1 phase BC has dropped out PH DIST Z1 DPO CA Phase distance zone 1 phase CA has dropped out L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-151...
  • Page 320 Phase A of phase undervoltage 1 has dropped out PHASE UV1 DPO B Phase B of phase undervoltage 1 has dropped out PHASE UV1 DPO C Phase C of phase undervoltage 1 has dropped out 5-152 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 321 Source 1 VT neutral wire open detected. When the VT is connected in Delta, do not enable this function because there is no neutral wire for Delta connected VT. SRC2 VT FUSE FAIL Same set of operands as shown for SRC1 VT FF L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-153...
  • Page 322 Thermal overload protection 1 picked up Thermal overload THERMAL PROT 1 OP Thermal overload protection 1 operated protection THERMAL PROT 2 Same set of operands as shown for THERMAL PROT 1 5-154 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 323 Flag is set, logic=1 Virtual inputs Virt Ip 2 On Flag is set, logic=1 Virt Ip 3 On Flag is set, logic=1 ↓ ↓ Virt Ip 64 On Flag is set, logic=1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-155...
  • Page 324 Communications source of the reset command RESET OP (OPERAND) Operand (assigned in the INPUTS/OUTPUTS  RESETTING menu) source of the reset command RESET OP (PUSHBUTTON) Reset key (pushbutton) source of the reset command 5-156 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 325 ‘1’ 2 to 16 all inputs are ‘1’ 2 to 16 all inputs are ‘0’ NAND 2 to 16 any input is ‘0’ only one input is ‘1’ L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-157...
  • Page 326: Flexlogic Rules

    A timer operator (for example, "TIMER 1") or virtual output assignment (for example, " = Virt Op 1") can be used once only. If this rule is broken, a syntax error is declared. 5.5.3 FlexLogic evaluation Each equation is evaluated in the ascending order in which the parameters have been entered. 5-158 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 327: Flexlogic Example

    4, which is programmed in the contact output section to operate relay H1 (that is, contact output H1). Therefore, the required logic can be implemented with two FlexLogic equations with outputs of virtual output 3 and virtual output 4, shown as follows. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-159...
  • Page 328 It is generally easier to start at the output end of the equation and work back towards the input, as shown in the following steps. It is also recommended 5-160 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 329 It is now possible to check that this selection of parameters produces the required logic by converting the set of parameters into a logic diagram. The result of this process is shown in the figure, which is compared to the logic for virtual output 3 diagram as a check. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-161...
  • Page 330 Now check that the selection of parameters produce the required logic by converting the set of parameters into a logic diagram. The result is shown in the figure, which is compared to the logic for virtual output 4 diagram as a check. 5-162 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 331 Always test the logic after it is loaded into the relay, in the same way as has been used in the past. Testing can be simplified by placing an "END" operator within the overall set of FlexLogic equations. The equations are evaluated up L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-163...
  • Page 332: Flexlogic Equation Editor

    Range: Off, any analog actual value parameter  FLEXELEMENT 1 INPUT Range: SIGNED, ABSOLUTE  MODE: SIGNED FLEXELEMENT 1 COMP Range: LEVEL, DELTA  MODE: LEVEL FLEXELEMENT 1 Range: OVER, UNDER  DIRECTION: OVER 5-164 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 333 FLEXELEMENT 1 +IN this setting is set to “Off.” For proper operation of the element, at least one input must be selected. Otherwise, the element does not assert its output operands. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-165...
  • Page 334 Figure 5-82: FlexElement direction, pickup, and hysteresis In conjunction with the setting, the element can be programmed to provide two extra FLEXELEMENT 1 INPUT MODE characteristics, as shown in the following figure. 5-166 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 335 (Brk X Arc Amp A, B, and C) DCmA BASE = maximum value of the DCMA INPUT MAX setting for the two transducers configured under the +IN and –IN inputs DELTA TIME BASE = 1 µs L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-167...
  • Page 336: Non-volatile Latches

    Typical applications include sustaining operator commands or permanently blocking relay functions, such as Autorecloser, until a deliberate interface action resets the latch. — This setting characterizes Latch 1 to be Set- or Reset-dominant. LATCH 1 TYPE 5-168 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 337: Grouped Elements

    SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  SETTING GROUP 1  PHASE COMPARISON See below    ELEMENTS  LINE PICKUP See page 5-188    DISTANCE See page 5-191   L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-169...
  • Page 338: Phase Comparison Elements

    87PC SCHEME SELECT: Range: 2TL-TR-SPC-2FC, 2TL-BL-SPC-2FC,  2TL-TR-SPC-2FC 2TL-TR-DPC-3FC, and so on 87PC BLOCK: Range: FlexLogic operand  87PC SIGNAL SOURCE: Range: One Source Current, Two Sources Current  One Source Current 5-170 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 339 87PC TRANS BLOCK Range: 0 to 65.535 s in steps of 0.001  PICKUP: 0.030 s 87PC TRANS BLOCK Range: 0 to 65.535 s in steps of 0.001  RESET: 0.030 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-171...
  • Page 340 CTs summed externally) or from two separate sources (breaker-and-a-half or ring configurations), where currents from both CTs are fed into the L60 individually. — A mixed I_2 – K × I_1 signal, mixed I_1+I_2 / K signal, or single 3I_0 signal can be chosen as the operating 87PC SIGNAL signal for the FDH and FDL detectors and positive/negative square pulses generation.
  • Page 341 This value is typically set to 1.25 cycles in dual comparison applications and 2 cycles in single comparison applications. — This setting is used to select the stability angle for trip security. 87PC STABILITY ANGLE L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-173...
  • Page 342 FlexLogic execution and sending trip command directly from the 87PC function to the contact output. These setting are used for breaker 1 and 2 (if used) trip coil connections. 5-174 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 343 CT/VT module to CPU trip pulse Tx Pos Transmit signal per 87PC logic Tx Neg Transmit signal per 87PC logic FDH Aligned See the Application of Settings chapter for calculation examples for the phase comparison elements. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-175...
  • Page 344 CH1 ASYMMETRY 87PC CH2 ASYMMETRY oscillography for commissioning, troubleshooting, and analysis purposes. The L60 features excellent stability during channel noise due to the high sampling rate of the received signal, and the unique integrator makes the digital phase- comparison relay fully equivalent to analogue phase-comparison relays.
  • Page 345 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-86: Overall phase comparison logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-177...
  • Page 346 NEG SEQ VOL FDL Range: 0.005 to 3.000 pu in steps of 0.001  PICKUP: 0.010 pu NEG SEQ VOL FDH Range: 0.005 to 3.000 pu in steps of 0.001  PICKUP: 0.050 pu 5-178 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 347 87PC targets. — This setting controls event recording of the function. These events are logged independently from NEG SEQ VOL FD EVENTS the 87PC events. Figure 5-87: Negative-sequence voltage fault detector logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-179...
  • Page 348 — This setting controls targets of the function. These targets operate independently from the 87PC NEG SEQ di/dt FD TARGET targets. — This setting controls event recording of the function. These events are logged independently NEG SEQ di/dt FD EVENTS from the 87PC events. 5-180 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 349 — This setting controls pickup of the low set stage of the element used to control the key POS SEQ di/dt FDL PICKUP operation. Nominal current of the phase CT bank of the relay is 1 pu. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-181...
  • Page 350 PICKUP: 0.50 pu NEG SEQ I_2 BLK: Range: FlexLogic operand  NEG SEQ I_2 FD Range: Self-Reset, Latched, Disabled  TARGET: Self-reset NEG SEQ I_2 FD Range: Disabled, Enabled  EVENTS: Disabled 5-182 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 351 PICKUP: 0.50 pu POS SEQ I_1 BLK: Range: FlexLogic operand  POS SEQ I_1 FD Range: Self-Reset, Latched, Disabled  TARGET: Self-reset POS SEQ I_1 FD Range: Disabled, Enabled  EVENTS: Disabled L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-183...
  • Page 352 As such, it is critical to ensure that three-phase line voltage is assigned to this source and voltage bank settings are entered correctly. Half (or one-third for the three-terminal line, as defined by the setting) 87PC SCHEME SELECT of the line charging current is subtracted from the line current. 5-184 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 353 SEQ CAPACITIVE REACTANCE No shunt reactors on the line or reactor current is subtracted from the line current, forcing the L60 to measure the uncompensated by shunt reactors load/fault current plus the full charging current.
  • Page 354 • If a line is open at one end, the phase comparison element is unable to detect an internal fault and give trip permission to the remote terminal relay. 5-186 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 355 — The weak-infeed keying function incorporates a default 35 ms reset delay to assure reset WEAK-INFEED RESET DELAY coordination with the FDH trip-level fault detector at the remote terminal during fault clearing. The default reset time can be changed according to local conditions. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-187...
  • Page 356: Line Pickup

    LINE END OPEN RESET Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.090 s LINE PICKUP OV PKP Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.040 s 5-188 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 357 When this setting is enabled (the default value), the coordination timer is bypassed. Disable this setting (removing the bypass and inserting the timer) if high speed autoreclosure is employed. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-189...
  • Page 358 — Assertion of the FlexLogic operand assigned to this setting blocks operation of the line pickup LINE PICKUP BLOCK element. — This setting enables and disables the logging of line pickup events in the sequence of events LINE PICKUP EVENTS recorder. Figure 5-94: Line pickup logic 5-190 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 359: Distance

    (logic 1), the distance functions become memory-polarized regardless of the positive-sequence voltage magnitude at this time. When the selected operand is de-asserted (logic 0), the distance functions follow other conditions of the memory voltage logic. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-191...
  • Page 360 1 to zone 3. PH DIST PH SELECT SUPV The distance zones of the L60 are identical to that of the D60 Line Distance Relay. Figure 5-95: Memory voltage logic 5.6.5.2 Phase distance (ANSI 21P, IEC PDIS) SETTINGS ...
  • Page 361 Ensure that the Phase VT Secondary Voltage setting (see the SETTINGS  SYSTEM SETUP  AC INPUTS menu) is set correctly to prevent improper operation of associated memory  VOLTAGE BANK action. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-193...
  • Page 362 The selection is available on a per-zone basis. The two characteristics and their possible variations are shown in the following figures. Figure 5-96: Directional mho phase distance characteristic Figure 5-97: Non-directional mho phase distance characteristic 5-194 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 363 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-98: Directional quadrilateral phase distance characteristic Figure 5-99: Non-directional quadrilateral phase distance characteristic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-195...
  • Page 364 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-100: Mho distance characteristic sample shapes 5-196 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 365 Therefore, the Z3 setting is set to “None.” See the Application of Settings chapter for information on calculating distance reach settings in applications involving power transformers. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-197...
  • Page 366 — This setting defines the angle of the reverse reach impedance of the non-directional zone PHS DIST Z1 REV REACH RCA setting). This setting does not apply when the zone direction is set to "Forward" or "Reverse." PHS DIST Z1 DIR 5-198 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 367 — This setting enables the user to select a FlexLogic operand to block a given distance element. VT fuse fail PHS DIST Z1 BLK detection is one of the applications for this setting. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-199...
  • Page 368 2 operation when the fault evolves from one type to another or migrates from the initial zone to zone 2. Assign the required zones in the trip output function to accomplish this functionality. 5-200 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 369 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-105: Phase distance zones 3 and higher OP logic Figure 5-106: Phase distance logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-201...
  • Page 370 GND DIST Z1 VOLT Range: 0.000 to 5.000 pu in steps of 0.001  LEVEL: 0.000 pu GND DIST Z1 Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.000 s 5-202 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 371 The figures show the directional and non-directional quadrilateral ground distance characteristics. The directional and non-directional mho ground distance characteristics are the same as those shown for the phase distance element in the previous section. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-203...
  • Page 372 If this compensation is required, the ground current from the parallel line (3I_0) measured in the direction of the zone being compensated must be connected to the ground input CT of the CT bank 5-204 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 373 In conjunction with the quadrilateral characteristic, this setting improves security for faults close to the reach point by adjusting the reactance boundary into a tent-shape. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-205...
  • Page 374 — This setting enables the user to select a FlexLogic operand to block the given ground distance element. GND DIST Z1 BLK VT fuse fail detection is one of the applications for this setting. 5-206 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 375 2 operation if the fault evolves from one type to another or migrates from zone 3 or 4 to zone 2. Assign the required zones in the trip output element to accomplish this functionality. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-207...
  • Page 376 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-111: Ground distance zones 3 and higher OP scheme 5-208 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 377 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-112: Ground distance zone 1 pickup logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-209...
  • Page 378 Otherwise, the reverse fault condition that generates concern has high polarizing levels so that a correct reverse fault decision can be reliably made. The supervision for zones 2 and 3 is removed during open pole conditions. 5-210 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 379: Power Swing Detect (ansi 68)

    RCA: 75° POWER SWING OUTER Range: 40 to 140° in steps of 1  LIMIT ANGLE: 120° POWER SWING MIDDLE Range: 40 to 140° in steps of 1  LIMIT ANGLE: 90° L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-211...
  • Page 380 Different protection elements respond differently to power swings. If tripping is required for faults during power swing conditions, some elements can be blocked permanently (using the operand), and others can be POWER SWING BLOCK blocked and dynamically unblocked upon fault detection (using the operand). POWER SWING UN/BLOCK 5-212 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 381 The element can be set to use either lens (mho) or rectangular (quadrilateral) characteristics, as shown in the figure. When set to “Mho,” the element applies the right and left blinders as well. If the blinders are not required, set their settings high enough to effectively disable the blinders. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-213...
  • Page 382 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-115: Power swing detect mho operating characteristics Figure 5-116: Effects of blinders on the mho characteristics 5-214 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 383 — This setting selects the shapes (either “Mho” or “Quad”) of the outer, middle, and inner POWER SWING SHAPE characteristics of the power swing detect element. The operating principle is not affected. The “Mho” characteristics use the left and right blinders. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-215...
  • Page 384 POWER SWING MIDDLE LIMIT ANGLE for the three-step mode. A typical value is close to the average of the outer and inner limit angles. This setting applies to mho shapes only. 5-216 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 385 POWER SWING TRIP — Enables and disables the logging of power swing detect events in the sequence of events POWER SWING EVENTS recorder. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-217...
  • Page 386 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-118: Power swing detect logic (Sheet 1 of 3) 5-218 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 387 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-119: Power swing detect logic (Sheet 2 of 3) Figure 5-120: Power swing detect logic (Sheet 3 of 3) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-219...
  • Page 388: Load Encroachment

    The element operates if the positive-sequence voltage is above a settable level and asserts its output signal that can be used to block selected protection elements, such as distance or phase overcurrent. The following figure shows an effect of the load encroachment characteristics used to block the quadrilateral distance element. 5-220 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 389: Phase Current

    When the voltage is below this threshold, a blocking signal is not asserted by the element. When selecting this setting, remember that the L60 measures the phase-to-ground sequence voltages regardless of the VT connection. The nominal VT secondary voltage as specified with the SYSTEM SETUP ...
  • Page 390  DIRECTIONAL 2 5.6.8.2 Inverse TOC curve characteristics The inverse time overcurrent curves used by the time overcurrent elements are the IEEE, IEC, GE Type IAC, and I t standard curve shapes. This allows for simplified coordination with downstream devices.
  • Page 391 For European applications, the relay offers three standard curves defined in IEC 255-4 and British standard BS142. These are defined as IEC Curve A, IEC Curve B, and IEC Curve C. The IEC curves are derived by the operate and reset time equations. Eq. 5-12 where L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-223...
  • Page 392 0.711 0.445 0.351 0.301 0.269 0.247 0.231 0.218 0.207 0.60 1.835 1.067 0.668 0.526 0.451 0.404 0.371 0.346 0.327 0.311 0.80 2.446 1.423 0.890 0.702 0.602 0.538 0.494 0.461 0.435 0.415 5-224 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 393 A to E = constants defined in the table = characteristic constant defined in the table = reset time in seconds (assuming energy capacity is 100% and RESET is “Timed”) RESET Table 5-31: GE type IAC inverse time curve constants IAC curve shape IAC Extreme Inverse 0.0040 0.6379...
  • Page 394 250.00 111.11 62.50 40.00 27.78 20.41 15.63 12.35 10.00 100.00 4444.4 2500.0 1111.1 625.00 400.00 277.78 204.08 156.25 123.46 100.00 600.00 26666.7 15000.0 6666.7 3750.0 2400.0 1666.7 1224.5 937.50 740.74 600.00 5-226 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 395 = Reset Time in seconds (assuming energy capacity is 100% and RESET: Timed) RESET Recloser curves The L60 uses the FlexCurve feature to facilitate programming of 41 recloser curves. See the FlexCurves settings section earlier in this chapter for details. 5.6.8.3 Phase time overcurrent (ANSI 51P, IEC PTOC) SETTINGS ...
  • Page 396 — Selects the signal source for the phase time overcurrent protection element. SIGNAL SOURCE — Selects how phase current input quantities are interpreted by the L60. Inputs can be selected as fundamental INPUT phasor magnitudes or total waveform RMS magnitudes as required by the application.
  • Page 397 PHASE IOC1 PICKUP Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s PHASE IOC1 RESET Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-229...
  • Page 398   DIRECTIONAL 1 FUNCTION: Disabled PHASE DIR 1 SIGNAL Range: SRC 1, SRC 2, SRC 3, SRC 4  SOURCE: SRC 1 PHASE DIR 1 BLOCK: Range: FlexLogic operand  5-230 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 399 (ECA) settings. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-231...
  • Page 400 When set to "Yes," the directional element blocks the operation of any phase overcurrent element under directional control, when voltage memory expires. When set to "No," the directional element allows tripping of phase overcurrent elements under directional control. 5-232 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 401: Neutral Current

    SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  NEUTRAL CURRENT  NEUTRAL CURRENT  NEUTRAL TOC 1 See below     NEUTRAL TOC 2    NEUTRAL IOC 1 See page 5-235    L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-233...
  • Page 402 — This setting selects the signal source for the neutral time overcurrent protection element. NEUTRAL TOC1 SIGNAL SOURCE — This setting selects how neutral current input quantities are interpreted by the L60. Inputs can be NEUTRAL TOC1 INPUT selected as fundamental phasor magnitudes or total waveform RMS magnitudes as required by the application.
  • Page 403 The positive-sequence restraint allows for more sensitive settings by counterbalancing spurious zero-sequence currents resulting from: • System unbalances under heavy load conditions • Transformation errors of current transformers (CTs) during double-line and three-phase faults • Switch-off transients during double-line and three-phase faults L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-235...
  • Page 404 VOLT: Calculated V0 NEUTRAL DIR OC1 OP Range: Calculated 3I0, Measured IG  CURR: Calculated 3I0 NEUTRAL DIR OC1 POS- Range: 0.000 to 0.500 in steps of 0.001  SEQ RESTRAINT: 0.063 5-236 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 405 The following tables define the neutral directional overcurrent element. V_0 is the zero-sequence voltage, I_0 is the zero-sequence current, ECA is the element characteristic angle, and IG is the ground current. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-237...
  • Page 406 This allows for better protection coordination. Take the bias into account when using the neutral directional overcurrent element to directionalize other protection elements. 5-238 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 407 A similar situation arises for a wye/delta/wye transformer, where current in one transformer winding neutral can reverse when faults on both sides of the transformer are considered. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-239...
  • Page 408 — This setting defines the pickup level for the overcurrent unit of the element in the reverse NEUTRAL DIR OC1 REV PICKUP direction. When selecting this setting, keep in mind that the design uses a positive-sequence restraint technique for the “Calculated 3I0” mode of operation. 5-240 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 409: Wattmetric Ground Fault

    WATTMETRIC GND FLT 1 Range: Calculated IN, Measured IG  CURR: Calculated IN WATTMETRIC GND FLT 1 Range: 0.002 to 30.000 pu in steps of 0.001  OC PKP: 0.060 pu L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-241...
  • Page 410 WATTMETRIC GND FLT 1 PWR PKP the 1 pu voltage as specified for the overvoltage condition of this element, and 1 pu current as specified for the overcurrent condition of this element. 5-242 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 411 The four FlexCurves allow for custom user-programmable time characteristics. When working with FlexCurves, the element uses the operate to pickup ratio, and the multiplier setting is not applied: Eq. 5-24 Again, the FlexCurve timer starts after the definite time timer expires. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-243...
  • Page 412 — This setting is applicable if the is set to Inverse and WATTMETRIC GND FLT 1 MULTIPLIER WATTMETRIC GND FLT 1 CURVE defines the multiplier factor for the inverse time delay. 5-244 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 413: Ground Current

    Figure 5-134: Wattmetric zero-sequence directional logic 5.6.11 Ground current 5.6.11.1 Menu SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  GROUND CURRENT  GROUND CURRENT  GROUND TOC1 See below    L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-245...
  • Page 414 — This setting selects the signal source for the ground time overcurrent protection element. GROUND TOC1 SIGNAL SOURCE — This setting selects how ground current input quantities are interpreted by the L60. Inputs can be GROUND TOC1 INPUT selected as fundamental phasor magnitudes or total waveform RMS magnitudes as required by the application.
  • Page 415 Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s GROUND IOC1 BLOCK: Range: FlexLogic operand  GROUND IOC1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset GROUND IOC1 Range: Disabled, Enabled  EVENTS: Disabled L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-247...
  • Page 416: Negative Sequence Current

     NEG SEQ DIR OC2   The L60 provides two negative-sequence time overcurrent elements, two negative-sequence instantaneous overcurrent elements, and two negative-sequence directional overcurrent elements. For information on the negative sequence time overcurrent curves, see the Inverse TOC Curve Characteristics section earlier.
  • Page 417 NEG SEQ IOC1 Range: 0.020 to 30.000 pu in steps of 0.001  PICKUP: 1.000 pu NEG SEQ IOC1 PICKUP Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-249...
  • Page 418 SOURCE: SRC 1 NEG SEQ DIR OC1 Range: 0.00 to 250.00 ohms in steps of 0.01  OFFSET: 0.00 Ω NEG SEQ DIR OC1 Range: Neg Sequence, Zero Sequence  TYPE: Neg Sequence 5-250 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 419 CT errors, since the current is low. The operating quantity depends on the way the test currents are injected into the L60. For single phase injection •...
  • Page 420 The reverse-looking function is faster compared to the forward-looking function, so use the reverse-looking function for the blocking direction. This allows for better protection coordination. Take this bias 5-252 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 421 When NEG SEQ DIR OC1 TYPE selecting this setting, keep in mind that the design uses a positive-sequence restraint technique. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-253...
  • Page 422: Breaker Failure (ansi 50bf)

    Range: 0.020 to 30.000 pu in steps of 0.001  PICKUP: 1.050 pu BF1 USE TIMER 1: Range: Yes, No  BF1 TIMER 1 PICKUP Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.000 s 5-254 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 423 Because breaker failure can result in tripping a large number of breakers and this affects system safety and stability, a very high level of security is required. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-255...
  • Page 424 For the L60 relay, the protection trip signal initially sent to the breaker is already programmed as a trip output. The protection trip signal does not include other breaker commands that are not indicative of a fault in the protected zone.
  • Page 425 — If set to "Yes," the element is sealed-in if current flowing through the breaker is above the supervision BF1 USE SEAL-IN pickup level. — This setting selects the FlexLogic operand that initiates three-pole tripping of the breaker. BF1 3-POLE INITIATE L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-257...
  • Page 426 In microprocessor relays this time is not significant. In L60 relays, which use a Fourier transform, the calculated current magnitude ramps-down to zero one power frequency cycle after the current is interrupted, and this lag needs to be included in the overall margin duration, as it occurs after current interruption.
  • Page 427 Upon operation of the breaker failure element for a single pole trip command, a three-pole trip command needs to be given via output operand BKR FAIL 1 TRIP L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-259...
  • Page 428 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-143: Single-pole breaker failure, initiate logic 5-260 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 429 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-144: Single-pole breaker failure, timers logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-261...
  • Page 430 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-145: Three-pole breaker failure, initiate logic 5-262 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 431 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-146: Three-pole breaker failure, timers logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-263...
  • Page 432: Voltage Elements

    The time delay is adjustable from 0 to 600.00 seconds in steps of 0.01. The undervoltage elements can also be programmed to have an inverse time delay characteristic. 5-264 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 433 Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 1.00 s PHASE UV1 MINIMUM Range: 0.000 to 3.000 pu in steps of 0.001  VOLTAGE: 0.100 pu PHASE UV1 BLOCK: Range: FlexLogic operand  L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-265...
  • Page 434 Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 1.00 s PHASE OV1 BLOCK: Range: FlexLogic Operand  PHASE OV1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset PHASE OV1 Range: Disabled, Enabled  EVENTS: Disabled 5-266 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 435 Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 1.00 s NEUTRAL OV1 BLOCK: Range: FlexLogic operand  NEUTRAL OV1 TARGET: Range: Self-reset, Latched, Disabled  Self-reset NEUTRAL OV1 EVENTS: Range: Disabled, Enabled  Disabled L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-267...
  • Page 436 There are three negative-sequence overvoltage elements available. Use the negative-sequence overvoltage element to detect loss of one or two phases of the source, a reversed phase sequence of voltage, or a non-symmetrical system voltage condition. 5-268 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 437 Range: Disabled, Enabled  Disabled The L60 contains one auxiliary undervoltage element for each VT bank. This element monitors undervoltage conditions of the auxiliary voltage. selects the voltage level at which the time undervoltage element starts timing. The nominal secondary...
  • Page 438 Range: Disabled, Enabled  Disabled The L60 contains one auxiliary overvoltage element for each VT bank. This element is intended for monitoring overvoltage conditions of the auxiliary voltage. The nominal secondary voltage of the auxiliary voltage channel entered under SYSTEM is the per-unit (pu) base used when setting the SETUP ...
  • Page 439 Range: 0.00 to 600.00 seconds in steps of 0.01  DELAY: 1.00 sec COMPENSATED OV BLK: Range: FlexLogic operand  COMPENSATED OV Range: Self-reset, Latched, Disabled  TARGET: Self-reset COMPENSATED OV Range: Disabled, Enabled  EVENTS: Disabled L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-271...
  • Page 440 — This setting specifies the angle of the impedance Z in degrees. COMPENSATED OV Zc ANG — This setting specifies the maximum expected positive-sequence line current for which a COMPENSATED OV I_1max remote overvoltage is anticipated. 5-272 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 441: Control Elements

    TRIP BUS 1 PICKUP Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s TRIP BUS 1 RESET Range: 0.00 to 600.00 s in steps of 0.01  DELAY: 0.00 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-273...
  • Page 442 — This setting enables or disables latching of the trip bus output. This is typically used when lockout is TRIP BUS 1 LATCHING required or user acknowledgement of the relay response is required. 5-274 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 443: Setting Groups

    — When Enabled, allows setting groups other than group 1 (the default active group) to be SETTING GROUPS FUNCTION activated. The default setting group is forced active while the setting is Disabled. SETTING GROUPS FUNCTION L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-275...
  • Page 444: Selector Switch

     Disabled SELECTOR 1 FULL Range: 1 to 7 in steps of 1  RANGE: 7 SELECTOR 1 TIME-OUT: Range: 3.0 to 60.0 s in steps of 0.1  5.0 s 5-276 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 445 Z the pre-selected position. The message is displayed for the time specified by the FLASH setting. The pre-selected position is applied after the selector times out (“Time-out” mode), or when the MESSAGE TIME L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-277...
  • Page 446 When set to “Restore,” the last position of the selector (stored in the non-volatile memory) is restored after powering up the relay. If the position restored from memory is out of range, position 0 (no output operand selected) is applied and an alarm is set ( SELECTOR 1 PWR ALARM 5-278 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 447 The selector position pre-selected via the three-bit control input has not been confirmed before the time The following figures illustrate the operation of the selector switch. In these diagrams, “T” represents a time-out setting. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-279...
  • Page 448 CONTROL ELEMENTS CHAPTER 5: SETTINGS Figure 5-160: Time-out mode 5-280 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 449 1 through 3. The pre-selected setting group is to be applied automatically after five seconds of inactivity of the control inputs. When the relay powers up, it is to synchronize the setting group to the three-bit control input. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-281...
  • Page 450 SETTINGS  PRODUCT menu: SETUP  USER-PROGRAMMABLE PUSHBUTTONS  USER PUSHBUTTON 1 : “Self-reset” PUSHBUTTON 1 FUNCTION : “0.10 s” PUSHBUTTON 1 DROP-OUT TIME The figure shows the logic for the selector switch. 5-282 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 451: Trip Output

     TRIP RECLOSE INPUT1: Range: FlexLogic operand   TRIP RECLOSE INPUT6: Range: FlexLogic operand  TRIP SEAL-IN DELAY: Range: 0 to 65.535 s in steps of 0.001  0.000 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-283...
  • Page 452 Collect inputs to initiate three pole tripping, the recloser and breaker failure elements • Collect inputs to initiate single pole tripping, the recloser and breaker failure elements • Assign a higher priority to pilot aided scheme outputs than to exclusively local inputs 5-284 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 453 CHAPTER 5: SETTINGS CONTROL ELEMENTS The trip output element works in association with other L60 elements that must be programmed and in-service for successful operation. The necessary elements are: recloser, breaker control, open pole detector, and phase selector. The recloser must also be in the “Reset” state before a single pole trip can be issued. Outputs from this element are also directly connected as initiate signals to the breaker failure elements.
  • Page 454 — These settings are used to select an operand to indicates that phase A, B, or BKR ΦA OPEN BKR ΦB OPEN BKR ΦC OPEN C of the breaker is open, respectively. 5-286 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 455 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-163: Trip output logic (Sheet 1 of 2) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-287...
  • Page 456 CONTROL ELEMENTS CHAPTER 5: SETTINGS Figure 5-164: Trip output logic (Sheet 2 of 2) 5-288 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 457: Synchrocheck (ansi 25)

    The synchronism check function supervises the paralleling of two parts of a system that are to be joined by the closure of a circuit breaker. The synchrocheck elements are typically used at locations where the two parts of the system are interconnected through at least one other point in the system. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-289...
  • Page 458 Figure 5-165: Synchrocheck plot for slip > 0 (slip = F2-F1) 5-290 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 459 The selected sources for synchrocheck inputs V1 and V2 (which must not be the same source) can include both a three-phase and an auxiliary voltage. The relay automatically selects the specific voltages to be used by the synchrocheck element in accordance with the following table. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-291...
  • Page 460 The relay uses the phase channel of a three-phase set of voltages if programmed as part of that source. The relay uses the auxiliary voltage channel only if that channel is programmed as part of the Source and a three-phase set is not. 5-292 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 461 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-167: Synchrocheck logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-293...
  • Page 462: Digital Elements

    DIGITAL ELEMENT 1 RESET DELAY — This setting enables or disabled the digital element pickup LED. When set to “Disabled,” the DIGITAL ELEMENT 1 PICKUP LED operation of the pickup LED is blocked. 5-294 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 463 In most breaker control circuits, the trip coil is connected in series with a breaker auxiliary contact that is open when the breaker is open (see figure). To prevent unwanted alarms in this situation, the trip circuit monitoring logic must include the breaker position. Figure 5-169: Trip circuit example 1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-295...
  • Page 464 In this case, it is not required to supervise the monitoring circuit with the breaker position – the setting is BLOCK selected to “Off.” In this case, the settings are as follows (EnerVista example shown). 5-296 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 465: Digital Counters

    Range: FlexLogic operand  CNT1 SET TO PRESET: Range: FlexLogic operand  COUNTER 1 RESET: Range: FlexLogic operand  COUNT1 FREEZE/RESET: Range: FlexLogic operand  COUNT1 FREEZE/COUNT: Range: FlexLogic operand  L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-297...
  • Page 466 If control power is interrupted, the accumulated and frozen values are saved into non-volatile memory during the power-down operation. 5-298 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 467: Monitoring Elements

     BREAKER RESTRIKE 2    CT FAILURE See page 5-310   DETECTOR 1   CT FAILURE   DETECTOR 4  VT FUSE FAILURE 1 See page 5-312   L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-299...
  • Page 468 Correction is implemented to account for a non-zero reset time of the overcurrent function. 5-300 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 469 -cycle) and AMP MAX (kA) values of the last event. — This setting specifies the maximum symmetrical interruption rating of the circuit breaker. BKR 1 INTERUPTION RATING Figure 5-172: Arcing current measurement L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-301...
  • Page 470 CONTROL ELEMENTS CHAPTER 5: SETTINGS Figure 5-173: Breaker arcing current logic 5-302 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 471 (contact input indicating the breaker status is off), and no flashover current is flowing. A contact showing the breaker status must be provided to the relay. The voltage difference is not considered as a condition for open breaker in this part of the logic. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-303...
  • Page 472 This application does not require detection of breaker status via a 52a contact, as it uses a voltage difference larger than setting. However, monitoring the breaker contact ensures scheme stability. BRK 1 FLSHOVR DIFF V PKP 5-304 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 473 (all line breakers open), to well above the maximum line (feeder) load (line/feeder connected to load). L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-305...
  • Page 474 A six-cycle time delay applies after the selected FlexLogic operand resets. — This setting specifies the time delay to operate after a pickup condition is detected. BRK FLSHOVR PKP DELAY 5-306 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 475 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-174: Breaker flashover logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-307...
  • Page 476 The user can add counters and other logic to facilitate the decision making process as to the appropriate actions upon detecting a single restrike or a series of consecutive restrikes. 5-308 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 477 1/8th of the power cycle. — Enables/disables high-frequency (HF) pattern detection when breaker restrike occurs. BREAKER RESTRIKE 1 HF DETECT High-frequency pattern is typical for capacitor bank, cables, and long transmission lines applications. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-309...
  • Page 478  PKP: 0.20 pu CT FAIL 1 PICKUP Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 1.000 s CT FAIL 1 TARGET: Range: Self-reset, Latched, Disabled  Self-reset 5-310 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 479 — Specifies the pickup value for the 3V_0 source. CT FAIL 1 3V0 INPUT PICKUP — Specifies the pickup delay of the CT failure element. CT FAIL 1 PICKUP DELAY Figure 5-178: CT failure detector logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-311...
  • Page 480 WYE VTs and ( in case PHASE VT SECONDARY PHASE VT SECONDARY of DELTA VTs. The setting is found under SETTINGS  SYSTEM SETUP  AC INPUTS  VOLTAGE BANK  PHASE VT SECONDARY 5-312 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 481 Range: 300.0 to 9999.9 ohms in steps of 0.001  9999.9 Ω OPEN POLE REM CURR Range: 0.020 to 30.000 pu in steps of 0.001  PKP: 0.050 pu OPEN POLE MODE: Range: Accelerated, Traditional  Accelerated L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-313...
  • Page 482 When used in configuration with only one breaker, set the BREAKER 2 FUNCTION “Enabled” and the setting to “On” (see the Breaker Control section earlier in this chapter for details). BREAKER 2 OUT OF SV 5-314 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 483 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-180: Open pole detector logic (Sheet 1 of 2) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-315...
  • Page 484 Range: FlexLogic operand  THERM PROT 1 BLOCK: Range: FlexLogic operand  THERMAL PROTECTION 1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset THERMAL PROTECTION 1 Range: Disabled, Enabled  EVENTS: Disabled 5-316 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 485 The reset time of the thermal overload protection element is also time delayed using following formula: Eq. 5-33 where τ = thermal protection trip time constant = a minimum reset time setting L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-317...
  • Page 486 IEC255-8 cold curve or hot curve equations op(In) is the reset time calculated at index n as per the reset time equation rst(In) 5-318 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 487 BROKEN CONDUCTOR 1 Range: 20.0% to 100.0% in steps of 0.1%  I2/I1 RATIO: 20% BROKEN CONDUCTOR 1 Range: 0.05 to 1.00 pu in steps of 0.01  I1 MIN: 0.10 pu L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-319...
  • Page 488 — This setting specifies the pickup time delay for this function to operate after assertion BROKEN CONDUCTOR 1 PKP DELAY of the broken conductor pickup FlexLogic operand. 5-320 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 489 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-184: Broken conductor detection logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-321...
  • Page 490: Pilot Schemes

    2 distance functions is not expected to be long for two-terminal applications, and the security of the distance functions is not endangered by the 5-322 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 491 Typically, the output operand should be programmed to initiate a trip, breaker fail, and autoreclose, and drive a user-programmable LED as per user application. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-323...
  • Page 492: Autoreclose (ansi 79)

    Mode 4 Activation: Range: FlexLogic operand  AR MAX NUMBER OF Range: 1, 2, 3, 4  SHOTS: 2 AR INITIATE MODE: Range: Protection AND CB, Protection Only  Protection AND CB 5-324 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 493 Range: 0 to 655.35 s in steps of 0.01  TIME: 5.00 s AR BLOCK BKR2: Range: FlexLogic operand  AR CLOSE TIME BKR2: Range: 0.00 to 655.35 s in steps of 0.01  0.10 s L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-325...
  • Page 494 For the three-pole reclose programs (modes 3 and 4), an FlexLogic operand is set. This operand can be used in AR FORCE 3-P connection with the tripping logic to cause a three-pole trip for single-phase faults. 5-326 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 495 The pause signal freezes all four dead timers. When the ‘pause’ signal disappears the autoreclose cycle is resumed by continuing the shot timer it was left at when paused. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-327...
  • Page 496 (there is no initiating signal and the breakers are closed), the reset timer times out, returning the scheme to the reset state, with the shot counter set to 0, making it ready for a new reclose cycle. 5-328 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 497 The shot counter is not at 0; that is, the scheme is not in the reset state. This ensures a second trip is three-pole when reclosing onto a permanent single phase fault. • 1.25 cycles after the single-pole reclose is initiated by the signal AR 1P INIT L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-329...
  • Page 498 AR 3P INIT are asserted simultaneously, then autoreclose does not activate the first and second shot timers at the same time. Instead, the priority is given to the operand. AR 3P INIT 5-330 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 499 AR1 CLOSE BRK 1 case of the unsuccessful reclose attempt or 20 ms after Open Pole is reset in case of a successful reclosure attempt. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-331...
  • Page 500 — This setting is used in breaker-and-a-half applications to allow the autoreclose control function to AR BUS FLT INIT perform reclosing with only one breaker previously opened by bus protection. For line faults, both breakers must open for the autoreclose reclosing cycles to take effect. 5-332 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 501 However, a FlexLogic operand, FAIL, is asserted if either simultaneous multiple activations are AR MODE SWITCH initiated, or a single activation is initiated but recloser is already in progress. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-333...
  • Page 502 Figure 5-187: Mode control logic In addition, the current AR mode is available as FlexLogic Operands because AR Mode equals to 1, 2, 3, and 4 respectively so that it can be monitored and logged. 5-334 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 503 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-188: Single-pole autoreclose logic (Sheet 2 of 3) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-335...
  • Page 504 CONTROL ELEMENTS CHAPTER 5: SETTINGS Figure 5-189: Single-pole autoreclose logic (Sheet 3 of 3) 5-336 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 505 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-190: Example of reclosing sequence L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-337...
  • Page 506: Inputs/outputs

    The DC input voltage is compared to a user-settable threshold. A new contact input state must be maintained for a user-settable debounce time in order for the L60 to validate the new contact state. In the following figure, the debounce time is set at 2.5 ms;...
  • Page 507 For example, to use contact input H5a as a status input from the breaker 52b contact to seal-in the trip relay and record it in the Event Records menu, make the following settings changes: L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-339...
  • Page 508: Virtual Inputs

    FlexLogic equation, it likely needs to be lengthened in time. A FlexLogic timer with a delayed reset can perform this function. Figure 5-192: Virtual inputs logic 5-340 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 509: Contact Outputs

    : any suitable FlexLogic operand OUTPUT H1 OPERATE “Cont Op 1 OUTPUT H1 SEAL-IN IOn” : “Enabled” CONTACT OUTPUT H1 EVENTS Figure 5-193: Contact input/output module type 6A contact 1 logic L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-341...
  • Page 510 Figure 5-194: Contact input/output module type 4L contact 1 logic Application example 1 A latching output contact H1a is to be controlled from two user-programmable pushbuttons (buttons number 1 and 2). The following settings are applied. 5-342 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 511 (assuming an H4L module): OUTPUTS  CONTACT OUTPUT H1a CONTACT OUTPUT H1c : “VO1” OUTPUT H1a OPERATE : “VO4” OUTPUT H1a RESET : “VO2” OUTPUT H1c OPERATE : “VO3” OUTPUT H1c RESET L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-343...
  • Page 512: Virtual Outputs

    The command can be sent from the faceplate RESET button, a remote device via a communications channel, or any selected operand. RESET 5-344 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 513: Direct Inputs And Outputs

    — This setting allows the user to assign a descriptive name to the direct output. DIRECT OUT 1 NAME — This sets the FlexLogic operand that determines the state of this direct output. DIR OUT 1 OPERAND L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-345...
  • Page 514 The following settings are applied (assume Bit 3 is used by all 3 devices to send the blocking signal and Direct Inputs 7, 8, and 9 are used by the receiving device to monitor the three blocking signals). UR IED 2: 5-346 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 515 Assume the Hybrid Permissive Overreaching Transfer Trip (Hybrid POTT) scheme is applied using the architecture shown as follows. The scheme output operand is used to key the permission. HYB POTT TX1 Figure 5-198: Single-channel open-loop configuration L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-347...
  • Page 516: Teleprotection

    2-1 through 2-16). The remote relay connected to channels 1 and 2 of the local relay is programmed by assigning FlexLogic operands to be sent via the selected communications channel. This allows the user to create 5-348 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 517 (teleprotection outputs at the sending end or corresponding teleprotection inputs at the receiving end). On three-terminal two-channel systems, redundancy is achieved by programming signal re-transmittal in the case of channel failure between any pair of relays. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-349...
  • Page 518: Transducer Inputs/outputs

    VALUE: 0.000 The L60 is provided with optional DCmA capability. This feature is specified as an option at the time of ordering. See the Order Codes section in chapter 2 for details. Hardware and software are provided to receive signals from external transducers and to convert these signals into a digital format for use as required.
  • Page 519: Rtd Inputs

    FlexElements, the operate level is scaled to a base of 100°C. For example, a trip level of 150°C is achieved by setting the operate level at 1.5 pu. FlexElement operands are available to FlexLogic for further interlocking or to operate an output contact directly. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-351...
  • Page 520: Dcma Outputs

    Range: –90.000 to 90.000 pu in steps of 0.001  MIN VAL: 0.000 pu DCMA OUTPUT H1 Range: –90.000 to 90.000 pu in steps of 0.001  MAX VAL: 1.000 pu 5-352 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 521 — This setting allows selection of the output range. Each DCmA channel can be set independently DCMA OUTPUT H1 RANGE to work with different ranges. The three most commonly used output ranges are available. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-353...
  • Page 522 The CT ratio is 5000:5 and the maximum load current is 4200 A. The current is to be monitored from 0 A upwards, allowing for 50% overload. The phase current with the 50% overload margin is: Eq. 5-42 5-354 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 523 ±0.5% of the full scale for the analog output module, or ± 0.005 x (1-0) x 254.03 kV = ±1.27 kV • ±0.5% of reading For example, under nominal conditions, the positive-sequence reads 230.94 kV and the worst-case error is 0.005 × 230.94 kV + 1.27 kV = 2.42 kV. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-355...
  • Page 524: Testing

     FUNCTION: Disabled The L60 provides a test facility to verify the functionality of contact inputs and outputs, some communication functions and the phasor measurement unit (where applicable), using simulated conditions. The test mode can be in any of three states: Disabled, Isolated, or Forcible.
  • Page 525: Force Contact Inputs

     FORCE Cont Op xx Range: Normal, Energized, De-energized, Freeze  : Normal The force contact outputs feature provides a method of performing checks on the function of all contact outputs. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 5-357...
  • Page 526 While the selected operand is Off, the output behaves as it does when in service. On restart, the setting and the force contact input and force contact output settings revert to TEST MODE FORCING their default states. 5-358 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 527: Actual Values

      RxGOOSE STATUS See page 6-6    RxGOOSE See page 6-6   STATISTICS  AUTORECLOSE See page 6-6    DIGITAL COUNTERS See page 6-7   L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 528  DCMA INPUTS  TRANSDUCER I/O See page 6-21   RTD INPUTS  DISTANCE See page 6-22     ACTUAL VALUES  FAULT REPORT See page 6-23   RECORDS  L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 529: Front Panel

    The front panel can be viewed and used in the EnerVista software, for example to view an error message displayed on the front panel. To view the front panel in EnerVista software: Click Actual Values > Front Panel. Figure 6-1: Front panel use in the software (C60 shown) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 530: Status

    Range: On, Off  STATUS: Off The L60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. 6.3.4 RxGOOSE DPS inputs ACTUAL VALUES ...
  • Page 531: Teleprotection Inputs

    CHAPTER 6: ACTUAL VALUES STATUS The L60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. 6.3.5 Teleprotection inputs ACTUAL VALUES ...
  • Page 532: Rxgoose Status

     Offline The L60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. actual value does not consider RxGOOSE that are not configured or are not used by any RxGOOSE All RxGOOSE Online Input.
  • Page 533: Digital Counters

     ETHERNET SEC LINK Range: Fail, OK  STATUS: Fail ETHERNET TER LINK Range: Fail, OK  STATUS: Fail These values indicate the status of the first, second, and third Ethernet links. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 534: Real Time Clock Synchronizing

     DIRECT INPUTS AVERATE MSG RETURN  TIME CH1: 0 ms  UNRETURNED MSG  COUNT CH1: 0 CRC FAIL COUNT  CH1: 0 AVERAGE MSG RETURN  TIME CH2: 0 ms L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 535: Direct Devices Status

    CHANNEL 1 STATUS data is being received from the remote terminal; If the value is “FAIL,” teleprotection enabled and data is not being received from the remote terminal. If “n/a,” teleprotection is disabled. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 536: Remaining Connection Status

    Range: 0 to 4G, blank if PRP disabled  The L60 is provided with optional PRP capability. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
  • Page 537: Txgoose Status

     ARP: The L60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. This status is relevant to R-GOOSE reception when configured for SSM or ASM reception modes. It is not relevant for GOOSE or for R-GOOSE in unicast reception mode.
  • Page 538 6.4.1.2 UR convention for measuring phase angles All phasors calculated by URs and used for protection, control and metering functions are rotating phasors that maintain the correct phase angle relationships with each other at all times. 6-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 539 For display and oscillography purposes the phase angles of symmetrical components are referenced to a common reference as described in the previous sub-section. WYE-connected instrument transformers • ABC phase rotation: • ACB phase rotation: The above equations apply to currents as well. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-13...
  • Page 540 * The power system voltages are phase-referenced – for simplicity – to V and V , respectively. This, however, is a relative matter. It is important to remember that the L60 displays are always referenced as specified under SETTINGS  SYSTEM SETUP  POWER SYSTEM  FREQUENCY AND PHASE REFERENCE The example above is illustrated in the following figure.
  • Page 541: Sources

    SRC 1 PHASOR Ic:  0.000 A 0.0° SRC 1 PHASOR In:  0.000 A 0.0° SRC 1 ZERO SEQ I0:  0.000 A 0.0° SRC 1 POS SEQ I1:  0.000 A 0.0° L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-15...
  • Page 542 SRC 1 PHASOR Vbc:  0.000 V 0.0° SRC 1 PHASOR Vca:  0.000 V 0.0° SRC 1 ZERO SEQ V0:  0.000 V 0.0° SRC 1 POS SEQ V1:  0.000 V 0.0° 6-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 543 φb: 0.000 VA SRC 1 APPARENT PWR  φc: 0.000 VA SRC 1 POWER FACTOR  3φ: 1.000 SRC 1 POWER FACTOR  φa: 1.000 SRC 1 POWER FACTOR  φb: 1.000 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-17...
  • Page 544 S = V x Î x Î x Î Eq. 6-1 When VTs are configured in delta, the L60 does not calculate power in each phase and three-phase power is measured as S = V x Î x Î Eq. 6-2...
  • Page 545: Synchrocheck

    SYNCHROCHECK 1  SYNSCP D_PH: 0.0° SYNCHROCHECK 1  V1 MAG: 0.000 kv SYNCHROCHECK 1  V1 ANG: 0.0° SYNCHROCHECK 1  V2 MAG: 0.000 kV SYNCHROCHECK 1  V2 ANG: 0.0° L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-19...
  • Page 546: Tracking Frequency

    = maximum nominal primary RMS value of the +IN and –IN inputs BASE SYNCHROCHECK = maximum primary RMS value of all the sources related to the +IN and –IN inputs BASE (Max Delta Volts) 6-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 547: Rxgoose Analogs

     0.000 The L60 is provided with optional GOOSE communications capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. The RxGOOSE Analog values display in this menu. The RxGOOSE Analog values are received via IEC 61850 GOOSE messages sent from other devices.
  • Page 548: Distance

    ZBG: 0.00 Ohms BG LOOP IMPEDANCE  ANGLE: 0.00 DEG CG LOOP RESISTANCE  RCG: 0.00 Ohms CG LOOP REACTANCE  XCG: 0.00 Ohms CG LOOP IMPEDANCE  ZCG: 0.00 Ohms 6-22 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 549: Records

    Range: not available if the source VTs are in the  00.0 km “Delta” configuration FAULT 1 RECLOSE Range: where applicable  SHOT: 0 FAULT 1 LOOP Range: 0 to 327.67 Ohms  RESIST: 0.00 Ohms L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-23...
  • Page 550: Event Records

    Each event record shows the event identifier/sequence number, cause, and date/time stamp associated with the event trigger. See the menu for clearing event records.  COMMANDS  CLEAR RECORDS 6-24 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 551: Oscillography

    A trigger can be forced here at any time by setting “Yes” to the FORCE TRIGGER? command. See the COMMANDS  CLEAR menu for information on clearing the oscillography records. RECORDS L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-25...
  • Page 552: Data Logger

    BREAKER OPERATING TIME All of the values are stored in non-volatile memory and retained with power cycling. 6-26 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 553: Product Information

    Date and time when the boot program was built. FPGA PROGRAM Range: 0.00 to 655.35  REVISION: 02.02 Revision number for FPGA. FPGA DATE: Range: YYYY/MM/DD HH:MM:SS  2016/09/15 16:41:32 Date and time when the FPGA was built. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 6-27...
  • Page 554 PRODUCT INFORMATION CHAPTER 6: ACTUAL VALUES The shown data is illustrative only. A modification file number of 0 indicates that, currently, no modifications have been installed. 6-28 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 555: Commands And Targets

    The commands menu contains relay directives intended for operations personnel. All commands can be protected from unauthorized access via the command password; see the Security section of chapter 5 for details. The following flash message appears after successfully command entry. COMMAND EXECUTED L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 556: Virtual Inputs

    This menu contains commands for clearing historical data such as the event records. Data is cleared by changing a command setting to “Yes” and pressing the key. After clearing data, the command setting automatically reverts to ENTER “No.” L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 557: Set Date And Time

    — This command causes the relay to scan the backplane for the hardware modules and update the UPDATE ORDER CODE order code to match. If an update occurs, the following message displays. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 558: Security

    Although the diagnostic information is cleared before the L60 is shipped from the factory, the user can want to clear the diagnostic information for themselves under certain circumstances. For example, you clear diagnostic information after replacement of hardware. Once the diagnostic information is cleared, all self-checking variables are reset to their initial state and diagnostics restart from scratch.
  • Page 559: Target Messages

    A target enables the EnerVista UR Setup software to monitor automatically and display the status of any active target messages of all the devices inserted into that site. Each L60 element with a TARGET setting has a target message that when activated by its element is displayed in sequence with any other currently active target messages in the menu.
  • Page 560 Contact Factory (xxx) • Latched target message: Yes. • Description of problem: One or more installed hardware modules is not compatible with the L60 order code. • How often the test is performed: Module dependent. • What to do: Contact the factory and supply the failure code noted in the display. The “xxx” text identifies the failed module (for example, F8L).
  • Page 561 Description of problem: A bad IRIG-B input signal has been detected. • How often the test is performed: Monitored whenever an IRIG-B signal is received. • What to do: Ensure the following: – The IRIG-B cable is properly connected. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 562 How often the test is performed: On any setting changes, when new settings were written to device. • What to do: Verify that the setting change was legitimate and essential for proper functioning of the protection and control system. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 563 Description of problem: The ambient temperature is greater than the maximum operating temperature (+80°C). • How often the test is performed: Every hour. • What to do: Remove the L60 from service and install in a location that meets operating temperature standards. UNEXPECTED RESTART: Press “RESET” key •...
  • Page 564 Description of problem: There is a problem with the Compact Flash memory in the CPU module. • How often the test is performed: On relay power-up and afterwards once every 24 hours. 7-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 565 Self Test Error • Description of problem: Seen until the builds is tagged as being 'release candidate' or 'gold' builds. • What to do: Update firmware to either of these builds. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 7-11...
  • Page 566 TARGETS MENU CHAPTER 7: COMMANDS AND TARGETS 7-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 567: Application Of Settings

    8.1 87PC phase comparison element 8.1.1 Overview The L60 provides high-speed protection of transmission lines against all phase and ground faults when operated in the “mixed-excitation” mode. The term “mixed-excitation”, when applied to phase comparison, describes a scheme that first mixes different sequence quantities in a given proportion and phase angle, then performs a phase-comparison based on this mix.
  • Page 568 The L60 allows you to check and set channel symmetry without using an oscilloscope, by means of FlexLogic operands and applying the corresponding current to the relays, which in turn key the PLC and consequently measure MARK and SPACE signals on the oscillography.
  • Page 569: Settings Example

    Different methods can be used. The L60 allows the customer to check and set phase delay without using an oscilloscope and by means of FlexLogic operands and applying the corresponding current to both relays. Oscillography shows the time difference (including PLC delay and line propagation time) between local and remote signals.
  • Page 570: Distance/backup Supervision

    FD INPUT 8.2 Distance/backup supervision 8.2.1 Overview As an economical approach to supply customer load, many high voltage (HV) lines have transformers tapped to the lines. The figure shows a typical configuration. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 571: Lines With Tapped Transformers

    LV bus fault can result in a loss of sensitivity. If the tapped transformer is a source of zero sequence infeed, then the L60 zero-sequence current removal has to be enabled as described in the next section.
  • Page 572: Transformer Load Currents

    8.2.3 Transformer load currents The L60 can be applied on the line with a tapped transformer. Since the tapped line can be energized from one terminal only, or there can be a low current flowing through the line, the phase-comparison element must set to provide stability.
  • Page 573: Tractional Load

    8.2.6 Tractional load Where tractional load is tapped from the line protected by the L60, significant and variable negative-sequence current can exist on the line, thereby not allowing sensitive FDL and FDH settings. On such lines, it is beneficial to detect faults based on change in the sequence components of the currents.
  • Page 574 2%. If an internal fault is detected, the challenge is to provide starting transmitting signals at both ends and to have enough operating quantity for arming FDH to operate and to allow tripping. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 575: Single-pole Tripping Applications

    DISTANCE/BACKUP SUPERVISION 8.2.8 Single-pole tripping applications The L60 provides functionality for single-pole tripping from 87PC, distance functions, or instantaneous overcurrent elements via the trip output element. 87PC can detect internal faults on the line but not faulted phases, since the phase currents are combined in one quantity.
  • Page 576: Phase Distance

    The current supervision alone does not prevent maloperation in such circumstances. Keep in mind that the fuse failure element provided on the L60 needs some time to detect fuse fail conditions. This can create a race between the instantaneous zone 1 and the fuse failure element. Therefore, for maximum security, it is recommended to both set the current supervision above the maximum load current and use the fuse failure function.
  • Page 577: Ground Distance

    Ground directional overcurrent functions available in the relay can be used in conjunction with the Zone 2 distance element to key the scheme and initiate its operation. This provides increased coverage for high-resistance faults. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 8-11...
  • Page 578: Series Compensated Lines

    This situation is encountered when it is desired to account for the zero sequence inter-circuit mutual coupling. This is not a problem for the ground distance elements in the L60 that do have a current reversal logic built into their design as part of the technique used to improve ground fault directionality.
  • Page 579 As the characteristics of sub-synchronous oscillations are in complex relations with fault and system parameters, no solid setting recommendations are given with respect to extra security margin for sub-synchronous oscillations. It is strongly recommended to use a power system simulator to verify the reach settings or to use an adaptive L60 feature for dynamic reach control.
  • Page 580: Understanding L60 Oscillography

    8.5 Understanding L60 oscillography 8.5.1 Overview The L60 oscillography feature is a powerful tool for tuning, commissioning, and troubleshooting. It also helps to understand the theory of phase-comparison and how the L60 relay incorporates standard analog phase comparison principles. The...
  • Page 581: Two-breaker Configuration

    8.5.2 Two-breaker configuration The L60 has extra security when two CTs are brought into the relay individually and summed internally. Two currents are processed separately to derive the operating signal for each breaker, which is then used for fault detectors and the forming of positive and negative squares.
  • Page 582 UNDERSTANDING L60 OSCILLOGRAPHY CHAPTER 8: APPLICATION OF SETTINGS 8-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 583: Theory Of Operation

    Such a signal transmitted at B and received at A can be compared with the current at A to determine whether the two quantities are in phase or out of phase with each other. Conversely, the current at terminal B can be compared with the signal received from terminal A. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 584 ON, then the MARK block corresponds to a received remote signal while the SPACE block corresponds to no signal. Conversely, if the negative portion of the current wave keyed the transmitter to ON, then the SPACE block represents the received signal. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 585 Phase angle differences between the currents entering both ends of the line as a result of phase angle differences in the driving system voltages • Load and charging currents of the line • Transit time of the communication signal • Unsymmetrical build-up and tail-off times of the receiver L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 586 Figure 2C illustrates a tripping scheme while Figure 2D a blocking scheme. Here again, the integrator is, in practice, actually set for 3 to 4 ms. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 587 However, at this point, note that phase comparison on a continuous basis is not permitted mainly because it tends to reduce the security of the scheme. For this reason, fault L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 588 Single-Phase Comparison Blocking Scheme Principle figure that follows. This is a somewhat more fully developed version of 2D, and the same logic is present at both ends of a two-terminal line. Figure 9-4: Three-terminal line phase comparison L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 589: Variations In Phase Comparison Schemes

    These differences relate to the following: • Phase comparison excitation (component or current to be compared) • Pure phase comparison versus combined phase and directional comparison • Blocking versus tripping schemes • Single versus dual phase comparison L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 590: Phase Comparison Excitation

    The following figure shows the relative phase positions of the outputs of a positive sequence network, a negative sequence network, and a zero sequence network all referenced to phase A. The transfer functions of these three networks are given by the following equations. Eq. 9-1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 591 “net” (load plus fault) positive sequence current entering one end of the line relative to that entering the other end depends on these same factors plus the relative magnitude of the fault and load components of current. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 592 The second and third rows of the table indicate the relative phase positions of the positive plus negative, and positive plus negative plus zero sequence components respectively. These appear to be more unsatisfactory. Rows 4 and 5 combine the components differently and both appear to yield much better results. 9-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 593 • Use the fewest number of sequence components • The effects of load current must be minimized. Thus, weight negative and/or zero sequence components over the positive sequence components L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-11...
  • Page 594: Blocking Versus Tripping Schemes

    Figure 2D is representative of a blocking pilot scheme where tripping takes place if there is no receiver output during the half cycle that the local current is positive. 9-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 595 There is the build up time in the receiver from the instant the signal appears at its input until the output reflects the change of state. This time plus the build up time in the transmitter is called the channel operating time. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-13...
  • Page 596 Faults external to the protected line have no affect on the signal attenuation since transmission lines that incorporate power line carrier channels are trapped at each end (see the figure). 9-14 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 597 SQ AMPs are attempting to trip via AND1. Thus, the receivers supply the bottom input to AND1, and tripping takes place when FDH operates to provide the third input. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-15...
  • Page 598 When a fault occurs, FDL picks-up very fast to restore the keying function to SQ AMP. This operation resembles a blocking scheme, although it is often called a permissive tripping scheme. 9-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 599 During external faults it is important that the blocking signal be isolated from the fault because loss of the signal can result in a false trip. The line traps provide this isolation. Figure 9-11: Single-phase comparison tripping scheme L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-17...
  • Page 600 This approach tends to make the blocking scheme resemble the tripping scheme since the receiver must now indicate an intact channel in order to trip. 9-18 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 601 Aside from the considerations involved in tripping for a fault with single-end feed, which were discussed previously, L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-19...
  • Page 602: Single Versus Dual Phase Comparison

    Under such conditions, the single phase-comparison has to wait until the next positive half-cycle, while the dual phase-comparison can trip on the upcoming negative half-cycle. 9-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 603 AND3, FDL, NOT1, and the center frequency. The transmitter can then be arranged to send the low-shift frequency continuously except when keyed by the positive SQ. AMP to the high shift frequency. This arrangement, though simpler than the three-frequency scheme, is deemed to be less secure. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-21...
  • Page 604: Refinements To Basic Schemes

    For example, if an ON-OFF transmitter were keyed on for a half-cycle and then off for a half-cycle, and so on, the remote receiver output can be on for more than a half-cycle and off for less than a half-cycle. This affect is primarily due to 9-22 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 605 (1 millisecond per 186 miles) plus the delay in the receiver itself. All of these compound to produce a receiver output that can be significantly phase-delayed from the current at the remote end of the line. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-23...
  • Page 606 NOT input to AND4. This blocking of a trip output persists for the drop-out time setting of the transient blocking timer after the AND3 output disappears as a result of FDH resetting or the trip integrator producing an output. 9-24 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 607 FDH picks up. Benefits of this scheme are that operating time is faster compared with single phase-comparison with enough security built into the scheme. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-25...
  • Page 608: Multi-terminal Lines

    For short transmission lines, the charging current is a small factor and can therefore be treated as an unknown error. In this application, the L60 can be deployed without voltage sensors and the line charging current is included as a constant term in the total variance, increasing the differential restraint current.
  • Page 609 Since the zero- sequence voltage is not available, the L60 cannot compensate for the zero sequence current. The compensation scheme continues to work with the breakers open, provided that the voltages are measured on the line- side of the breakers.
  • Page 610: L60 Signal Processing

    The L60 samples currents and voltage inputs at a rate of 64 samples per cycle. Current samples are pre-filtered using band-pass Finite Response Filters (FIR), with a weighted average of signal samples in a selected data window, to remove the decaying DC component and low-frequency distortions.
  • Page 611 The L60 implementation of a phase comparison relay uses a pair of short-window FIR filters to derive the D-Q components while providing for extra transient filtering.
  • Page 612 –0.005 pu of the CT nominal. To ensure security and dependability for blocking schemes, especially during low current conditions when pulses might be shortened, square pulses are created as follows: Eq. 9-8 9-30 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 613 The ‘pulse’ combination logic ensures security and dependability. In this respect, a distinction must be made between tripping and blocking schemes. The following figure illustrates the dual breaker logic for permissive (section a) and blocking (section b) transmit schemes. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-31...
  • Page 614 It must be kept in mind that the positive and negative pulses do not necessarily complement each other, and therefore, one must not substitute not(positive polarity) = negative polarity. 9-32 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 615 The phase comparison algorithm has a well-understood security margin due to the averaging action of the trip integrators. The integrators deal with this kind of noise, yielding a predictable response that is transparent and easy to grasp by the user. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-33...
  • Page 616 Figure 9-25: Pulse asymmetry and correction (channel delay omitted for simplicity) The following figure illustrates the alignment algorithm. It shows local current, received RX voltage, and the remote pulse aligned with the local pulses accounting for the channel delay setting. 9-34 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 617 The coincidence condition is driving an explicitly implemented integrator (summator). In the L60, the integrator counts up by 10 units if the coincidence input is logic 1, counts down by 5 counts if the coincidence input is momentarily logic 0, and counts down by 20 if the input is in logic 0 for extended periods of time.
  • Page 618: Single-pole Tripping

    Figure 9-27: Trip integration logic (relay COMTRADE record) The L60 can be programmed to perform an automatic check-back. Under normal system conditions, a relay can initiate transmission and modulate the analog signal to exchange small amounts of information. The ability to abort in cases of system faults is a key to successful deployment.
  • Page 619 • Initiates blocking of protection elements that can potentially maloperate when a breaker pole is open • Instructs the phase selector to de-assert all outputs, as an open pole invalidates calculations L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-37...
  • Page 620 CHAPTER 9: THEORY OF OPERATION The operation of the scheme in a single breaker arrangement is described as follows. The line is protected by a L60 using the 87PC, line pickup, and zone 1 phase and ground distance elements. 87PC and/or zone 1 is configured to issue a single- pole trip when appropriate ( “GND DIST Z1...
  • Page 621: Phase Selection

    (depending on the number of shots programmed). 9.2.2 Phase selection The L60 uses phase relations between current symmetrical components for phase selection. First, the algorithm validates if there is enough zero-sequence, positive-sequence, and negative-sequence currents for reliable analysis. The comparison is adaptive;...
  • Page 622 Asserted when a phase A to B to ground fault is detected PHASE SELECT BCG Asserted when a phase B to C to ground fault is detected PHASE SELECT CAG Asserted when a phase C to A to ground fault is detected 9-40 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 623: Fault Locator

    The single-ended fault location method assumes that the fault components of the currents supplied from the local (A) and remote (B) systems are in phase. The figure shows an equivalent system for fault location. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-41...
  • Page 624 Depending on the fault type, appropriate voltage and current signals are selected from the phase quantities before applying the preceding equation (the superscripts denote phases, the subscripts denote stations). For AG faults: Eq. 9-13 9-42 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 625 If the VTs are connected in a delta configuration, fault location is performed based on the delta voltages and zero-sequence voltage approximated based on the zero-sequence current: Eq. 9-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 9-43...
  • Page 626 FAULT LOCATOR CHAPTER 9: THEORY OF OPERATION where Z is the equivalent zero-sequence impedance behind the relay as entered under the fault report setting menu. SYS0 Figure 9-32: Fault locator scheme 9-44 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 627: Maintenance

    UR Family Communications Guide for the entries. The upper part of the window displays values. The lower part of the window is for factory service use. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 10-1...
  • Page 628 Float — A numbering system with no fixed number of digits before or after the decimal point. An example is 0.000000. Binary — A numbering system using 0 and 1. An example is 0000-0000-0000-0000. Entries are not saved when closing the window. 10-2 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 629: General Maintenance

    GENERAL MAINTENANCE 10.2 General maintenance The L60 requires minimal maintenance. As a microprocessor-based relay, its characteristics do not change over time. Expected service life is 20 years for UR devices manufactured June 2014 or later when applied in a controlled indoors environment and electrical conditions within specification.
  • Page 630: Cybersentry Security Event Files

    15 = Role Log in 10.3.1.2 Setting changes file The SETTING_CHANGES.LOG file stores all the setting changes. A total of 1024 events are stored in a circular buffer in non- volatile memory. 10-4 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 631: Compare Settings

    Comparison Report: Sequential File 1, File 2 Layout — When disabled (default), the report shows only what differs, as shown in the previous figure. When enabled, the report indicates differences by device. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 10-5...
  • Page 632: Back Up And Restore Settings

    LED operands are not modeled. If the block setting of the Phase IOC is configured with LED operands, its displays as TBD in IID and CID files, the web interface, or in an MMS client. 10-6 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 633 Hqve this option enabled when you want to keep the IID file from the UR device instead of from another tool. The location of the file is C:\ProgramData\GE Power Management\urpc\Offline, for example.
  • Page 634: Restore Settings

    IID type backup was created either using the EnerVista UR Setup software in online mode or by using any of the supported file transfer protocols. Note that TFTP cannot be used here, as TFTP "put" mode is disabled for security reasons. 10-8 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 635 To restore settings from an IID file using EnerVista software: In Windows, make a copy the IID file with a cid extension. Connect to the device in the Online Window area. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 10-9...
  • Page 636: Upgrade Software

    UR 7.4 can be used to access multiple UR devices that have version 7.4x, 7.2x, and 6.0x firmware installed. Existing installations do not need to be uninstalled before upgrade. You can also downgrade the software; use the same procedure. 10-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 637: Upgrade Firmware

    If upgrading both EnerVista software and L60 firmware, upgrade the software first. The firmware of the L60 device can be upgraded, locally or remotely, using the EnerVista software. Upgrades are possible for the same release (such as 7.01 to 7.02) and from one firmware version to another (such as 7.2 to 7.3).
  • Page 638: Replace Module

    To avoid damage to the equipment, use proper electrostatic discharge protection (for example, a static strap) when coming in contact with modules while the relay is energized. 10-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 639 Open the enhanced faceplate to the left once the thumb screw has been removed. This allows for easy access of the modules for withdrawal. The new wide-angle hinge assembly in the enhanced front panel opens completely and allows easy access to all modules in the L60. Figure 10-10: Modules inside relay with front cover open (enhanced faceplate) The standard faceplate can be opened to the left once the black plastic sliding latch on the right side has been pushed up, as shown below.
  • Page 640: Battery

    Replace the battery with the identical make and model. For example, do not use a rechargeable battery. Observe the + and - polarity of the battery and replace it with the same polarity as marked on the battery holder. 10-14 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 641: Dispose Of Battery

    Batteriet er forsynet med indgraveret symboler for hvad batteriet indeholder: kadmium (Cd), bly (Pb) og kviksølv (Hg). Europæiske brugere af elektrisk udstyr skal aflevere kasserede produkter til genbrug eller til leverandøren. Yderligere oplysninger findes på webstedet www.recyclethis.info. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 10-15...
  • Page 642 (Cd), ólom (Pb) vagy higany (Hg) tartalomra utaló betűjelzés. A hulladék akkumulátor leadható a termék forgalmazójánál új akkumulátor vásárlásakor, vagy a kijelölt elektronikai hulladékudvarokban. További információ a www.recyclethis.info oldalon. 10-16 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 643 (Cd), chumbo (Pb), ou o mercúrio (hg). Para uma reciclagem apropriada envie a bateria para o seu fornecedor ou para um ponto de recolha designado. Para mais informação veja: www.recyclethis.info. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL 10-17...
  • Page 644: Clear Files And Data After Uninstall

    +86-21-2401-3208 India +91 80 41314617 From GE Part Number 1604-0021-A1, GE Publication Number GEK-113574. 10.10 Clear files and data after uninstall The unit can be decommissioned by turning off power to the unit and disconnecting the wires to it. Files can be cleared after uninstalling the EnerVista software or UR device, for example to comply with data security regulations.
  • Page 645: Repairs

    Customers are responsible for shipping costs to the factory, regardless of whether the unit is under warranty. • Fax a copy of the shipping information to the GE Grid Solutions service department in Canada at +1 905 927 5098. Use the detailed return procedure outlined at https://www.gegridsolutions.com/multilin/support/ret_proc.htm...
  • Page 646: Disposal

    European Union, dispose of the battery as outlined earlier. To prevent non-intended use of the unit, remove the modules, dismantle the unit, and recycle the metal when possible. 10-20 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 647: A Flexanalog A.1 Flexanalog Items

    SRC 1 I_1 Angle Degrees Source 1 positive-sequence current angle 6175 SRC 1 I_2 Mag Amps Source 1 negative-sequence current magnitude 6177 SRC 1 I_2 Angle Degrees Source 1 negative-sequence current angle L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 648 SRC 3 I_2 Mag Amps Source 3 negative-sequence current magnitude 6305 SRC 3 I_2 Angle Degrees Source 3 negative-sequence current angle 6306 SRC 3 Igd Mag Amps Source 3 differential ground current magnitude L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 649 SRC 1 Vx Angle Degrees Source 1 auxiliary voltage angle 6691 SRC 1 V_0 Mag Volts Source 1 zero-sequence voltage magnitude 6693 SRC 1 V_0 Angle Degrees Source 1 zero-sequence voltage angle L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 650 SRC 3 Vab Angle Degrees Source 3 phase AB voltage angle 6808 SRC 3 Vbc Mag Volts Source 3 phase BC voltage magnitude 6810 SRC 3 Vbc Angle Degrees Source 3 phase BC voltage angle L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 651 Source 1 phase A reactive power 7180 SRC 1 Qb Vars Source 1 phase B reactive power 7182 SRC 1 Qc Vars Source 1 phase C reactive power 7184 SRC 1 S Source 1 three-phase apparent power L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 652 SRC 4 Qa Vars Source 4 phase A reactive power 7276 SRC 4 Qb Vars Source 4 phase B reactive power 7278 SRC 4 Qc Vars Source 4 phase C reactive power L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 653 Source 3 phase A total harmonic distortion (THD) 8873 SRC 1 Phase B THD Source 3 phase B total harmonic distortion (THD) 8874 SRC 1 Phase C THD Source 3 phase C total harmonic distortion (THD) L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 654 Degrees Synchrocheck 1 delta_phase 10863 Synchchk 1 Synchscp’ Degrees Synchrocheck 1 _synchscope 10864 Synchchk 2 Delta V Volts Synchrocheck 2 delta voltage 10866 Synchchk 2 Delta Phs Degrees Synchrocheck 2 delta phase L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 655 Breaker 1 amp max phase A 12050 Brk 1 Amp Max B kA2-cyc Breaker 1 amp max phase B 12052 Brk 1 Amp Max C kA2-cyc Breaker 1 amp max phase C L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 656 RTD input 6 actual value 13558 RTD Ip 7 RTD input 7 actual value 13559 RTD Ip 8 RTD input 8 actual value 13560 RTD Ip 9 RTD input 9 actual value A-10 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 657 CT bank1 compensated I2 current 14260 CT2 COMP I1 Mag Amps CT bank2 compensated I1 current 14262 CT2 COMP I2 Mag Amps CT bank2 compensated I2 current 24432 Communications Group Groups communications group L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL A-11...
  • Page 658 RxGOOSE Analog 20 RxGOOSE analog input 20 45624 RxGOOSE Analog 21 RxGOOSE analog input 21 45626 RxGOOSE Analog 22 RxGOOSE analog input 22 45628 RxGOOSE Analog 23 RxGOOSE analog input 23 A-12 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 659 RxGOOSE Analog 29 RxGOOSE analog input 29 45642 RxGOOSE Analog 30 RxGOOSE analog input 30 45644 RxGOOSE Analog 31 RxGOOSE analog input 31 45646 RxGOOSE Analog 32 RxGOOSE analog input 32 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL A-13...
  • Page 660 FLEXANALOG ITEMS APPENDIX A: FLEXANALOG OPERANDS A-14 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 661: B Radius Server Configuration

    UR device for successful authentication, and the shortname is a short, optional alias that can be used in place of the IP address. client 10.0.0.2/24 { secret = testing123 shortname = private-network-1 In the <Path_to_Radius>\etc\raddb folder, create a file called dictionary.ge and add the following content. # ########################################################## GE VSAs ############################################################ VENDOR...
  • Page 662 8.2. Access Settings > Product Setup > Security. Configure the IP address and ports for the RADIUS server. Leave the GE vendor ID field at the default of 2910. Update the RADIUS shared secret as specified in the clients.conf file.
  • Page 663: C Command Line Interface

    This setting cannot be changed using the command line interface. • Use quotes ("") to enclose any parameter containing a space • Commands, options, and parameters are case sensitive L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 664 For non-CyberSentry devices — Set <authentication type> to "traditional". Note that <authentication type> defaults to "traditional" if not specified. Set <account> to "COMMANDS" or "SETTINGS". If not specified, the SETTINGS account is used. Example: SetupCLI URPC login -d "C30 Melbourne" -A traditional -a SETTINGS -w 1password1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 665 SetupCLI <Application> getsettings -d <device> -f <File> [-s] Read settings from device <device> and save them to the .urs file <File>. The <File> must not already exist. The default path to the output file is C:\Users\Public\Documents\GE Power Management\URPC\Data Example: SetupCLI URPC getsettings -d C30 -f "C30 Markham.urs"...
  • Page 666 SetupCLI URPC getsettings -d demoDevice -f devicefile.urs SetupCLI URPC compare -f existingfile.urs -r devicefile.urs -o output.txt The output is similar to the following: Comparing settings file aaa.urs : C:\Users\Public\Documents\GE Power Management\URPC\Data\ with bbb.urs : C:\Users\Public\Documents\GE Power Management\URPC\Data\ Setting Name (Group,Module,Item) Value...
  • Page 667 SetupCLI URPC getsettings -d DEV@SETUP_CLI -f "example file.urs" SetupCLI URPC logout -d DEV@SETUP_CLI SetupCLI URPC exit DEV@SETUP_CLI has to be used as the device name in the commands followed by the 'adddevice' command. L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 668 COMMAND LINE INTERFACE APPENDIX C: COMMAND LINE INTERFACE L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 669: Revision History

    D.1 Warranty For products shipped as of 1 October 2013, GE Grid Solutions warrants most of its GE manufactured products for 10 years. For warranty details including any limitations and disclaimers, see the GE Grid Solutions Terms and Conditions at https://www.gegridsolutions.com/multilin/warranty.htm...
  • Page 670 8 December 2016 16-3319 1601-0082-AE1 7.41x 31 January 2017 17-3427 Table D-2: Major changes for L60 manual version AE1 (English) Page Description General revision Added routable GOOSE content in chapters 2 and 5 3-36 Updated RS422 and Fiber Interface Connection figure for the clock channels (from 7a and 7b to 1a and 1b)
  • Page 671 APPENDIX D: MISCELLANEOUS REVISION HISTORY Table D-3: Major changes for L60 manual version AC1 (English) Page Description General revision. Added online help and updated generic online help. Deleted EAC logo from title page and deleted EAC certification from Approvals specifications because document not...
  • Page 672 Added Software Upgrade section to the Maintenance chapter Moved communications appendices B through F to new UR Series Communications Guide for UR 7.3x AB1 Updated product warranty from 24 months to 10 years L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 673 Contact Output FREQ Frequency Communication Frequency-Shift Keying COMM Communications File Transfer Protocol COMP Compensated, Comparison FlexElement™ CONN Connection Forward CONT Continuous, Contact CO-ORD Coordination Generator Central Processing Unit GDOI Group Domain of Interpretation L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 674 Manual / Manually Pulse Width Modulated Maximum Power Model Implementation Conformance Minimum, Minutes QUAD Quadrilateral Man Machine Interface Manufacturing Message Specification Rate, Reverse Minimum Response Time Registration Authority Message Reach Characteristic Angle L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 675 Time Undercurrent Time Undervoltage TX (Tx) Transmit, Transmitter Under Undercurrent Utility Communications Architecture User Datagram Protocol Underwriters Laboratories UNBAL Unbalance Universal Relay Universal Recloser Control .URS Filename extension for settings files Undervoltage L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 676 ABBREVIATIONS L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 677 ..................2-21 Alarm LEDs ...................5-107 Auxiliary voltage channel ............... 3-11 AND gate explained ................4-54 Auxiliary voltage metering ............. 6-17 ANSI device numbers ................2-3 AWG wire size ........3-11, 3-30, 3-34, 3-36, 3-37 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 678 C37.94 communications ............. 3-38, 3-41 timeout ....................5-39 Caution symbol in Offline Window ........... 4-40 web server ................... 5-86 CE certification ..................2-36 Compare settings ................10-5 Certification .................... 2-36 Changes ......................D-1 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 679 ..............5-296 IAC ......................5-225 FlexLogic operands ...............5-150 IEC ......................5-223 logic diagram ...................5-295 IEEE .......................5-222 settings ....................5-294 inverse time undervoltage ............5-264 Digital outputs types ....................5-222 see Contact outputs Cutout, panel ...................3-2, 3-3 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 680 DOS partition alarm error message ......... 7-10 EVENTS setting ..................5-5 Downgrade firmware ..............10-11 Export settings to file ................ 10-6 Downgrade software ..............10-10 Download files ..................10-3 Drag and drop files ................4-3 F485 ......................3-45 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 681 ...................5-165 use ......................4-15 pickup ....................5-166 use in EnerVista ................4-15, 6-3 settings ....................5-164 variations ..................... 4-19 specifications ..................2-24 FUNCTION setting ..................5-5 Fuse failure ...................5-312 Fuse specifications ................2-29 Fuses not field-replaceable ............10-19 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 682 ..................5-86 IEC 60870-5-103 protocol Inter-relay communication specifications ......2-32 explained ..................... 5-89 Inverse time undervoltage ............5-264 settings ....................5-89 IEC 60870-5-104 see Phase, Ground, and Neutral IOCs select protocl ..................5-38 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 683 Local Setting Authorization ............10-12 Module failure error ..............7-6, 7-7 Lockout from software ..............5-14 Log in with password ............3-59, 5-10 Logic diagram explained ..............4-32 Logic diagrams, create ..............4-33 Logic gates, FlexLogic ............4-54, 5-158 L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
  • Page 684 ....................5-100 FlexLogic operands ...............5-151 specifications ..................2-25 logic diagram ...................5-241 via EnerVista software ..............4-2 polarization ..................5-239 Out of service ....................5-1 settings ....................5-236 Out-of-step tripping ............2-23, 5-213 specifications ..................2-20 viii L60 LINE PHASE COMPARISON SYSTEM – INSTRUCTION MANUAL...
