To capture Audio I2S (Inter-IC Sound):
Audio captured over the I2S interface is displayed in the Instant Audio pane.
1. Select the Wired tab.
2. Check the Audio I2S: Inter-IC Sound check box.
3. Click OK.
4. Attach the Flying Leads Cable between the IO Probe connector on the analyzer's back-panel
and the Audio I2S interface. Use pin assignments shown in Recording Options, or specify
desired pin assignments. See Appendix A – Flying Leads Cable for details.
To increase or decrease the sensitivity of the analyzer's receivers:
1. Slide the Radio RF Gain slide bar to the right (to increase sensitivity) or to the left (to
decrease sensitivity).
2. Click OK.
The Radio RF Gain setting is set to a nominal default value, which is
appropriate for almost all cases.
adjustment.
6.3

Selecting an Analyzer

It is possible that multiple Bluetooth Explorer 400 analyzers may be attached to a single PC
hosting the analyzer desired for recording.
To select an analyzer:
1. Select Record | Select an analyzer from the menu.
Alternatively, select the drop-down arrow located on the Record
toolbar.

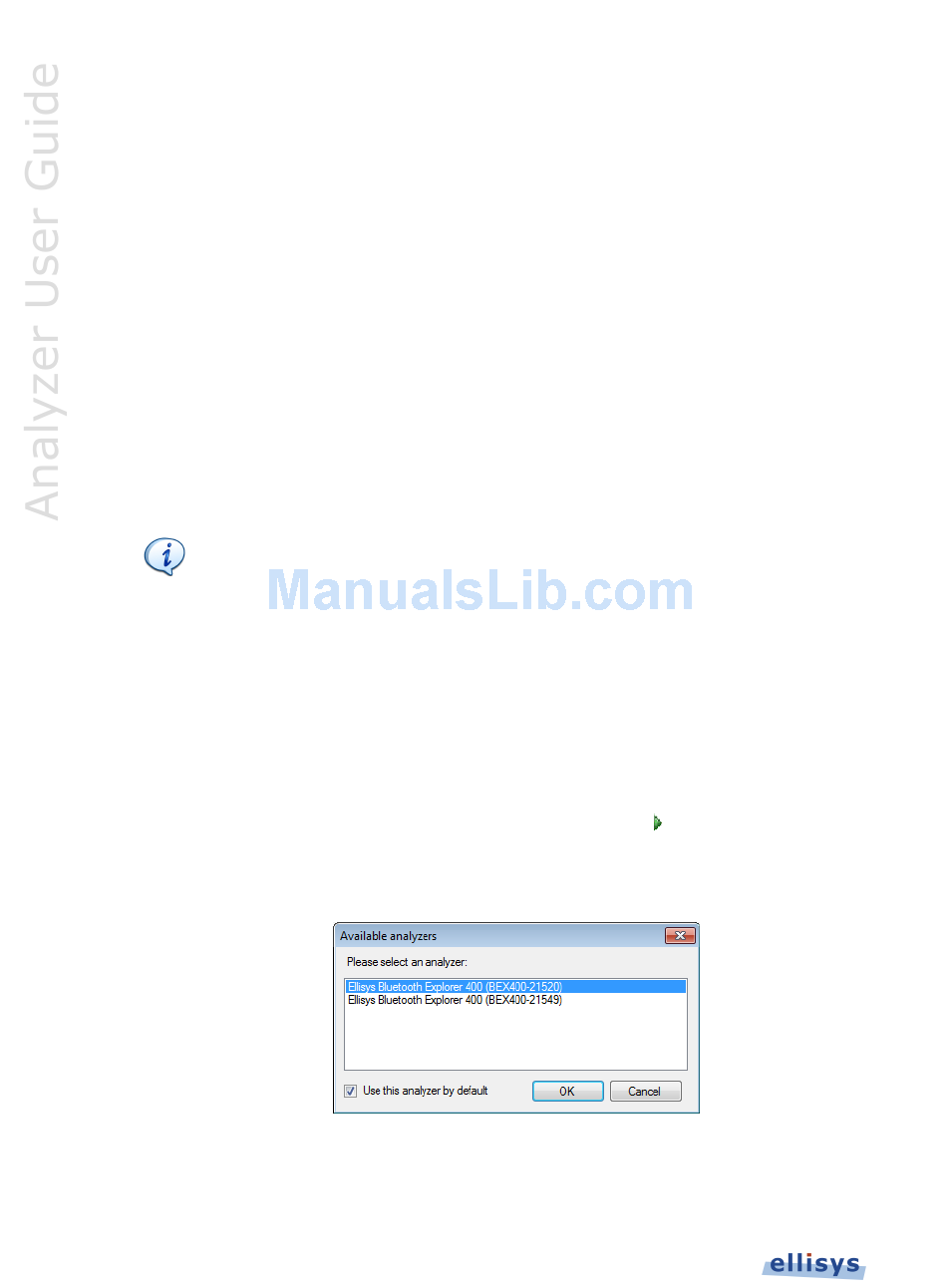

The Available analyzers dialog appears:
2. Select the desired analyzer.
3. Click on OK.
66 of 201 | Capturing Traffic
In most cases, this slide bar will not need
button located on the
