To set a time format:

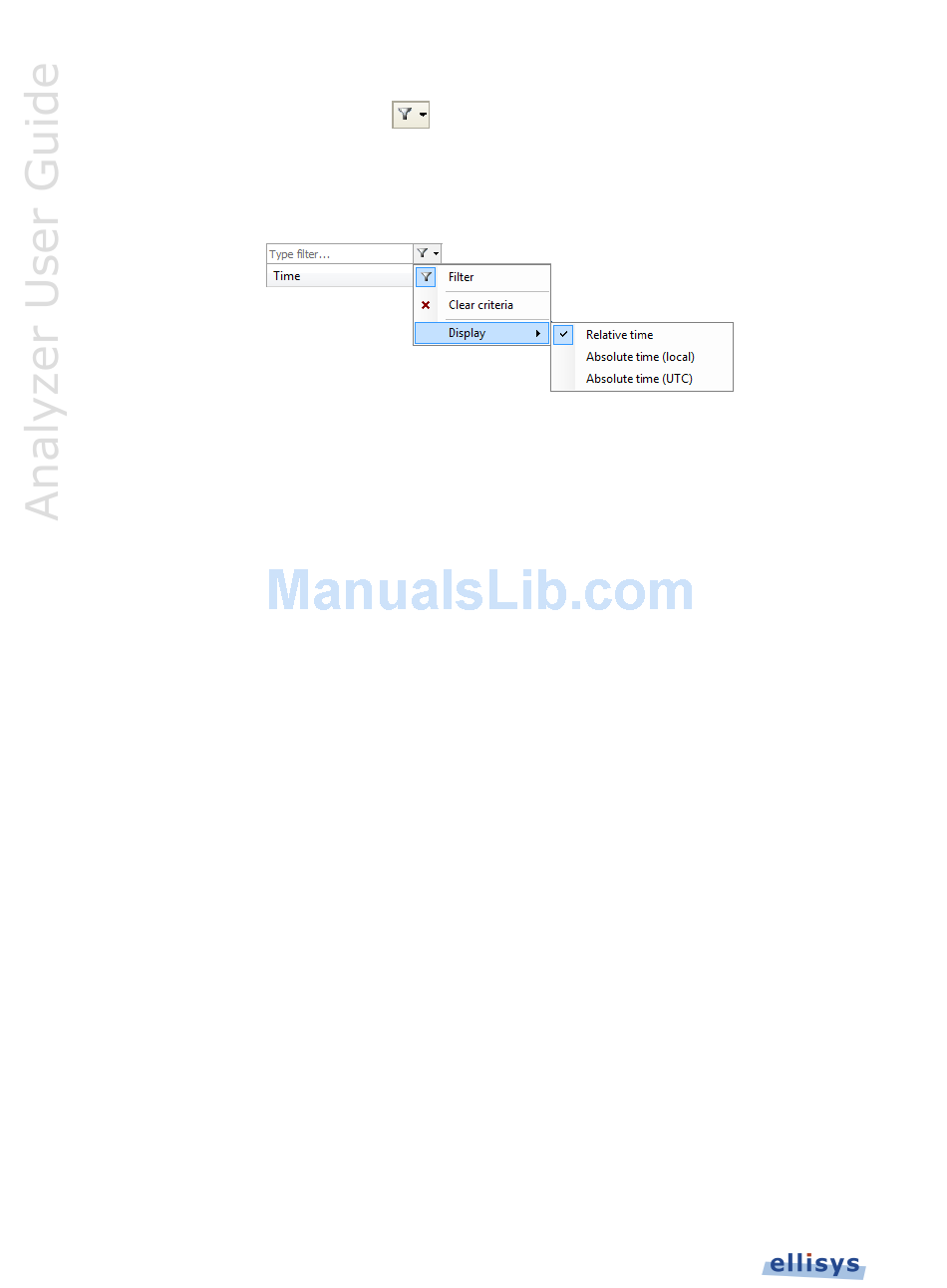

1. Click on the Filter selection icon associated with the Time column.
2. Select Display.
3. The Time Format menu appears:
4. Select the time format desired.
5. The Overview's Time column is populated with the selected time format.
To set a zero time reference for Delta time:
1. Right-click anywhere in the Overview.
2. Click on Set Time Reference.
The selected event in the Overview is assigned a timestamp of zero. Events occurring after the
zero-stamped event are incremented with positive timestamps, and events occurring before the
zero-stamped event are incremented with negative timestamps. The Instant Timing, Instant
Piconet, Instant Spectrum view, and Security panes are updated with the new timestamp value.
To reset a time reference to the original value:
1. Right-click anywhere in the Overview.
2. Select Reset Time Reference.
The events captured are reset with the timestamp values originally when the capture was
taken.
7.5

Synchronization to Other Panes

By default, the Overviews are automatically synchronized to other panes in order to give the
user a comprehensive understanding of traffic captured, and to ease navigation. Navigation
through an Overview will cause synchronized tracking in the Instant Timing pane, the Details
pane, the Instant Spectrum view, Instant Channels pane, Instant Throughout pane, Instant
Audio pane, and the Raw Data pane.
Conversely, selection of timestamps located in the Security pane and Instant Piconet pane allow
the user to jump to relevant locations in the Overviews.
86 of 201 | Overview Windows
