4. Open the Instant Spectrum view (View | Instant Spectrum) and select the desired packet
(or mouse-over).
Captured Wireless Spectrum information is displayed along with any capture Bluetooth packets:
To view the AFH Highlighting with Wireless Spectrum Enabled:
1. Take a capture with Wireless Spectrum enabled, or open a capture that was taken with
Wireless Spectrum capture enabled.

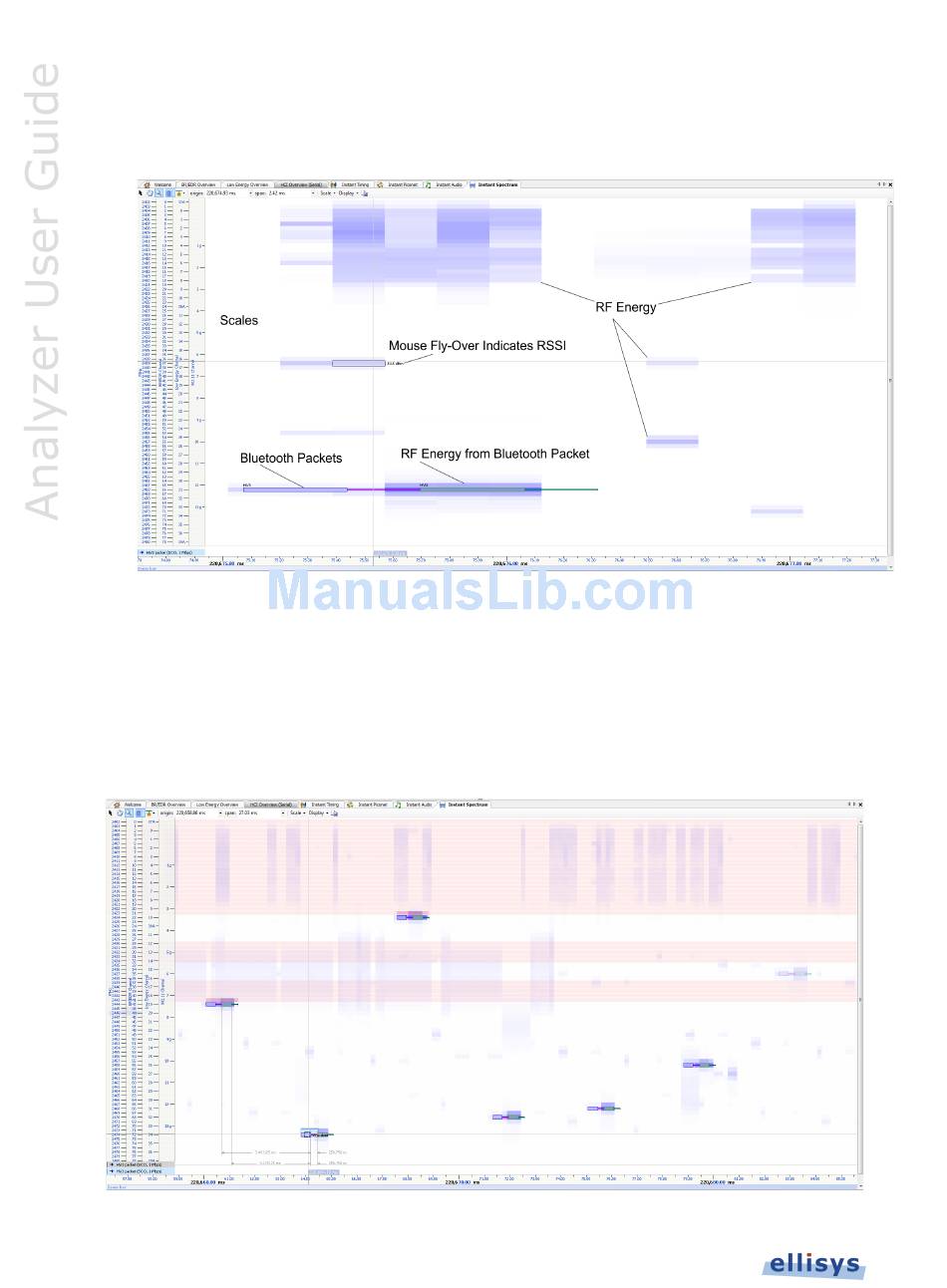

AFH Highlighting is displayed along with Wireless Spectrum information. In the figure below,
the Instant Spectrum shows both raw RF energy and Bluetooth packets. Note the presence of
Wi-Fi traffic in the highlighted areas and the absence of Bluetooth packets in these areas:
