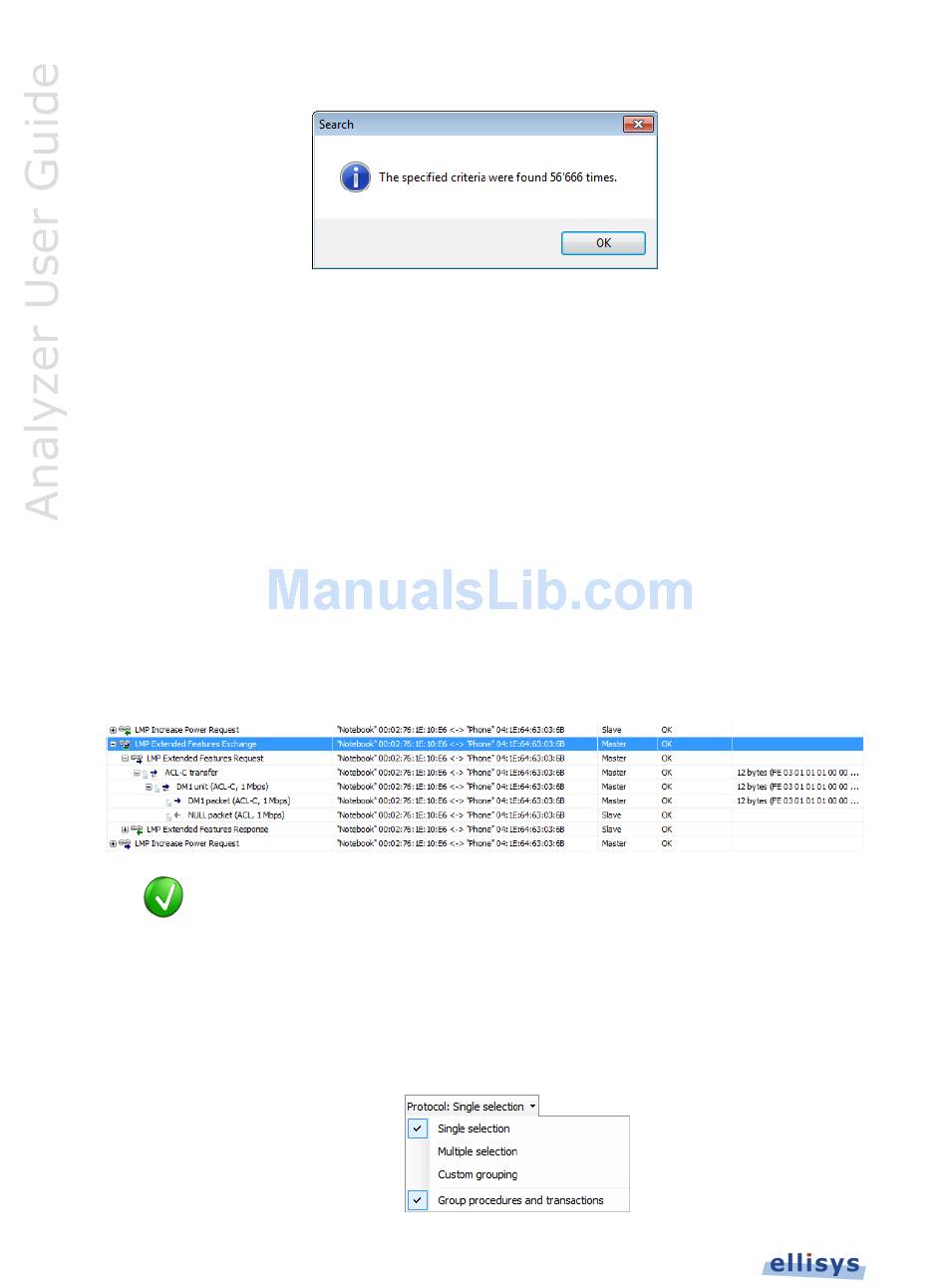

A count of items matching the criteria is displayed:
7.3

Grouping and Ungrouping

The application provides an option to group or ungroup protocols and profiles as displayed in
the Overview. This allows the user to view traffic in high level abstractions (e.g., RFCOMM) or
to drill down to mid-level abstractions (e.g., L2CAP) or lower-layers such as baseband and
packet levels. An option to group or not group procedures and transactions is also provided.
Additional options to control the displayed protocols, profiles, and other filtering options are
described in Chapter 8, Display Filters.
To collapse or expand protocols and profiles in the Overview:
1. Select the desired item in the Overview.
2. Select the + icon associated with the item to expand (or double-click) or select the – icon
associated with the desired item to collapse (or double-click).
The selected item is expanded or collapsed as shown:
When grouping is enabled, the number of consecutive events is listed in
parentheses along with the grouped item, as shown on the NULL packet in the
figure above.
To enable grouping of procedures and transactions:
1. Select Group Procedures and Transactions from the Protocol drop-down menu on the
Tool Bar:
84 of 201 | Overview Windows
