17.1 Abstraction and Relationship to Overviews

The Details pane will show all elements of higher level abstracts when these are selected, and
as lower-level abstracts are exposed in the Overview and selected, the Details pane will drill-
down to match the abstraction level selected (e.g., transaction, request, response, packet,

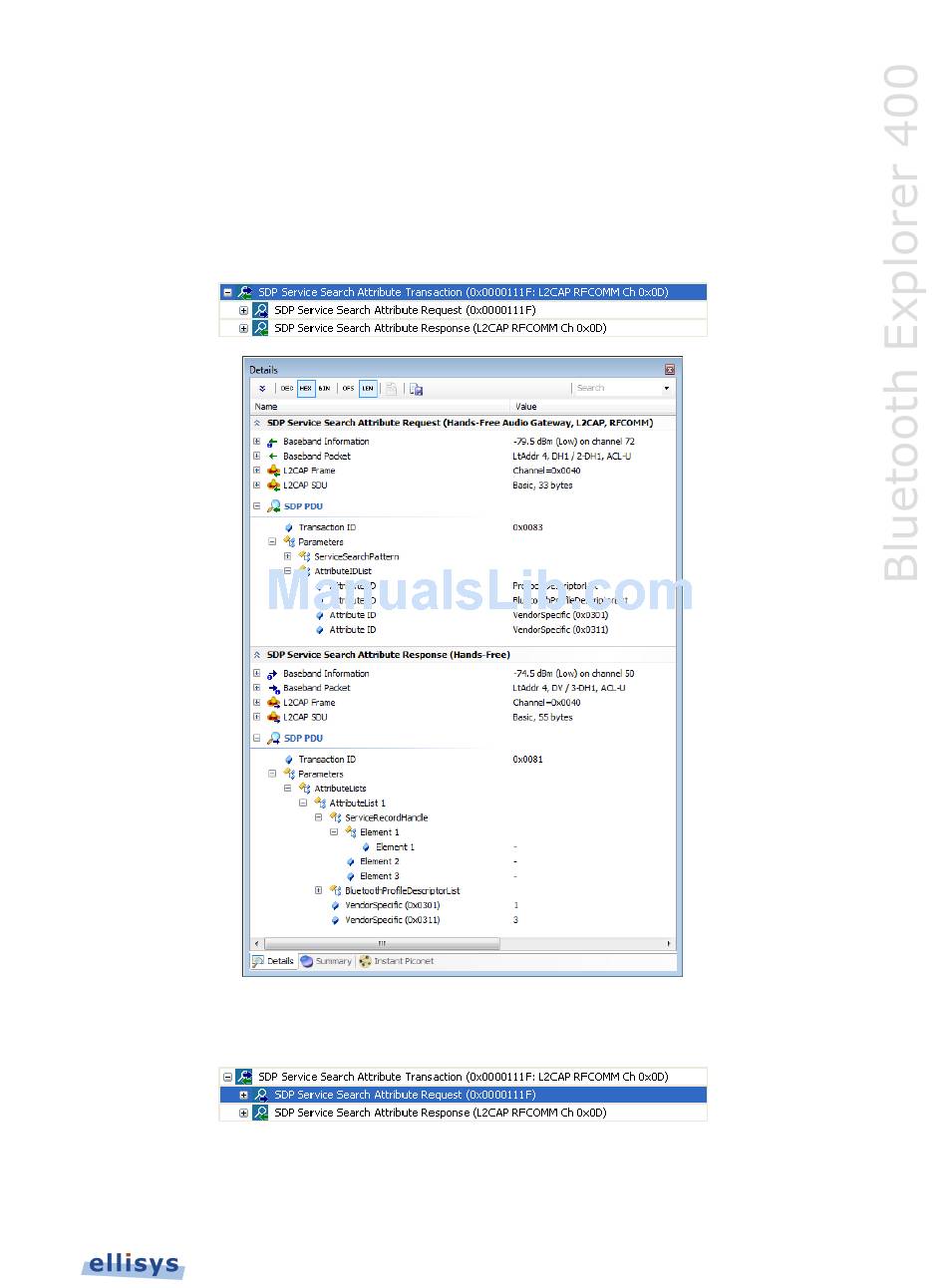

etc.). For example, when selecting the SDP Service Search Attribute Transaction (below),
the Details pane will show information on both the underlying request and response.
When selecting just the SDP Service Search Attribute Request, only this request (and
underlying protocols, profiles, and packets) will be provided in the Details pane:
Details Pane | 183 of 201
