9.7

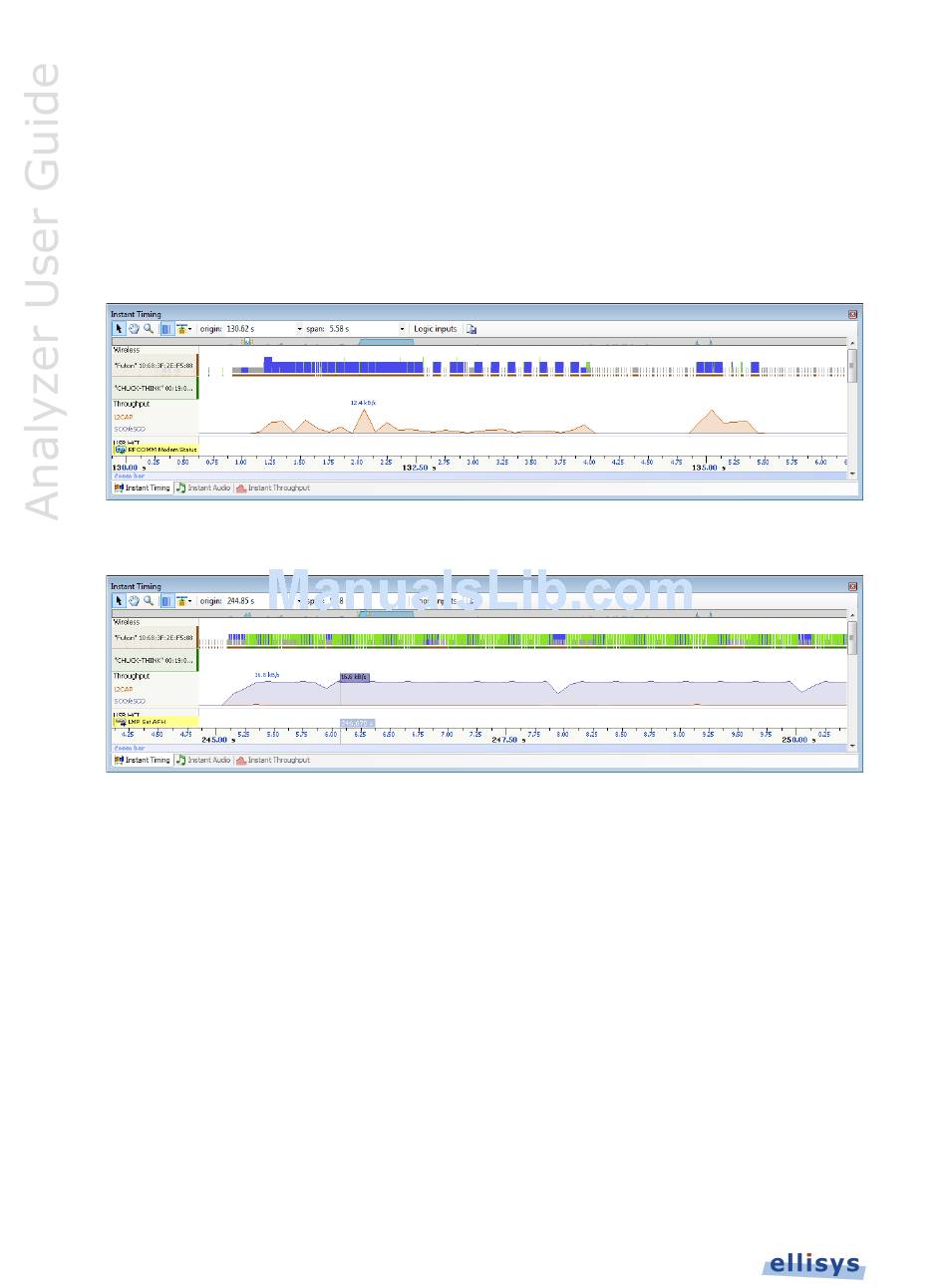

Throughput Graph

The Instant Timing throughput graph provides a characterization of L2CAP and SCO/eSCO data
throughput in synchronization with all other information displayed in the Instant Timing pane.
A mouse fly-over provides a throughput indication. The two throughput indications (L2CAP and
SCO/eSCO) are color-coded and may be superimposed if they occur at the same point in time.
L2CAP and SCO/eSCO throughput are differentiated by color as shown below.
9.8

Using Markers

Markers may be added at any location within the Instant Timing pane. Markers can be edited to
add textual content and can be color-coded. For information on adding markers to an
Overview, see Section 7.6, Using Markers.
To add a marker in the Instant Timing pane:
1. Right-click on a location or event in the Instant Timing pane.
2. Select Add New Marker Here.
3. A marker is placed at the selected event/location.
122 of 201 | Instant Timing Pane
L2CAP Throughput
SCO/eSCO Throughput
