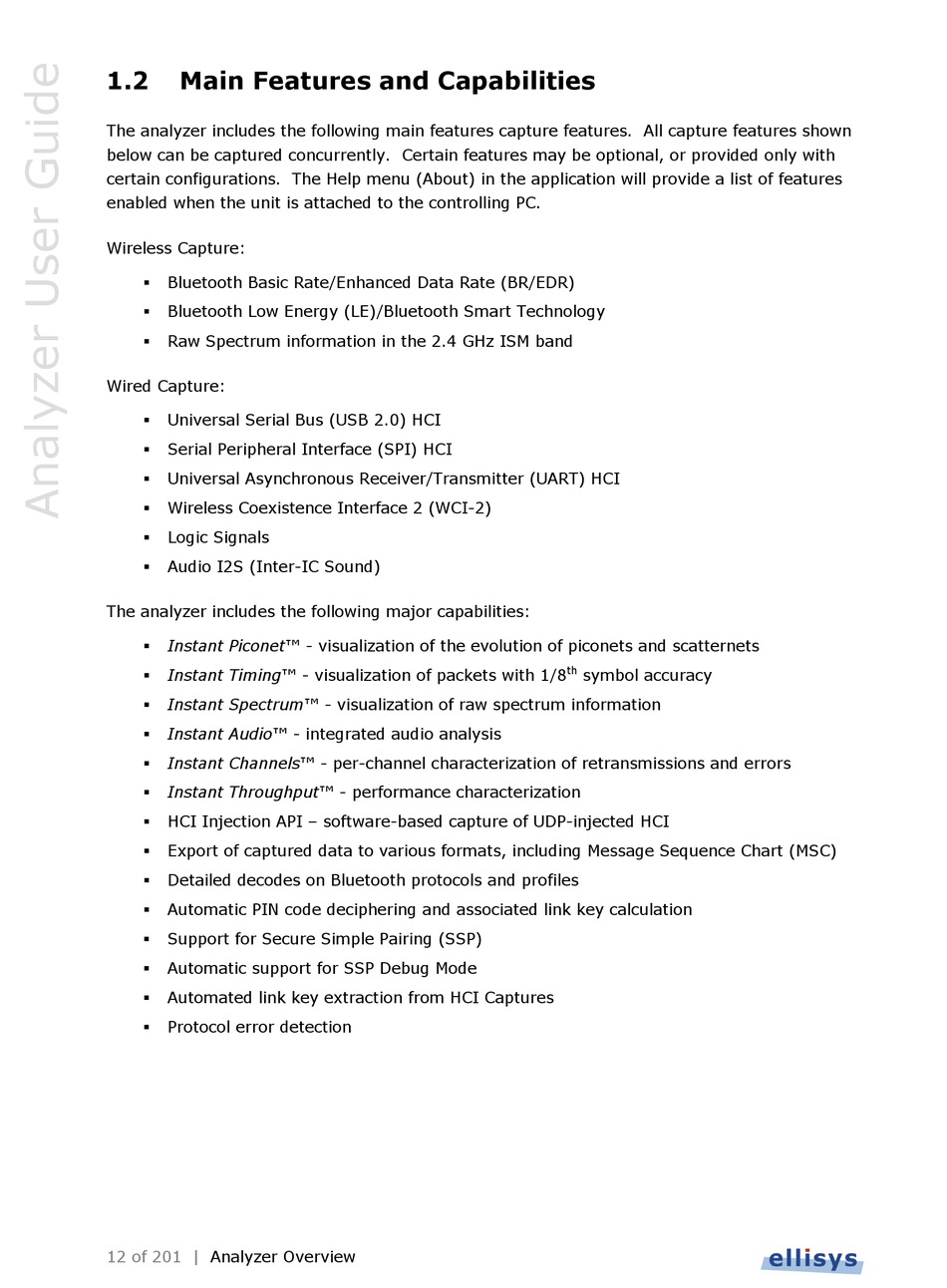

1.2

Main Features and Capabilities

The analyzer includes the following main features capture features. All capture features shown
below can be captured concurrently. Certain features may be optional, or provided only with
certain configurations. The Help menu (About) in the application will provide a list of features
enabled when the unit is attached to the controlling PC.
Wireless Capture:
Bluetooth Basic Rate/Enhanced Data Rate (BR/EDR)

Bluetooth Low Energy (LE)/Bluetooth Smart Technology

Raw Spectrum information in the 2.4 GHz ISM band

Wired Capture:
Universal Serial Bus (USB 2.0) HCI

Serial Peripheral Interface (SPI) HCI

Universal Asynchronous Receiver/Transmitter (UART) HCI

Wireless Coexistence Interface 2 (WCI-2)

Logic Signals

Audio I2S (Inter-IC Sound)

The analyzer includes the following major capabilities:
Instant Piconet™ - visualization of the evolution of piconets and scatternets

Instant Timing™ - visualization of packets with 1/8

Instant Spectrum™ - visualization of raw spectrum information

Instant Audio™ - integrated audio analysis

Instant Channels™ - per-channel characterization of retransmissions and errors

Instant Throughput™ - performance characterization

HCI Injection API – software-based capture of UDP-injected HCI

Export of captured data to various formats, including Message Sequence Chart (MSC)

Detailed decodes on Bluetooth protocols and profiles

Automatic PIN code deciphering and associated link key calculation

Support for Secure Simple Pairing (SSP)

Automatic support for SSP Debug Mode

Automated link key extraction from HCI Captures

Protocol error detection

12 of 201 | Analyzer Overview
th
symbol accuracy
