Overview are based on the particular item selected on the Protocol bar.

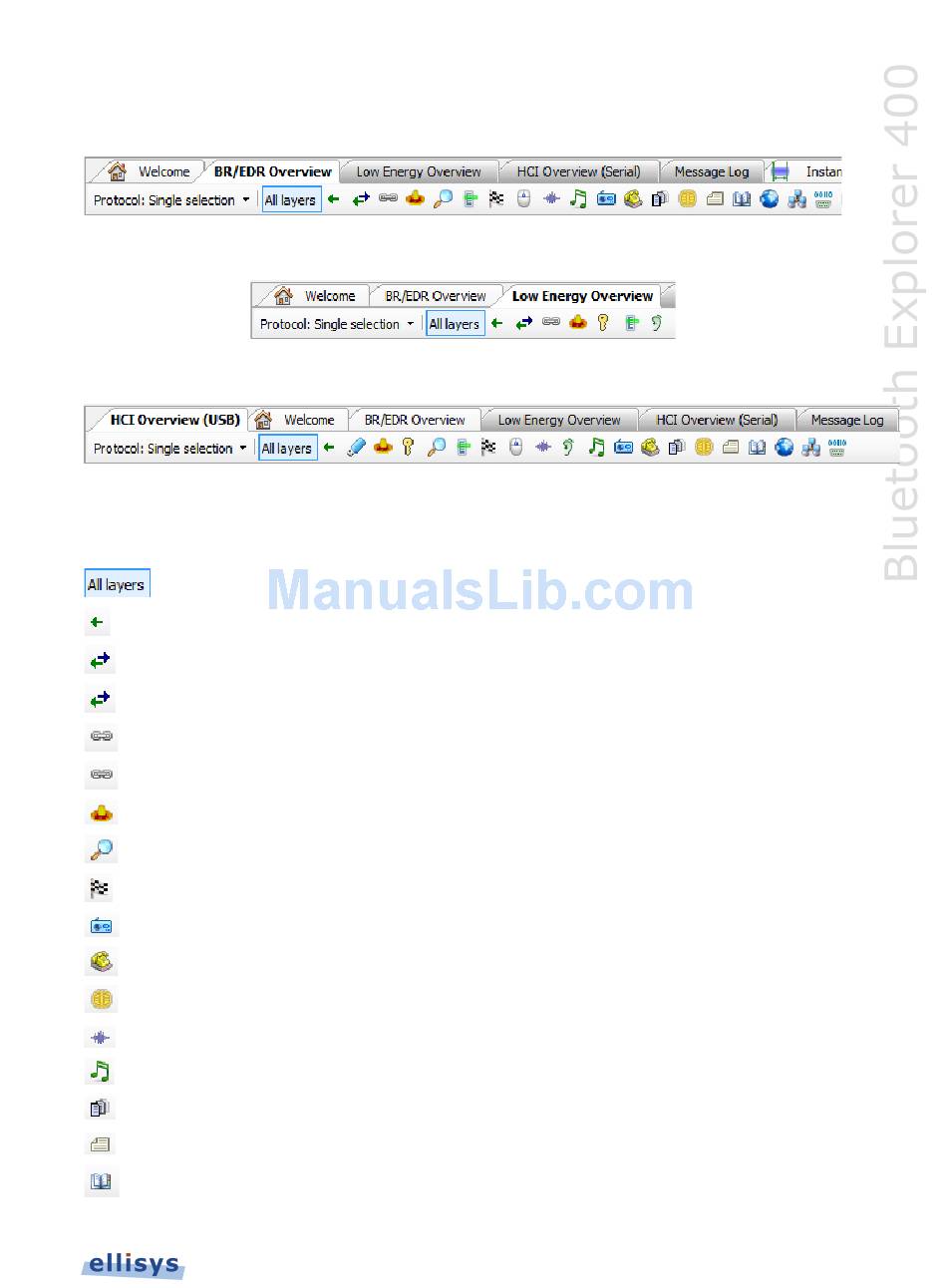

The protocol/profile filters available for the BR/EDR Overview are shown below:
The protocol/profile filters available for the Low Energy Overview are shown below:
The protocol/profile filters available for the HCI Serial and HCI USB Overviews are shown below:
The table below describes the various filter icons and their functions:
Icon Function
Shows all protocols and profiles
Shows packets-only view
Show/Hide Baseband
Show/Hide Link Layer
Show/Hide LMP
Show/Hide LLCP
Show/Hide L2CAP
Show/Hide SDP
Show/Hide A2MP
Show/Hide RFCOMM
Show/Hide AT
Show/Hide SAP
Show/Hide SCO/eSCO
Show/Hide AVDTP/AVCTP
Show/Hide OBEX
Show/Hide MAP
Show/Hide PBAP
Overview Protocol: Selection
BR/EDR LE HCI Single
BR/EDR LE HCI Single
BR/EDR Single, Custom
LE Single, Custom
BR/EDR Single, Multiple, Custom
LE Single, Multiple, Custom
BR/EDR LE HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
BR/EDR HCI Single, Multiple, Custom
Display Filters | 99 of 201
