Packet Fly-Over and Identifiers

The Instant Timing pane provides various automated indications to the user, including detailed
packet information, timing information, and identifiers that are used to indicate packet
selections in the Instant Timing pane (selected packet and mouse position) and the Overview.
To enable automated packet flyover information:
1. Position the mouse over the desired packet slot.
2. The packet slot is highlighted in gray, then blue when selected (if not selected in the
Overview already, in which case it will be already highlighted in yellow).

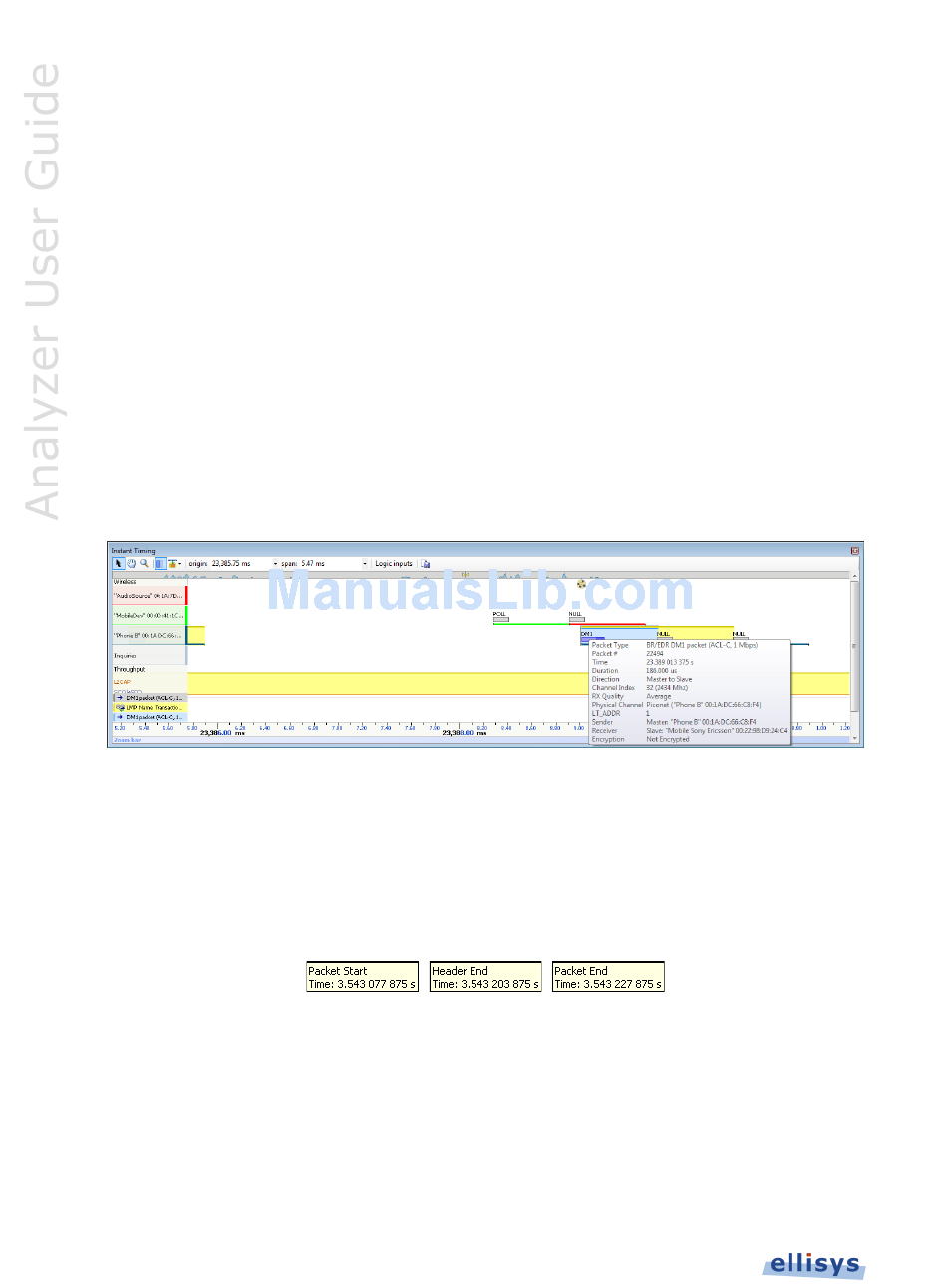

A detailed flyover appears:
To view packet start, header end, or packet end times:
1. Place the mouse pointer directly on packet.
2. Slide the mouse pointer left and right slightly:
Depending on horizontal positioning of the mouse pointer, Packet Start, Header End, or Packet
End time will appear:
