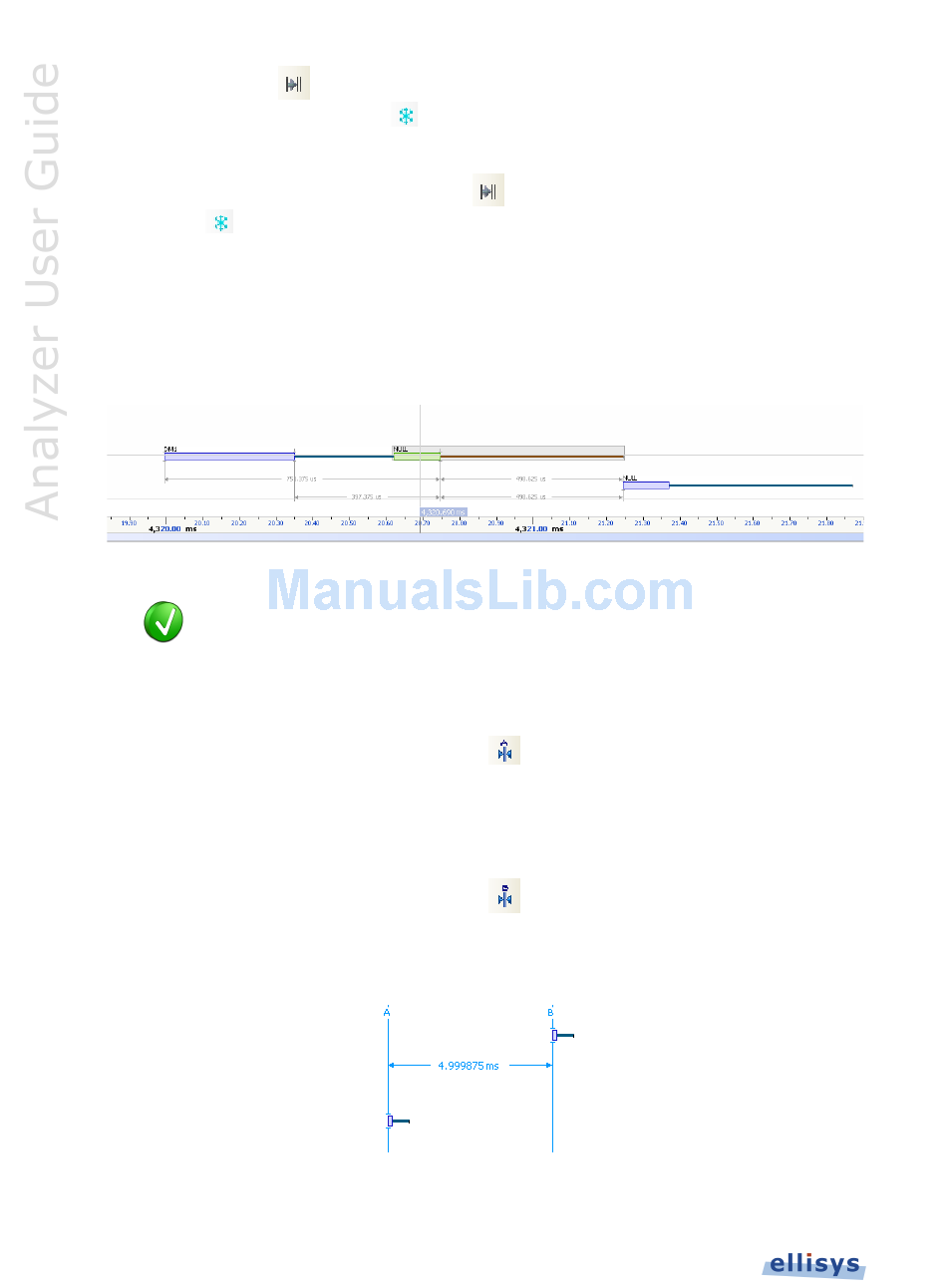

Ellisys Bluetooth Explorer 400 User Manual page 140

2. Select Duplicate
as the original, or select Freeze
another cursor set as desired.
A new set of cursors appears (with Duplicate
With Freeze selected, the original cursor set is grayed out and new cursors can be installed
as described above.
To enable automated timing indicators:
1. To enable the automated timing measurement, place the mouse over any packet.
2. The time from one packet to the next and from the previous packet is indicated in grey text.
To make time measurements using the A-B cursors:
The A-B cursors are especially useful when the two events being measured are
far apart, such that one cursor can be set, then the user can scroll as needed
to the other event to set the second cursor.
1. Select the first desired location in the Instant Spectrum view.
2. Right click and select Place cursor A here.
The A cursor is placed at the location selected.
3. Select the second desired location in the Instant Spectrum view.
4. Right click and select Place cursor B here.
The B cursor is placed at the location selected, and timing information is provided, including
number of slots:
140 of 201 | Instant Spectrum View
to make available another set of cursors with the exact time spread
to fix the current cursor and enable placement of
selected) and can be placed as desired.
