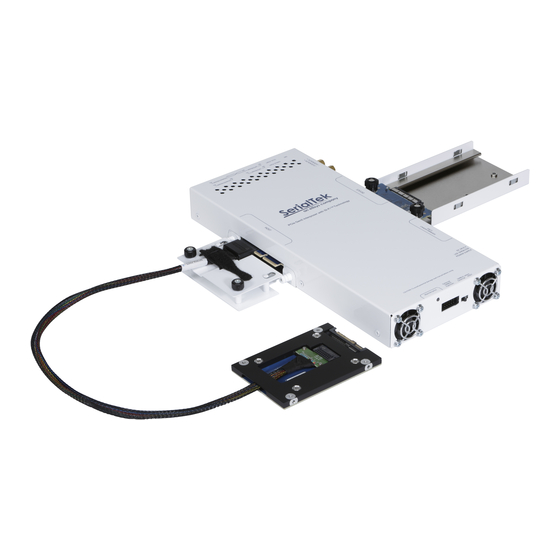

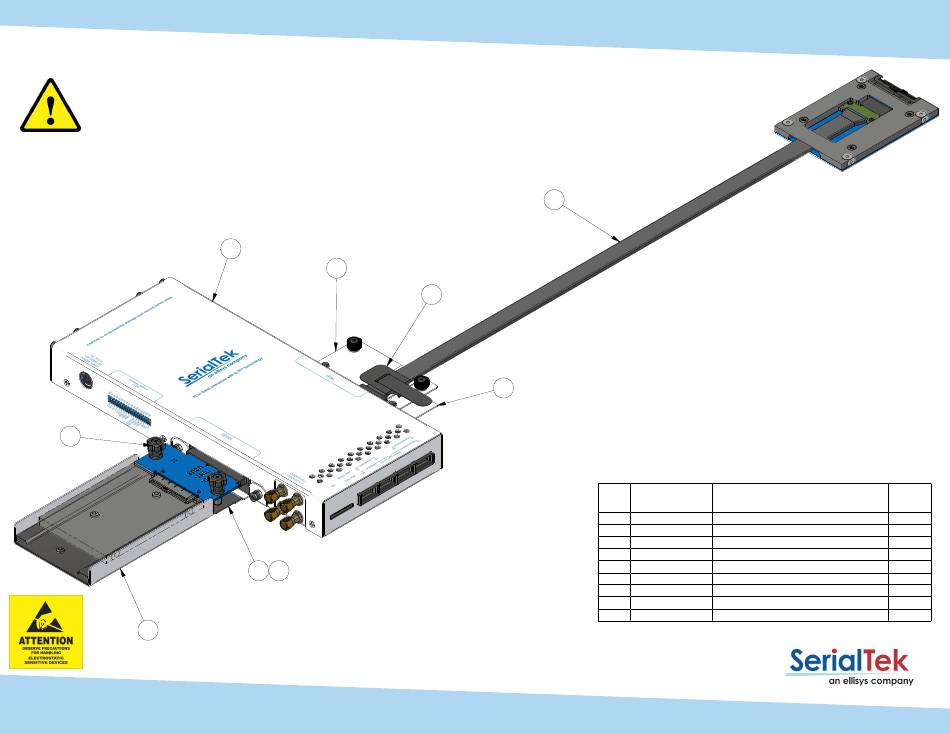

Gen5 POD U.2/U.3 Edition Assembly Reference
CAUTION :
Failure to do the following may DAMAGE the interposer and VOID the warranty.
•
Secure adapters as shown in this guide
•
Do NOT change adapters while powered
•
Do NOT hot plug
•
Turn on interposer power BEFORE host power
5
2
0004675 - R1
Page 1 of 6
1
7
4
3
8
9
6
Item Part Number
Part Description
1
4631
POD Main Unit
2
4687
EDSFF Device Adaptor Base Tray
3
4465
U.2/U.3 Adaptor Base Assembly
4
3736
M3x4mm Black Flat Head Screw
5
4688/4689
U.2/U.3 Device PCBA
6
4679
Host/Device Cable Adaptor Tray
HCBL-EDSFF Support Tray
7
3972
8
4690/4691
U.2/U.3 HSA
9
4061
Hook & Loop Cable Tie
Qty
1
1
1
3
1
1
1
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ellisys SerialTek Gen5 POD U.2
Summary of Contents for Ellisys SerialTek Gen5 POD U.2
- Page 1 Gen5 POD U.2/U.3 Edition Assembly Reference CAUTION : Failure to do the following may DAMAGE the interposer and VOID the warranty. • Secure adapters as shown in this guide • Do NOT change adapters while powered • Do NOT hot plug •...
- Page 2 Gen5 POD U.2/U.3 Edition Assembly Reference Slide the EDSFF Device Adaptor Base Tray into the slot on the DEVICE side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the EDSFF Device Adaptor Base Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 3 Gen5 POD U.2/U.3 Edition Assembly Reference Fix the U.2/U.3 Adaptor Base Assembly to the EDSFF Device Adaptor Base Tray using three M3 x 4mm Flat Head screws POD Main Unit U.2/U.3 Adaptor Base Assembly EDSFF Device Adaptor Base Tray M3x4mm Flat Head Screw 0004675 - R1 Page 3 of 6...
- Page 4 Gen5 POD U.2/U.3 Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the U.2/U.3 Device PCBA into the connector on the DEVICE side of the POD Unit and secure in position on the U.2/U.3 Adaptor Base Assembly with M3 Captive Screws.
- Page 5 Gen5 POD U.2/U.3 Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the HOST side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 6 Gen5 POD U.2/U.3 Edition Assembly Reference M3 Spring Loaded Screw Raise the Caps of the M3 Spring Loaded Screws and secure the HCBL-EDSFF Support Tray in position on the Host/Device Cable HCBL-EDSFF Support Tray Adaptor Tray with the M3 Spring Loaded Screws POD Main Unit Device/Host Cable Adaptor Tray Hook &...
