The table below explains the settings available under the Advanced tab:
Advanced Tab
SuperSpeed Parameters
Link Rate
Disable Spread Spectrum
Clocking Tolerance
Disable Scrambler
Disable Terminations
Detection
Keep Skip Ordered Sets
Override Default Front-End
Settings

10.2 Selecting an Analyzer

It is possible that multiple units will be attached to a single PC hosting the Analyzer desired for recording.
To select an Analyzer:
1. Select Record | Select an Analyzer from the menu.
Or
Select the drop-down arrow located on the Record

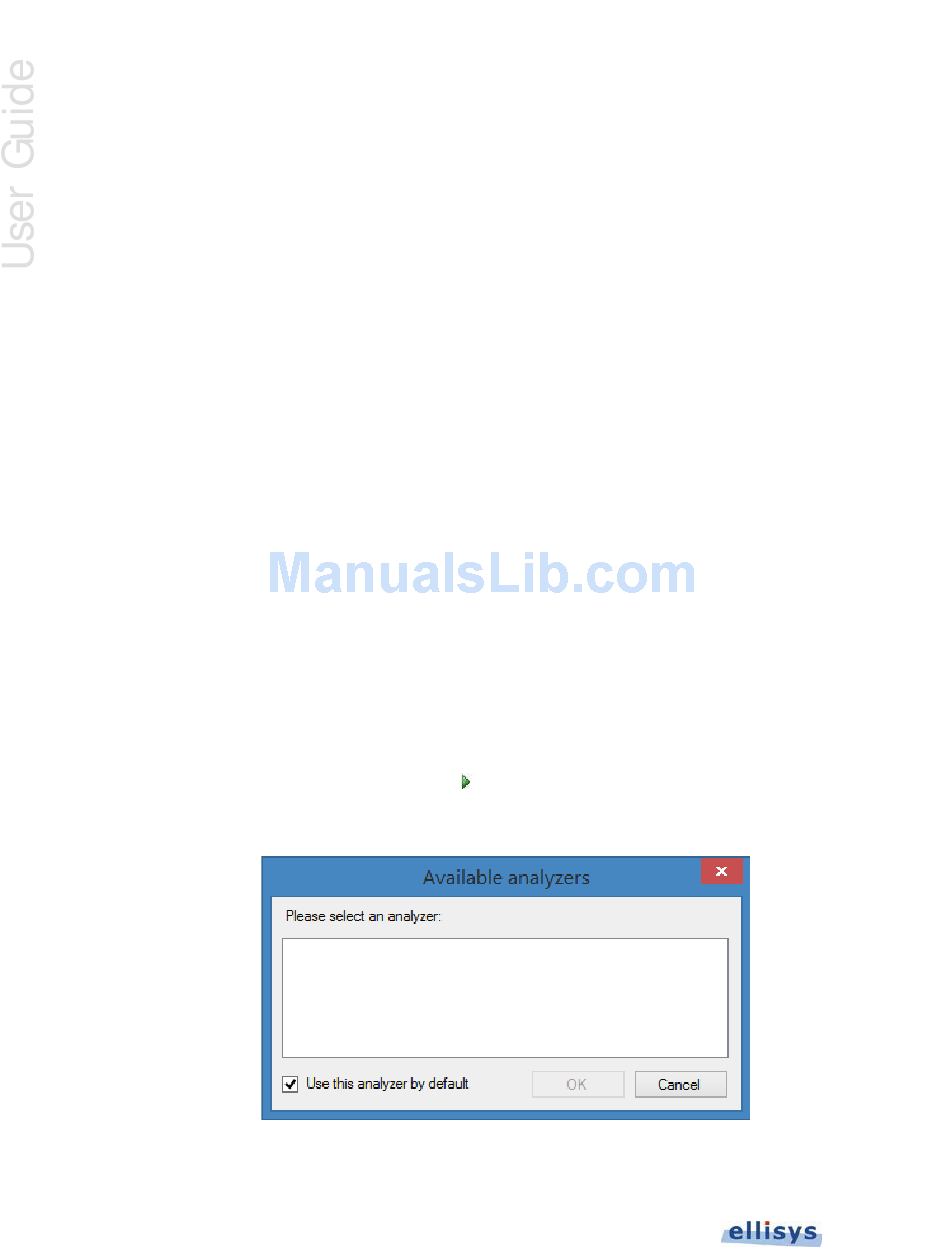

Available Analyzers
The dialog appears:
2. Select the desired Analyzer.
90 of 157 | Managing Analyzer Recordings
Specifies the link operating speed. Defaults to auto-detect nominal.
User may also specify a division by two.
When checked, configures the Analyzer to record traffic that utilizes
spread spectrum clocking.
When checked, traffic captured by the Analyzer is not descrambled.
When checked, the receive lines on the Analyzer's upstream and
downstream ports will always present receiver terminations to the
attached device's transmit lines.
presents receiver terminations only when both upstream and
downstream devices are attached to the Analyzer's front panel.
When checked, the Skip ordered sets are kept. Please be aware that
this option will generate a huge quantity of items.
button located on the toolbar.
When unchecked, the Analyzer
