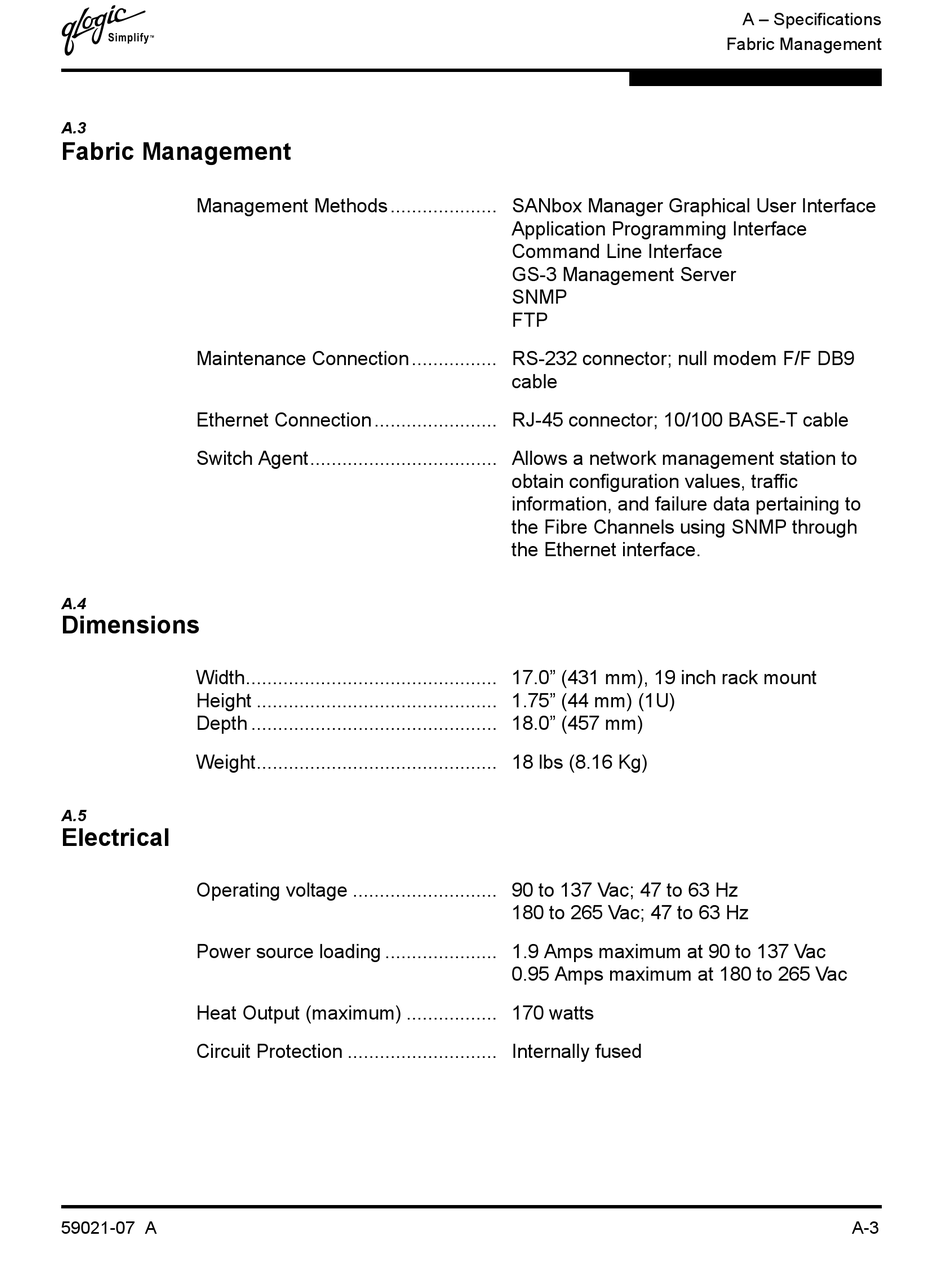

Fabric Management; Dimensions; Electrical; A.3 Fabric Management - Qlogic SANbox2-16 Installation Manual

D
A.3

Fabric Management

Management Methods .................... SANbox Manager Graphical User Interface
Maintenance Connection ................ RS-232 connector; null modem F/F DB9
Ethernet Connection ....................... RJ-45 connector; 10/100 BASE-T cable
Switch Agent................................... Allows a network management station to
A.4

Dimensions

Width...............................................
Height .............................................
Depth ..............................................
Weight............................................. 18 lbs (8.16 Kg)
A.5

Electrical

Operating voltage ........................... 90 to 137 Vac; 47 to 63 Hz
Power source loading ..................... 1.9 Amps maximum at 90 to 137 Vac
Heat Output (maximum) ................. 170 watts
Circuit Protection ............................ Internally fused
59021-07 A
Application Programming Interface
Command Line Interface
GS-3 Management Server
SNMP
FTP
cable
obtain configuration values, traffic
information, and failure data pertaining to
the Fibre Channels using SNMP through
the Ethernet interface.
17.0" (431 mm), 19 inch rack mount
1.75" (44 mm) (1U)
18.0" (457 mm)
180 to 265 Vac; 47 to 63 Hz
0.95 Amps maximum at 180 to 265 Vac
A – Specifications
Fabric Management
A-3
