B – Command Line Interface
Set Setup Command

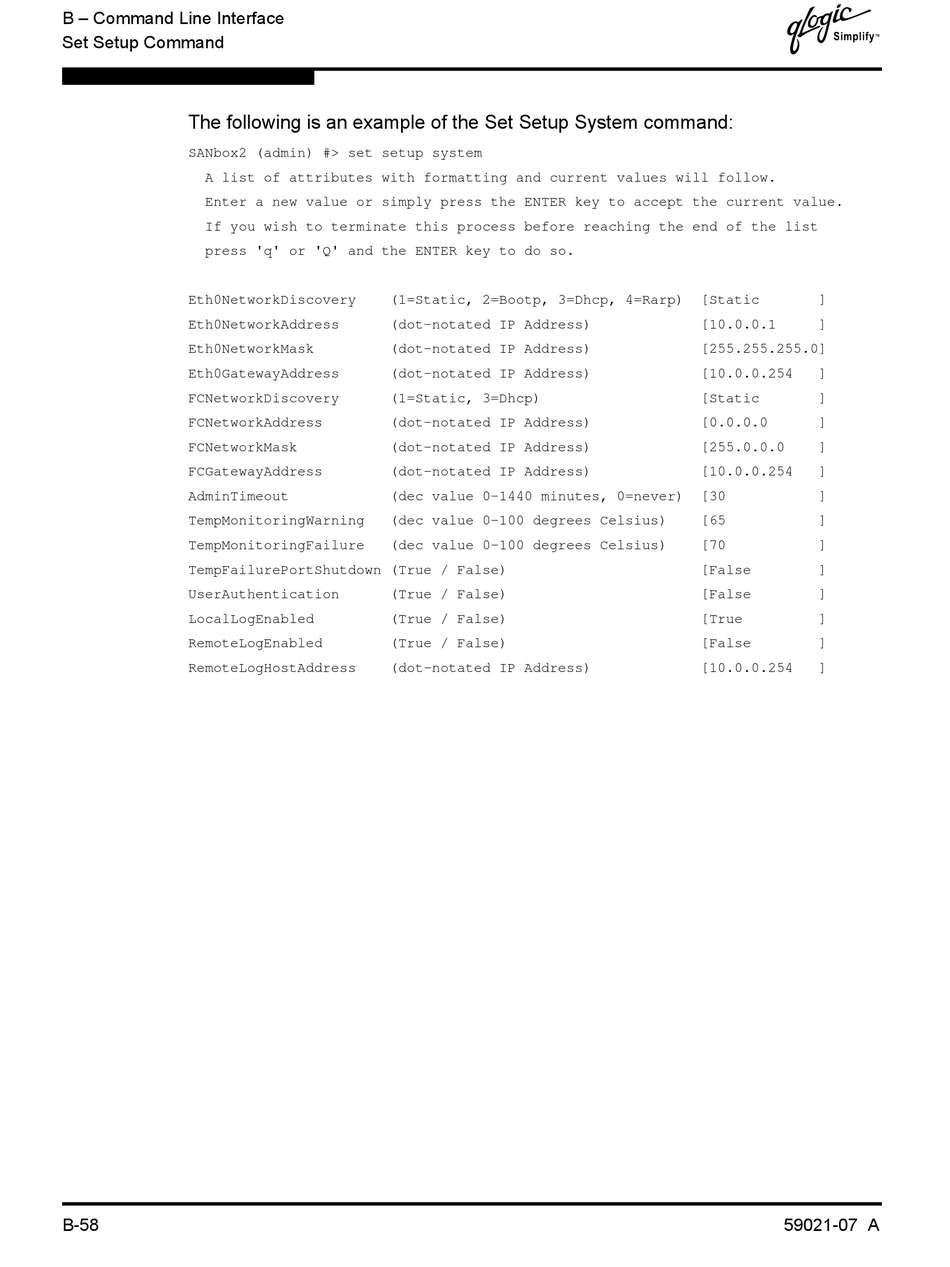

The following is an example of the Set Setup System command:
SANbox2 (admin) #> set setup system
A list of attributes with formatting and current values will follow.
Enter a new value or simply press the ENTER key to accept the current value.
If you wish to terminate this process before reaching the end of the list
press 'q' or 'Q' and the ENTER key to do so.
Eth0NetworkDiscovery
Eth0NetworkAddress
Eth0NetworkMask
Eth0GatewayAddress
FCNetworkDiscovery
FCNetworkAddress
FCNetworkMask
FCGatewayAddress
AdminTimeout
TempMonitoringWarning
TempMonitoringFailure
TempFailurePortShutdown (True / False)
UserAuthentication
LocalLogEnabled
RemoteLogEnabled
RemoteLogHostAddress
B-58
(1=Static, 2=Bootp, 3=Dhcp, 4=Rarp)
(dot-notated IP Address)
(dot-notated IP Address)
(dot-notated IP Address)
(1=Static, 3=Dhcp)
(dot-notated IP Address)
(dot-notated IP Address)
(dot-notated IP Address)
(dec value 0-1440 minutes, 0=never)
(dec value 0-100 degrees Celsius)
(dec value 0-100 degrees Celsius)
(True / False)
(True / False)
(True / False)
(dot-notated IP Address)
D
[Static ]
[10.0.0.1 ]
[255.255.255.0]
[10.0.0.254 ]
[Static ]
[0.0.0.0 ]
[255.0.0.0 ]
[10.0.0.254 ]
[30 ]
[65 ]
[70 ]
[False ]
[False ]
[True ]
[False ]
[10.0.0.254 ]
