2 – General Description

Fans

2.7

Fans

The switch is equipped with two fans as shown in
fail, the other fan is capable of providing the necessary cooling until the failed fan
can be replaced. The fans are hot swappable and interchangeable. Air flow can
be front-to-back or back-to-front depending on the switch model. Refer to
on page 6-4
direction.
2.8

Switch Management

SANbox Manager is a workstation-based Java® application that provides a
graphical user interface for fabric management. This application runs on a
Windows®, Solaris™, or Linux® workstation. The management workstation
connects to the fabric directly through one switch's Ethernet port and provides
in-band management for all other switches in the fabric. Refer to the
SANbox2-8c/16 Switch Management User's Guide for information about the
SANbox Manager application and its use.
In addition to SANbox Manager, the switch supports the following management
tools:
Command Line Interface (CLI)
File Transfer Protocol (FTP)
Simple Network Management Protocol (SNMP)
The command line interface provides monitoring and configuration functions by
which the administrator can manage the fabric and its switches. The CLI is
available over an Ethernet connection or a serial connection. Refer to
Appendix B Command Line Interface
2-10
for information about removing fans, replacing the fans, and air flow
Fans

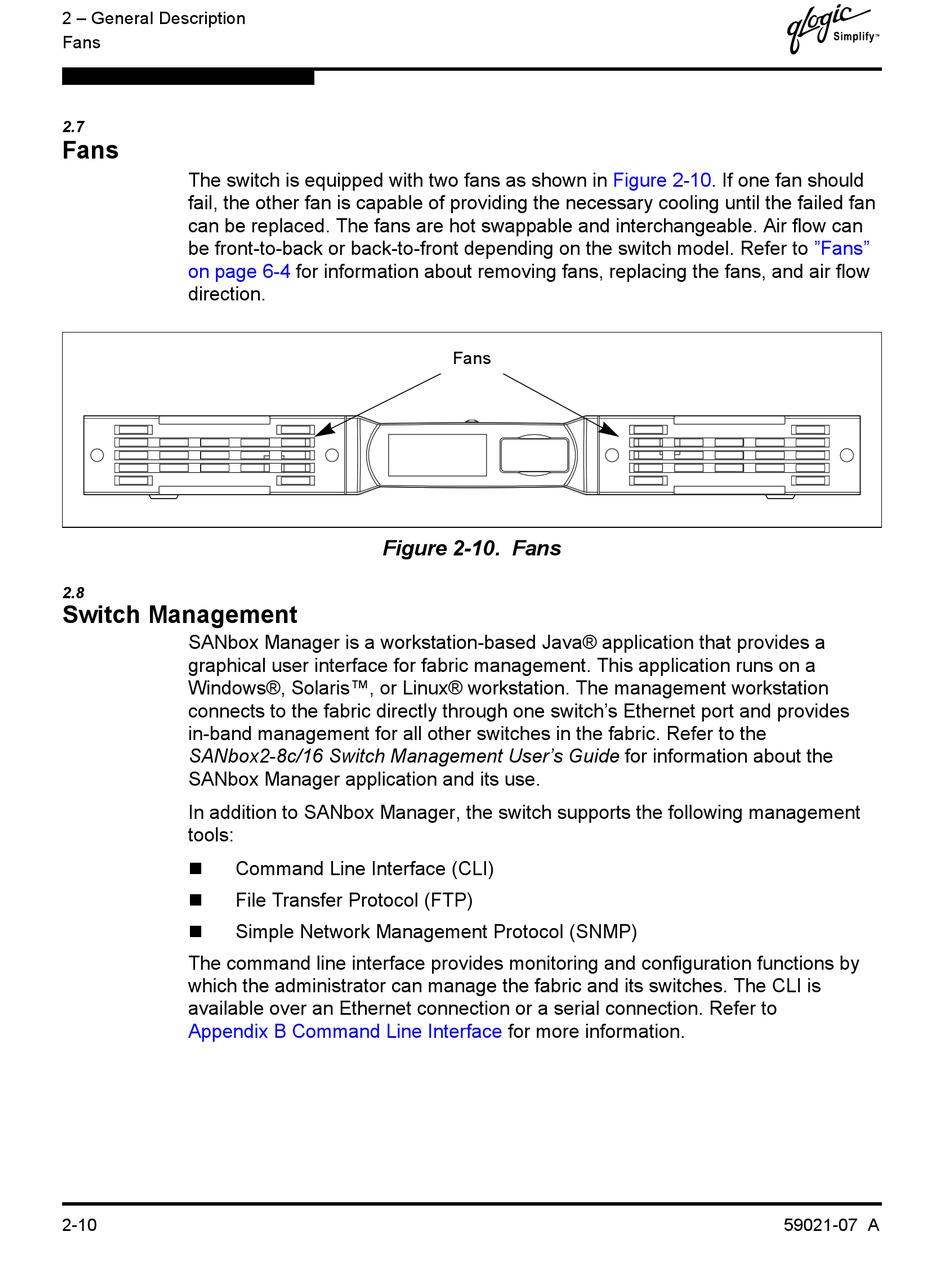

Figure 2-10. Fans
Figure 2-10. If one fan should
for more information.
D
"Fans"
