A – Specifications

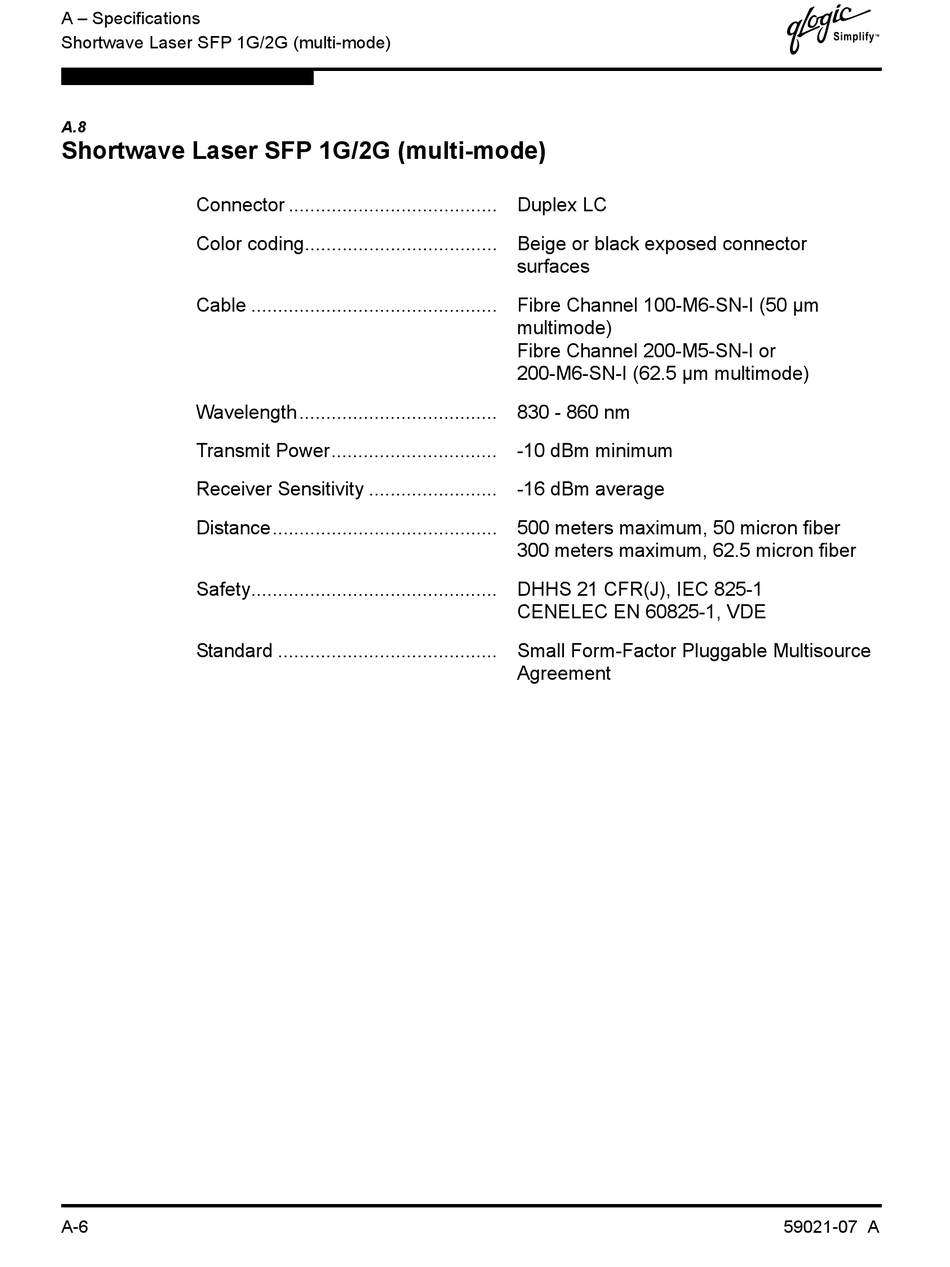

Shortwave Laser SFP 1G/2G (multi-mode)

A.8
Shortwave Laser SFP 1G/2G (multi-mode)
Connector ....................................... Duplex LC
Color coding.................................... Beige or black exposed connector
Cable .............................................. Fibre Channel 100-M6-SN-I (50 µm
Wavelength..................................... 830 - 860 nm
Transmit Power............................... -10 dBm minimum
Receiver Sensitivity ........................ -16 dBm average
Distance.......................................... 500 meters maximum, 50 micron fiber
Safety.............................................. DHHS 21 CFR(J), IEC 825-1
Standard ......................................... Small Form-Factor Pluggable Multisource
A-6
surfaces
multimode)
Fibre Channel 200-M5-SN-I or
200-M6-SN-I (62.5 µm multimode)
300 meters maximum, 62.5 micron fiber
CENELEC EN 60825-1, VDE
Agreement
D
59021-07 A
