Valcom V-D11025B Installation Manual page 9

Wall Mount Installation

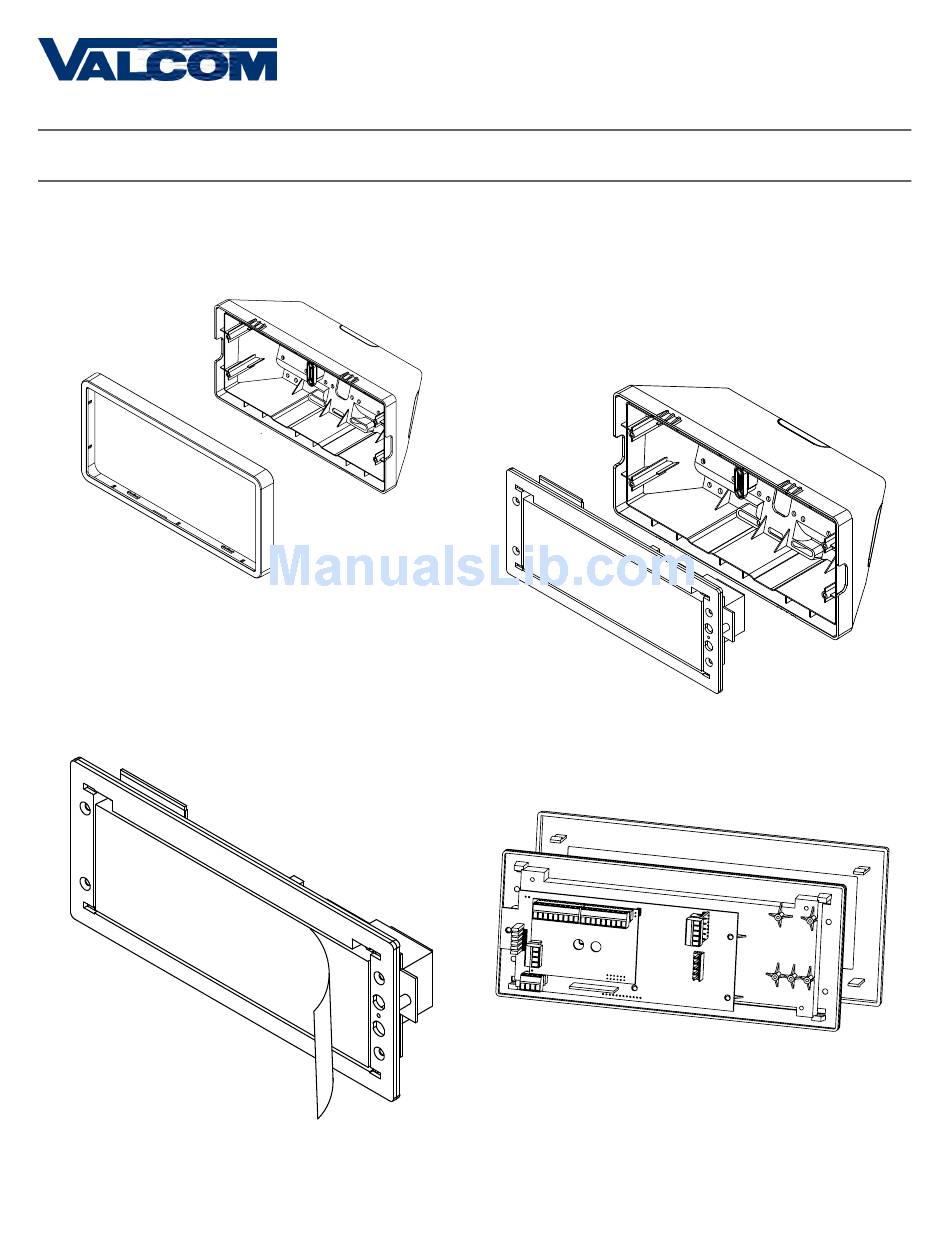

9) Detach the frame from the front of the clock
housing by pulling the bottom and top edges away
from the housing.
11
11) Remove the plastic cover from the display board.
9
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
10
10) Use the 6-19x1/2 screws to attach the display
board to the housing.
NOTE: For 2.5" Digit clocks, the holes for the
screws will be on the left and right inner surfaces of
the housing. For 4.0" Digit Clocks, the holes will be
on the top and bottom surfaces.
12
12) Place the filter over the display board. You
should hear a snapping noise as the latches drop
into place.
P. 540-563-2000
F. 540-362-9800
www.valcom.com
9
