Valcom V-D11025B Installation Manual page 8

Wall Mount Installation

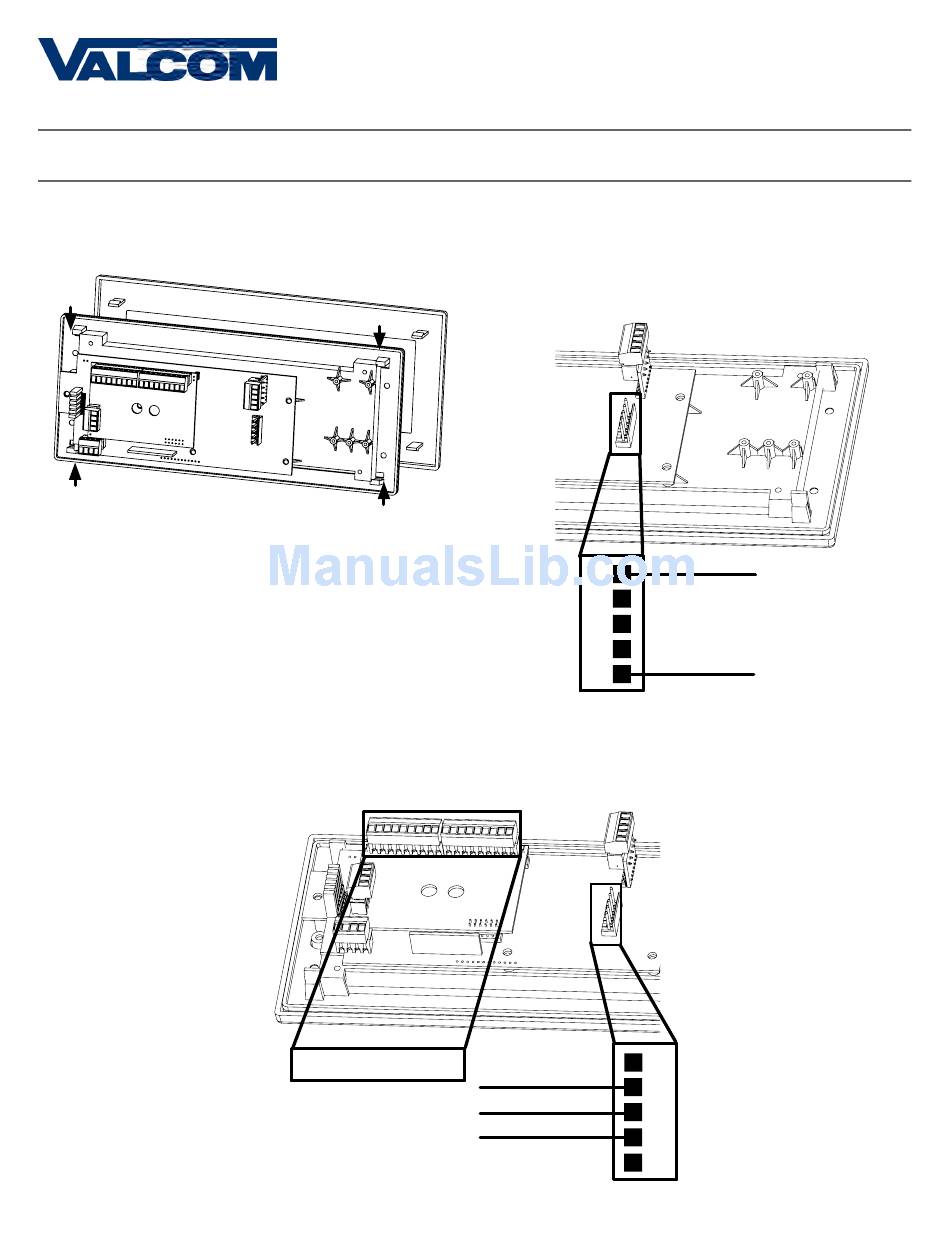

7) Detach the filter from the clock display board by
pressing inward on the red tabs.
8B
8B) If you are installing a digital clock that uses sync-wire correction, attach the wires to the appropriate
sync-wire ports. Refer to the section, "Inputs - Clock Side - Sync Wire" for instructions regarding each
system.
7 8A
Sync-Wire Ports
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
8A) If you are installing a digital clock that uses a
2-wire digital sync system, attach the wires to the
port as shown below.
24VDC (Orange)
1
2
3
4
24VDC (Yellow)
5
1
110VAC (Black)
2
Ground (Green)
3
110VAC (White)
4
5
