Valcom V-D11025B Installation Manual page 17

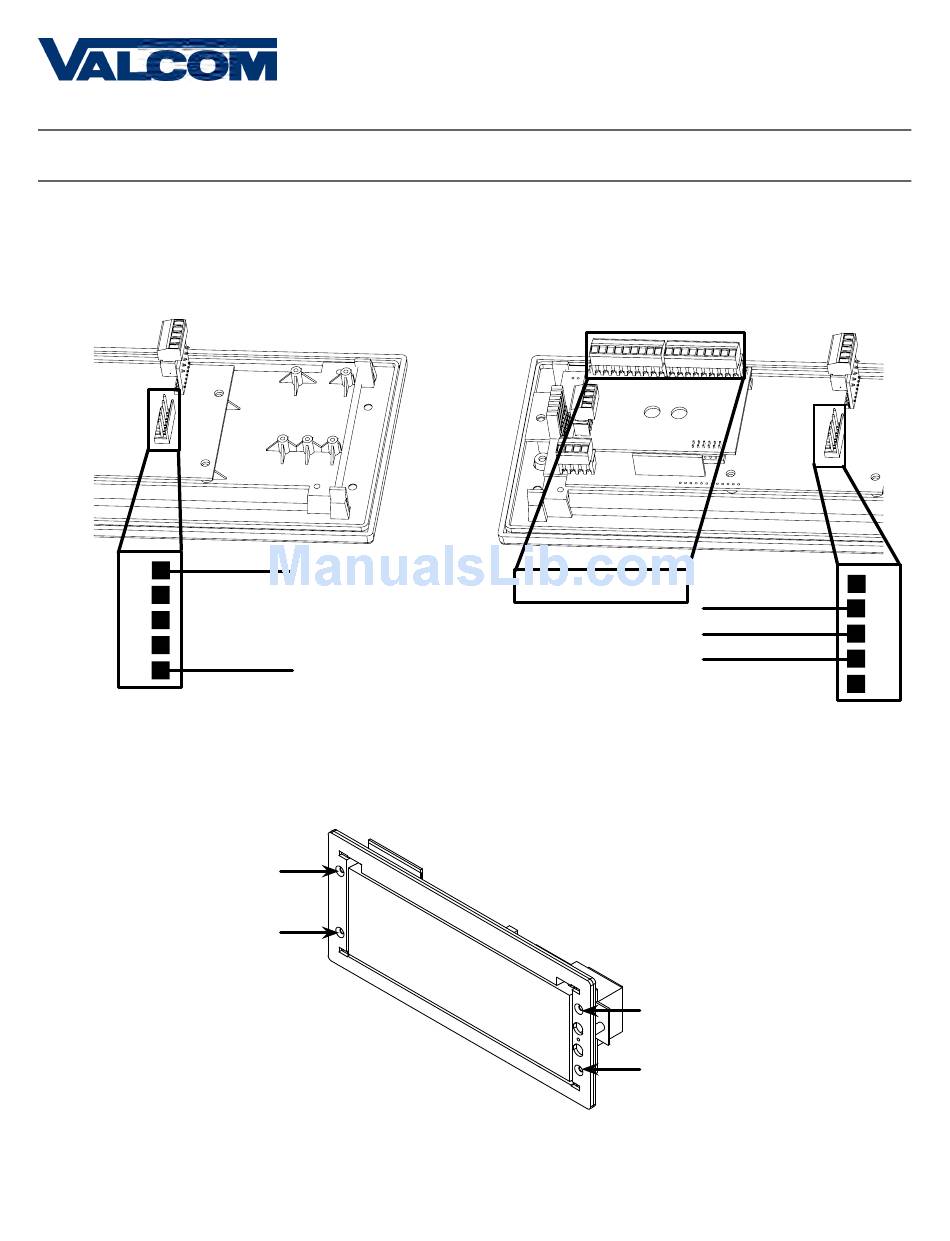

Flag Mount Installation
15A 15B
15A) If you are installing a digital clock that uses a
2-wire digital sync system, attach the wires to the
port as shown below.
24VDC (Orange)
1
2
3
4
16
24VDC (Yellow)
5
16) Use the M3/5-15x12 screws to attach the display board to the housing.
NOTE: For 2.5" Digit clocks, the holes for the screws will be on the left and right inner surfaces of the
housing. For 4.0" Digit Clocks, the holes will be on the top and bottom surfaces.
