Valcom V-D11025B Installation Manual page 16

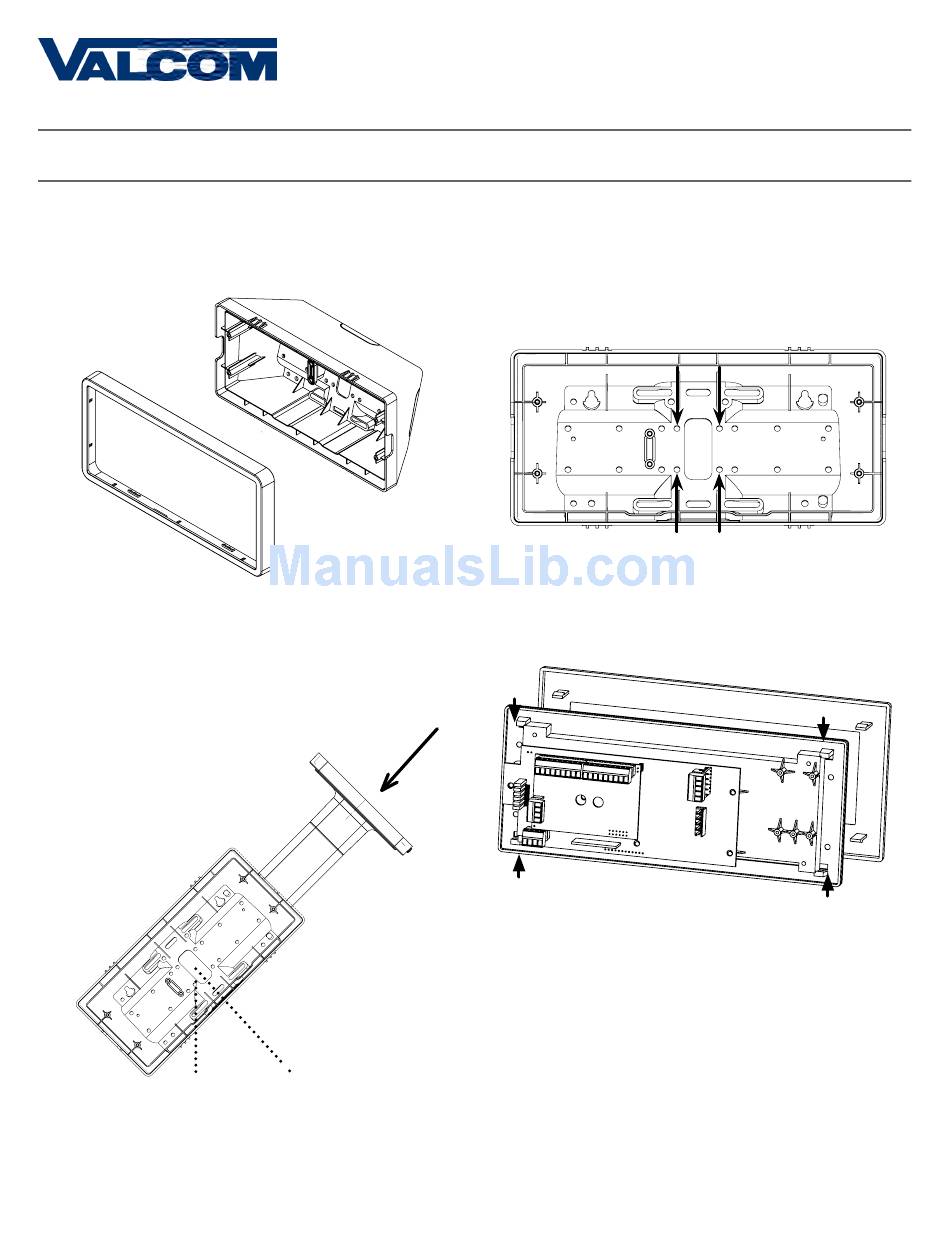

Flag Mount Installation 11 12
11) Detach the frame from the front of the clock
housing by pulling the bottom and top edges away
from the housing.
13
13) Thread at least fifteen inches (38.1cm) of
wiring from the gang box through the bottom of
the pole until each wire exits through the hole in
the adapter.
Wire Clamp Adapter hole
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
12) Insert the four #8-32x7/16 screws through the
internal-tooth washers, then through the adapter,
and finally into the pole. Use a screwdriver to
tighten the screws so that the adapter does
not move.
14
14) Detach the filter from the clock display board by
pressing inward on the red tabs.
