Clock Side - Sync-Wire - Valcom V-D11025B Installation Manual

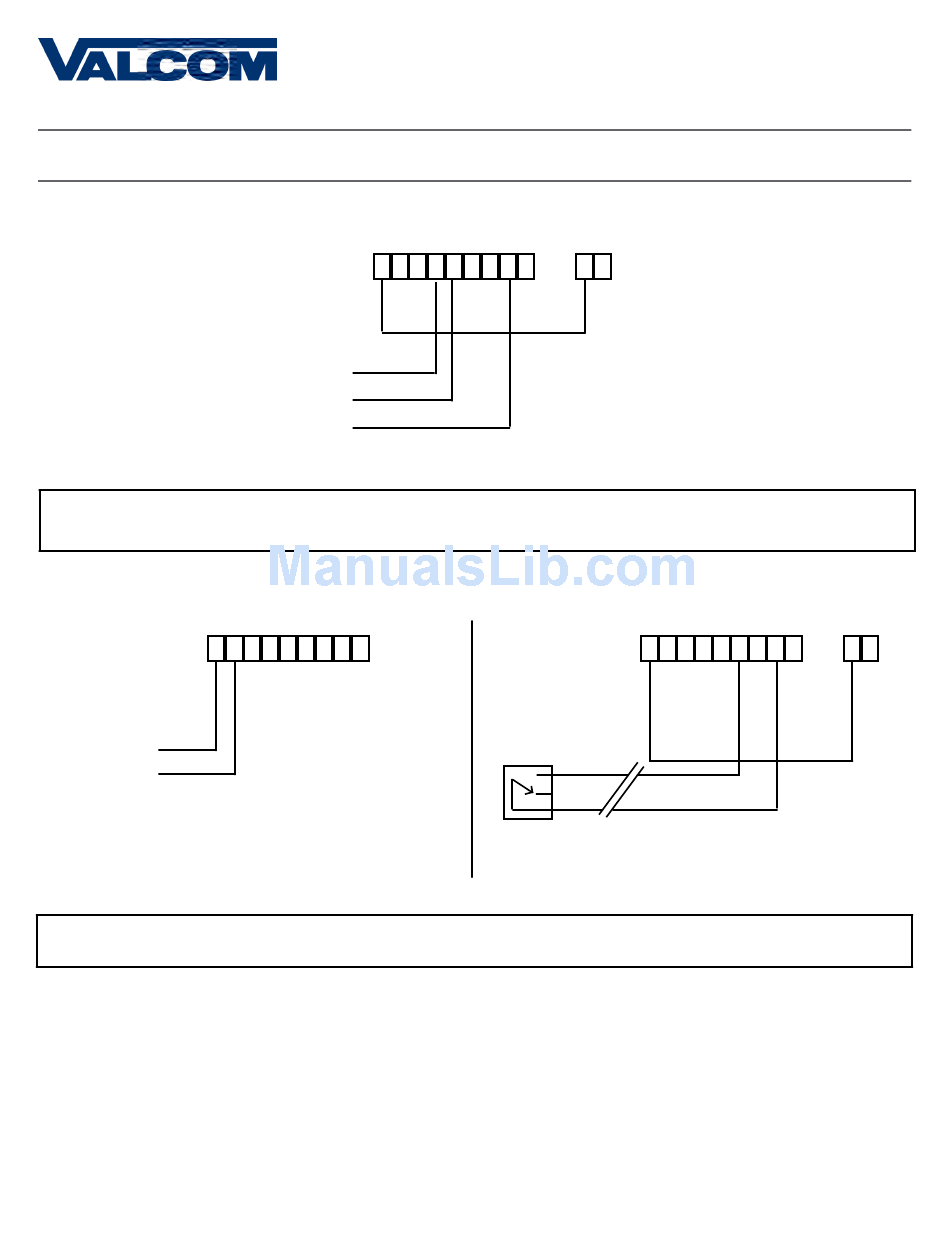

Inputs - Clock-Side - Sync-Wire (V-D110XXB Only)
Dukane
Description:
Dukane - Applying a 4-10 millisecond pulse on the minute line will increment the clock in one minute.
Applying a 12-50 millisecond pulse on the reset line will bring the clock back to 12:00 a.m.
Midnight Reset or Once a Day Pulse
J1-
1 2 3 4 5 6 7
Neutral
Reset
110VAC Interface
Description:
Midnight Reset or Once a Day Pulse - Applying a pulse for more than two (2) seconds will bring the
clock to the correct time.
J1-
1 2 3 4 5 6 7 8 9
Reset
Minute Pulse
Ground
9
8
Relay
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
J2-
1 2
J1-
1 2 3 4 5 6 7 8 9
N.O.
COM
Dry Contact Closure
P. 540-563-2000
F. 540-362-9800
www.valcom.com
J2-
1 2
35
