Inputs - Valcom V-D11025B Installation Manual

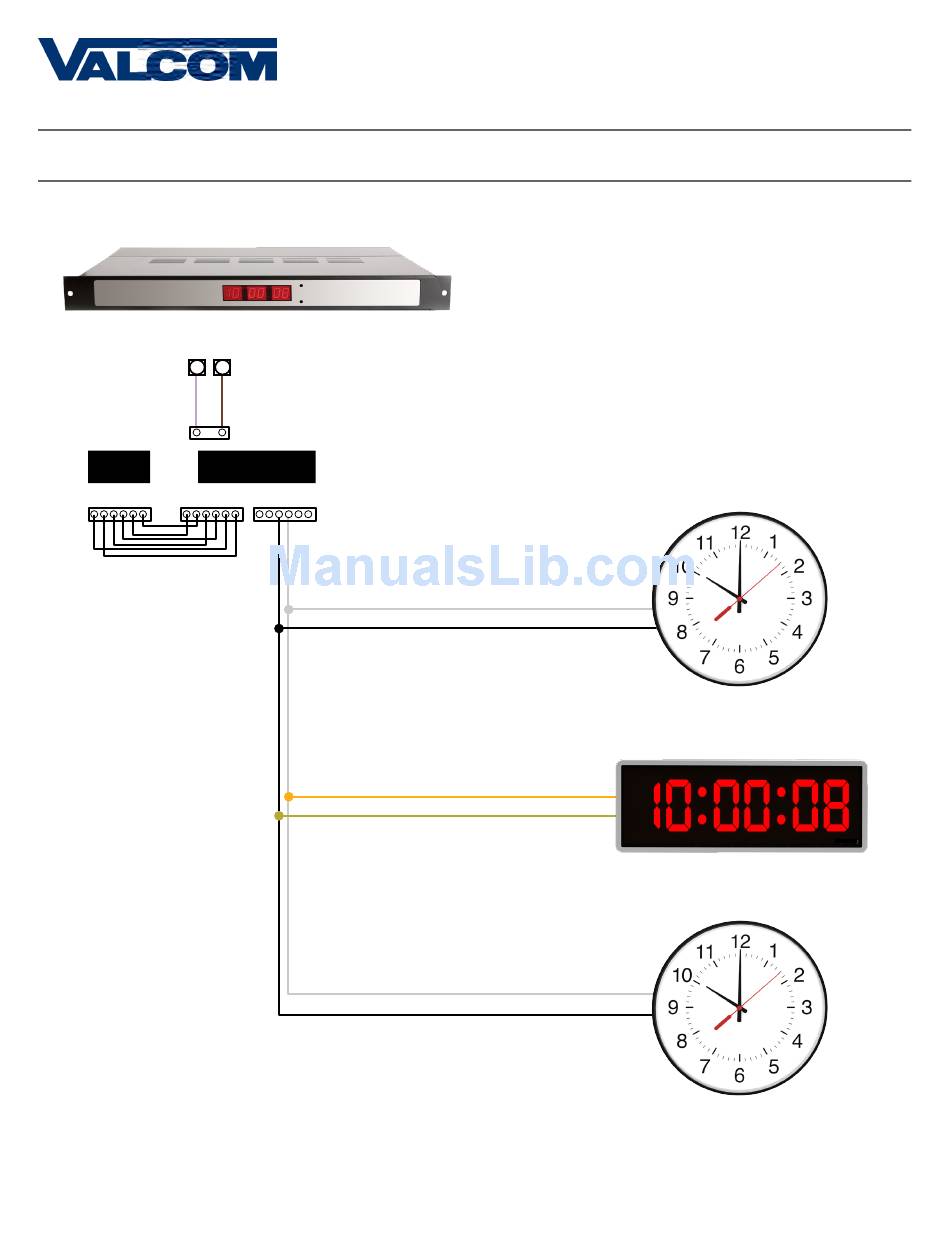

Inputs - System-Side - 2-Wire Digital
Valcom Master Clock
18 19
Data In
V-C6124P
24 volt outputs 24 VDC IN
+ - + - + - + - + - + -
*V-C6124P and the V-CCU are
ordered as a V-VCU.
V-CCU
2 Wire Digital
Output to Clocks
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
White
Black
V-A2412 or V-A2416
V-A2412B or V-A2416B
Orange
Yellow
V-D2425B-6 or V-D2440B-6
White
Black
V-A2412 or V-A2416
V-A2412B or V-A2416B
P. 540-563-2000
F. 540-362-9800
www.valcom.com
30
