Double Mount Installation

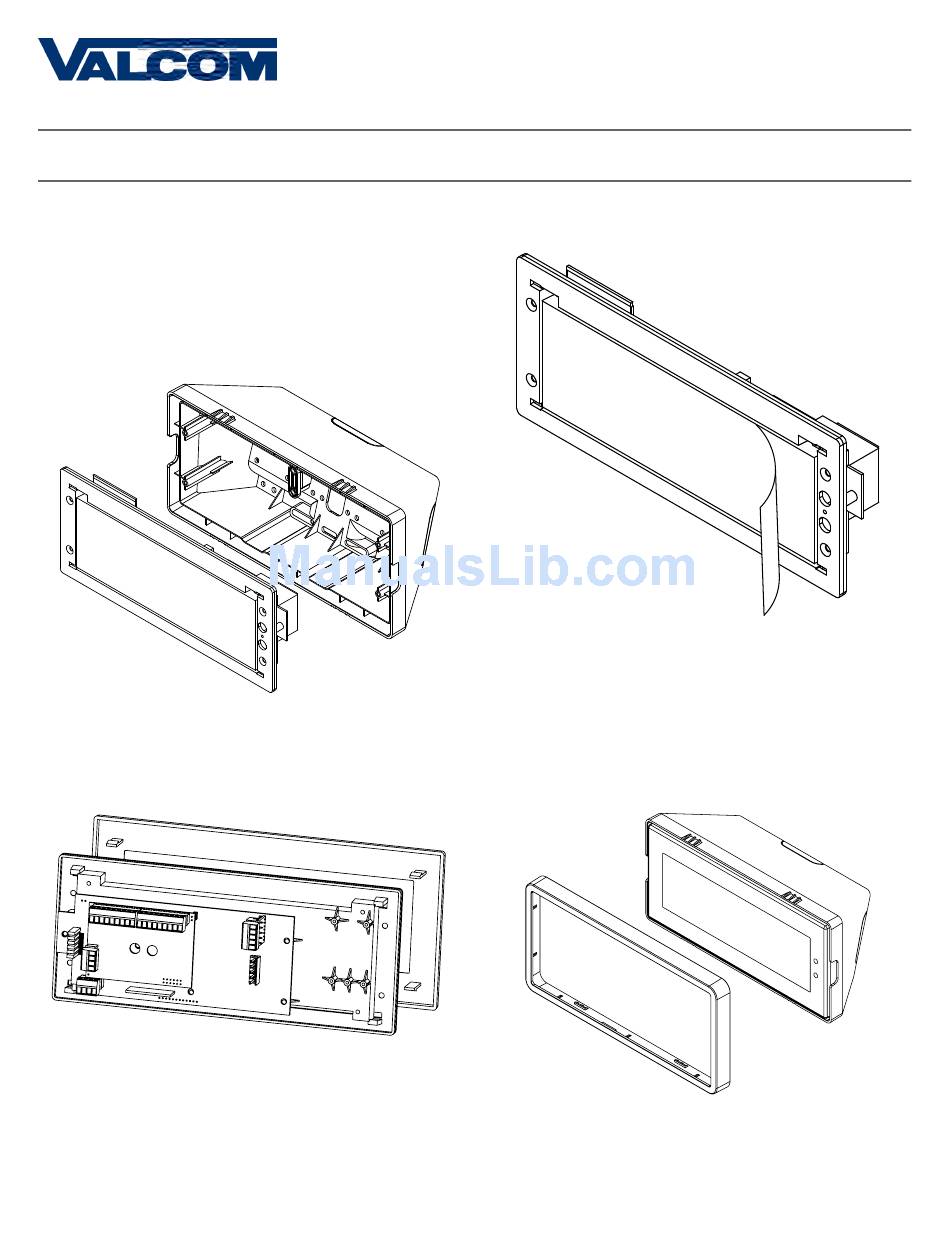

16) Use the M3.5-1.5x12 screws to attach a display
board to each housing.
NOTE: For 2.5" Digit clocks, the holes for the
screws will be on the left and right inner surfaces of
the housing. For 4.0" Digit Clocks, the holes will be
on the top and bottom surfaces.
18
18) Place a filter over each display board. You
should hear a snapping noise as the latches drop
into place.
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
17
17) Remove the plastic cover from each display board.
19
19) Place a housing frame onto each housing. You
should hear a snapping noise as the latches drop
into place.
