Double Mount Installation
14A14B

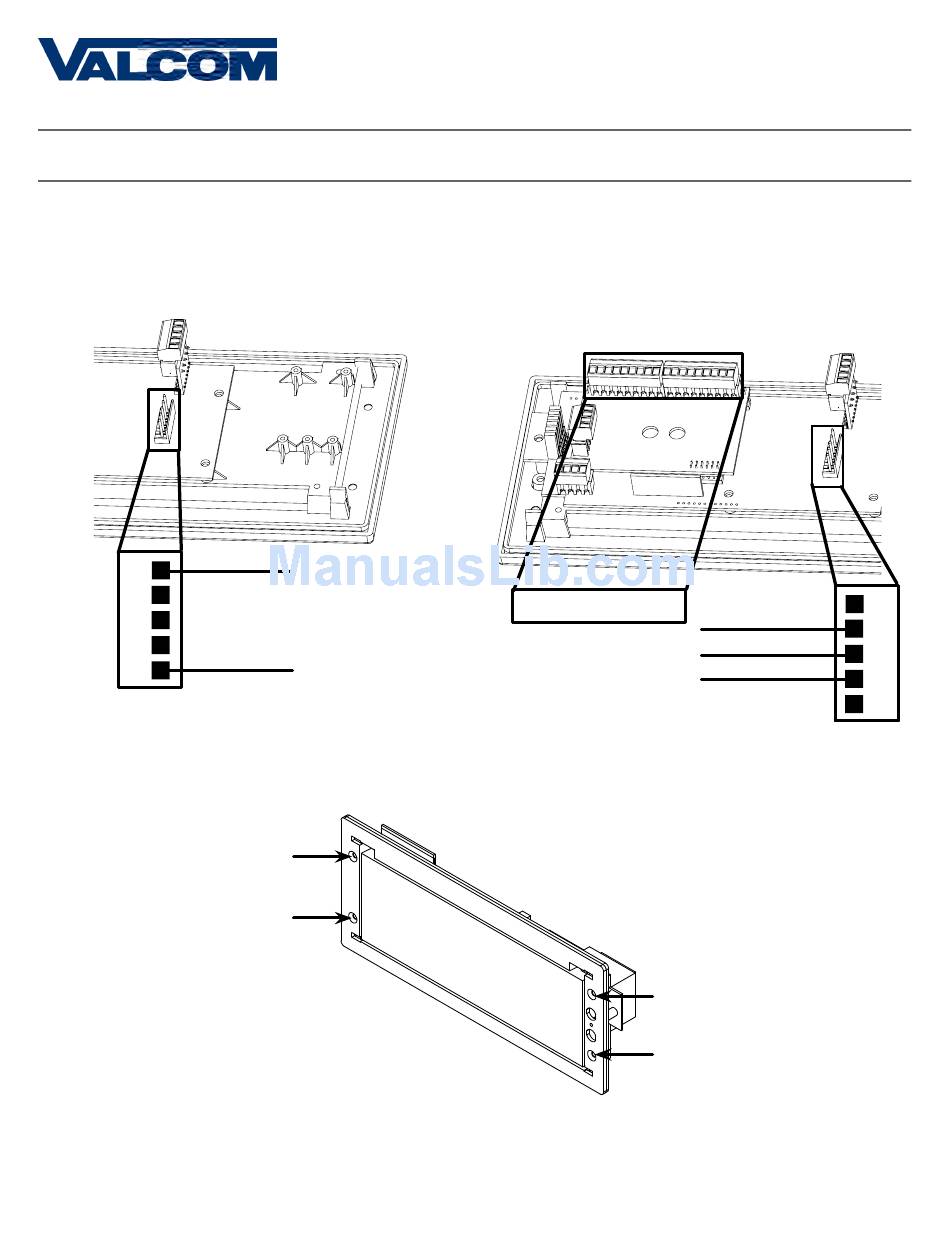

14A) If you are installing digital clocks that use a
2-wire digital sync system, attach the wires to the
port as shown below.
24VDC (Orange)
1
2
3
4
15
24VDC (Yellow)
5
15) Use the M3/5-15x12 screws to attach each display board to the housing.
NOTE: For 2.5" Digit clocks, the holes for the screws will be on the left and right inner surfaces of the
housing. For 4.0" Digit Clocks, the holes will be on the top and bottom surfaces.
