Specification; Contact Information - Racelogic PerformanceBox Manual

Racelogic Ltd

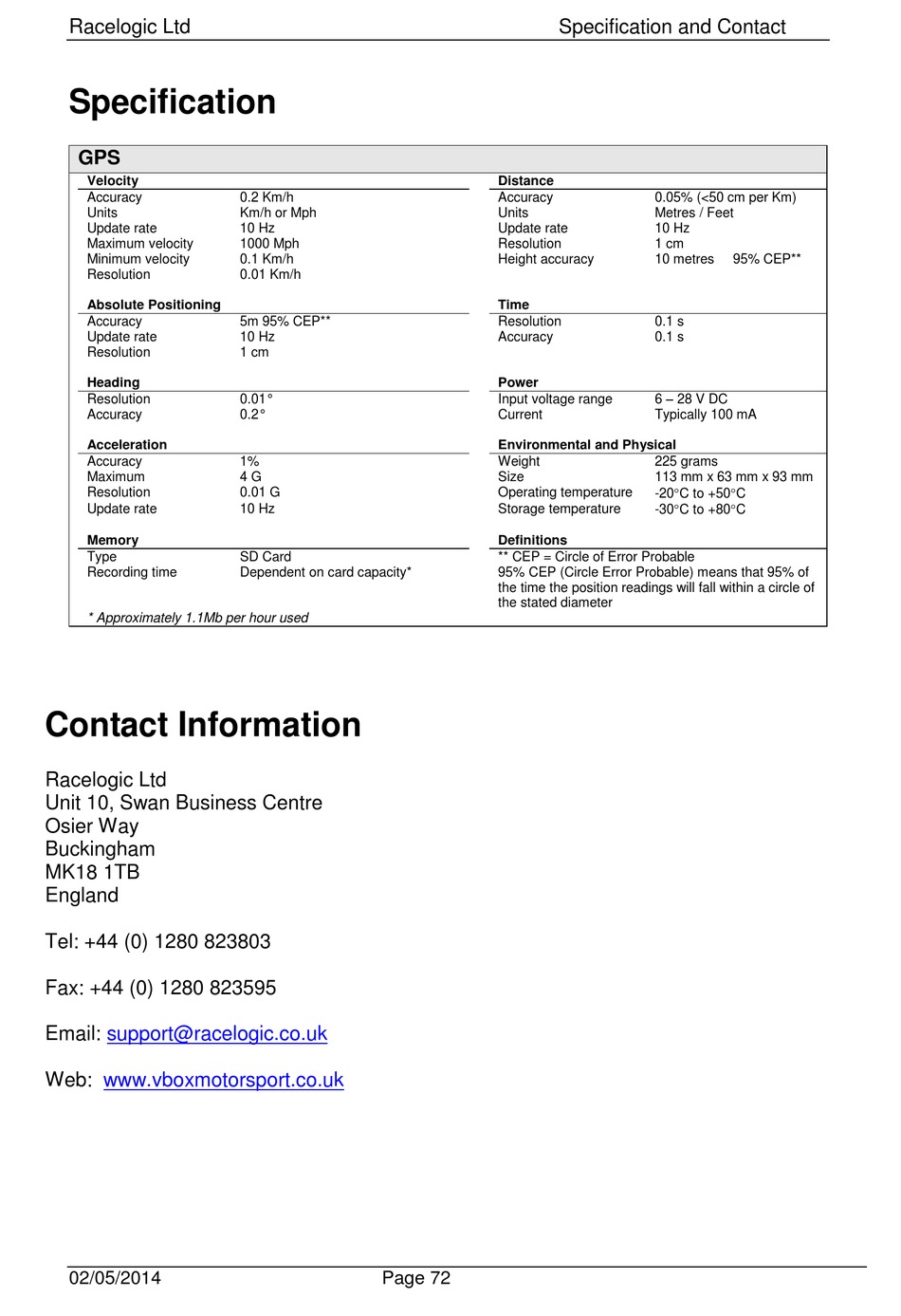

Specification

GPS
Velocity
Accuracy
Units
Update rate
Maximum velocity
Minimum velocity
Resolution
Absolute Positioning
Accuracy
Update rate
Resolution
Heading
Resolution
Accuracy
Acceleration
Accuracy
Maximum
Resolution
Update rate
Memory
Type
Recording time
* Approximately 1.1Mb per hour used

Contact Information

Racelogic Ltd
Unit 10, Swan Business Centre
Osier Way
Buckingham
MK18 1TB
England
Tel: +44 (0) 1280 823803
Fax: +44 (0) 1280 823595
Email: support@racelogic.co.uk
Web: www.vboxmotorsport.co.uk
02/05/2014
0.2 Km/h
Km/h or Mph
10 Hz
1000 Mph
0.1 Km/h
0.01 Km/h
5m 95% CEP**
10 Hz
1 cm
0.01°
0.2°
1%
4 G
0.01 G
10 Hz
SD Card
Dependent on card capacity*
Page 72
Specification and Contact
Distance
Accuracy 0.05% (<50 cm per Km)
Units Metres / Feet
Update rate 10 Hz
Resolution 1 cm
Height accuracy 10 metres
Time
Resolution 0.1 s
Accuracy 0.1 s
Power
6 – 28 V DC
Input voltage range
Current Typically 100 mA
Environmental and Physical
Weight 225 grams
Size 113 mm x 63 mm x 93 mm
Operating temperature
-20C to +50C
Storage temperature
-30C to +80C
Definitions
** CEP = Circle of Error Probable
95% CEP (Circle Error Probable) means that 95% of
the time the position readings will fall within a circle of
the stated diameter
95% CEP**
