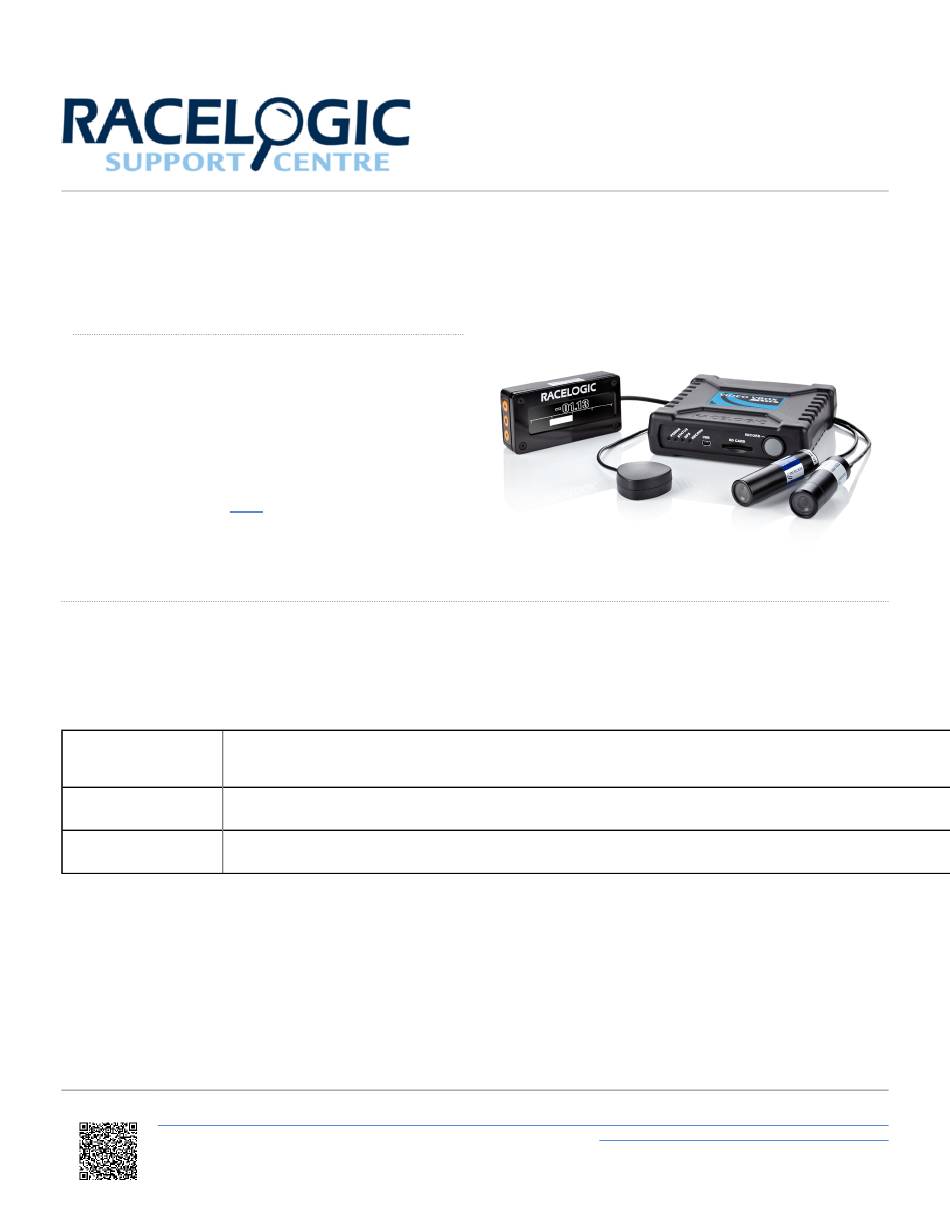

Quick Start Guide – OLED DSP05-M
Registration
Please register your OLED Display so that Racelogic
can continue to provide you with notifications about the
latest software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a OLED Display DSP05-M, you will find the following items when you open the box:
Product
Quantity
Description
Code
1
VBDSP05-M
OLED Display with Mini Din connector
1
RLACS287
VBOX Lightweight Suction Mount
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_Guide_%E2%80%93_OLED_DSP05-M
1
Advertisement
Table of Contents
Related Manuals for Racelogic DSP05-M
Summary of Contents for Racelogic DSP05-M
- Page 1 Racelogic product, and offer technical support. Register your device here. What is in the box? When you purchase a OLED Display DSP05-M, you will find the following items when you open the box: Product Quantity Description...
-
Page 2: Memory Usage
• Mini Din connector for connection to Video VBOX Lite Memory Usage If the SD card you use in the connected Video VBOX Lite has less than 10 MB of space available you will see a warning symbol amount of memory available. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M... - Page 3 No action Lateral G Reset max g reached Lateral G Bar Set min g and max g (targets) Longitudinal G Reset max g reached Longitudinal G Bar Set min g and max g (targets) Menu Access the Menu https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 4 5 mph or less. This makes it easier for you to make sure that you have an SD card inserted before you start your logging. Installing your VBOX OLED Display Video VBOX Lite To connect to a Video VBOX Lite, connect the cable into the ‘AUX’ port. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
-
Page 5: Display Modes Overview
Even if you choose not to display it, the data displayed on each screen is always calculated by the connected Video VBOX Lite at all times (with the exception of Delta-T which is calculated by the DSP05 OLED Display). Click on the name of each mode to find relevant setup information. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M... - Page 6 Speed Max. Speed Lap Timing Predictive Lap Timing Lap Count Longitudinal G Longitudinal G Bar Lateral G https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
-
Page 7: Menu Options
You can select the scene on the DPS05 OLED Display. If there are scene files on the Video VBOX Lite, a screen will prompt you to select a scene when you power up the DSP05 OLED Display. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M... -
Page 8: Track Selection
Track Selection When the Video VBOX Lite has acquired satellites, it will check the GNSS location against Racelogic’s track map database and load the available layouts. Where a track has multiple layouts, you must use this menu option to select the layout you are driving, as this allows the DSP05 OLED Display to load the correct start/finish line(s). - Page 9 The lap times will be cleared when you set a new start line or when you reset the lap timing data. Back Press the square button with this line highlighted to exit the Lap Times and go back to the main menu. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 10 This setting alters the amount of +/- time shown on the bar graph during lap prediction. You can choose either 2, 5, 10 or 30 seconds. Press the square button when the bar range is highlighted to scroll through different time options. Delta-T Speed Mode https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 11 Each time you press the button the value will increase in increments of 0.5 s, up to 5.0 s, before it cycles back to 0.0 s. Press one of the arrow buttons to Time Delay move away from the setting and save the displayed time. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 12 Press the square button to change the minimum lap time. You will see two arrows (up and down) appear next to the number. Use the two arrow buttons on the device to increase/decrease the minimum time. Press the square button again to confirm your selected value. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 13 Minimum Lap Time setting as you are making the decision to set the current and full lap as the reference. Back Press the square button with this line highlighted to exit the Predictive Lap Timing Settings and go back to the main menu. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 14 This function allows you to set how long the split time is shown on the DSP05 OLED display when a split line or the start/finish line is crossed. There is a choice of 2s, 5s, 10s, 15s or 20s. Press the square button to cycle between these options. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 15 10 seconds. This will automatically reset when the user comes to a stop. After 2 seconds of being stationary, the screen counts down from 5 then shows ARMED – Start when ready. Gate Width 1-100 m Back https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
-
Page 16: Display Menu
Display Modes available in each Display Menu Mode. Press the square button to toggle between the options: Basic Features Speed Lap Timing Basic Modes Predictive Lap Timing Menu Advanced Features (Default) Speed Lap Timing Predictive Lap Timing Advanced Modes Menu Max Speed Speed Bar https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M... - Page 17 Highlight the desired measurement type and press square to select. mph, km/h, kts Speed Decimal Places Pressing the square button will cycle through 0, 1, and 2 decimal places. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 18 Press the square button to toggle through 0, 1, and 2 decimal places. Accel Smoothing Press the square button to toggle through five smoothing settings. Back Press the square button with this line highlighted to exit the Accel Settings and go back to the Display Menu. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 19 See the images above for examples of the four different colour and font combinations. Back Press the square button with this line highlighted to exit the Display Menu and go back to the Main Menu. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
- Page 20 Back Press the square button with this line highlighted to go back to the Main Menu. Exit Press the square button with this line highlighted to exit the Menu and go back to the Display Modes. https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/ Quick_Start_Guide_%E2%80%93_OLED_DSP05-M...
