PerformanceTools Software

PerformanceTools Software
The PerformanceTools software allows you to view the driving data recorded by
PerformanceBox in a '.dbn' file. The software also allows you to display Lap times,
Acceleration, Deceleration results, and to carry out detailed analysis of driver and vehicle
performance.

Installation

Each PerformanceBox is supplied with a CD containing the PerformanceTools software.
Insert the CD into your computer, the installation should then auto run. The Installation will
place a shortcut onto your desktop for the main analysis software, and also install USB
drivers for upgrading your PerformanceBox. The software installation is also available from
the downloads section of the PerformanceBox website, along with the current firmware
release.

PerformanceTools Windows

PerformanceTools is made up of several windows, each displaying a variety of data in both a
graphical and textual form.

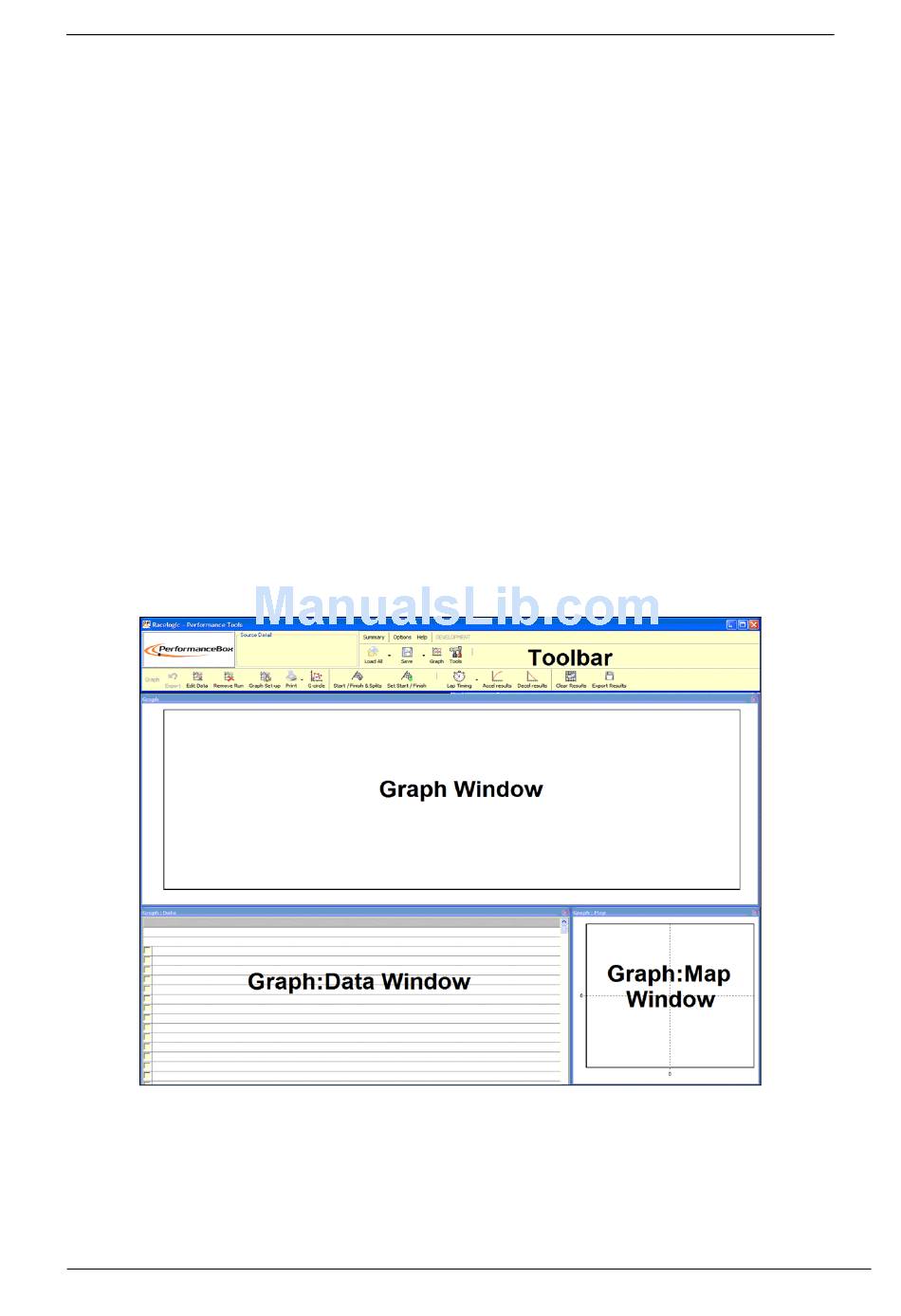

When the software is started for the first time after installation, and before any files have
been loaded, the windows visible will be the Toolbar, the Graph screen, the Graph:Data
screen, and the Graph:Map screen:
There are additional windows that can be displayed, according to the functions being
employed to analyse your data – these will be described in subsequent sections of this
manual.
02/05/2014 Page 35
