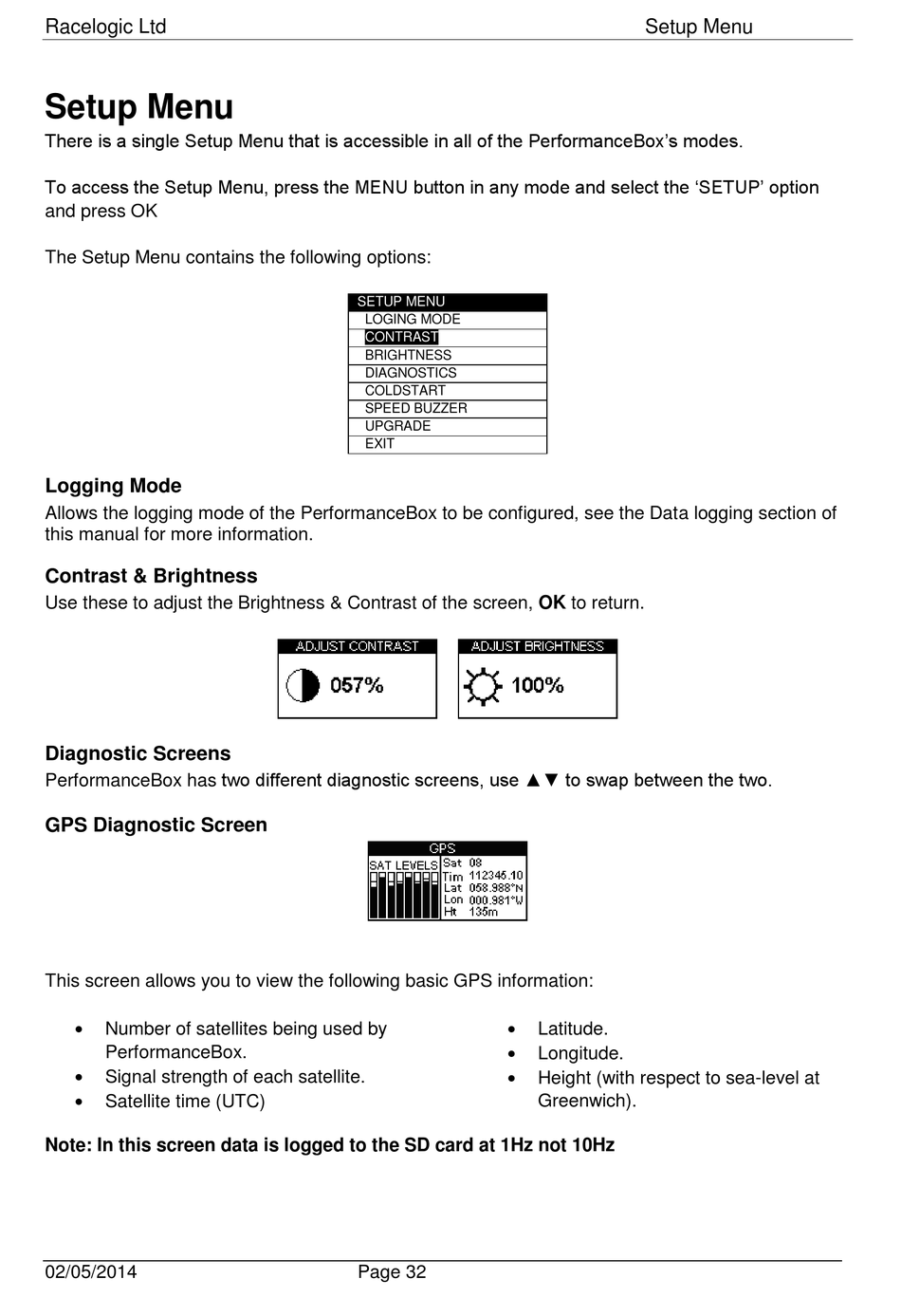

Setup Menu

There is a single Setup Menu that is accessible in all of the PerformanceBox's modes.
To access the Setup Menu, press the MENU button in any mode and select the 'SETUP' option
and press OK
The Setup Menu contains the following options:

Logging Mode

Allows the logging mode of the PerformanceBox to be configured, see the Data logging section of
this manual for more information.
Contrast & Brightness
Use these to adjust the Brightness & Contrast of the screen, OK to return.

Diagnostic Screens

PerformanceBox has two different diagnostic screens, use ▲▼ to swap between the two.

GPS Diagnostic Screen

This screen allows you to view the following basic GPS information:

Number of satellites being used by
PerformanceBox.

Signal strength of each satellite.

Satellite time (UTC)
Note: In this screen data is logged to the SD card at 1Hz not 10Hz
02/05/2014
SETUP MENU
LOGING MODE
CONTRAST
BRIGHTNESS
DIAGNOSTICS
COLDSTART
SPEED BUZZER
UPGRADE
EXIT



Page 32
Setup Menu
Latitude.
Longitude.
Height (with respect to sea-level at
Greenwich).
