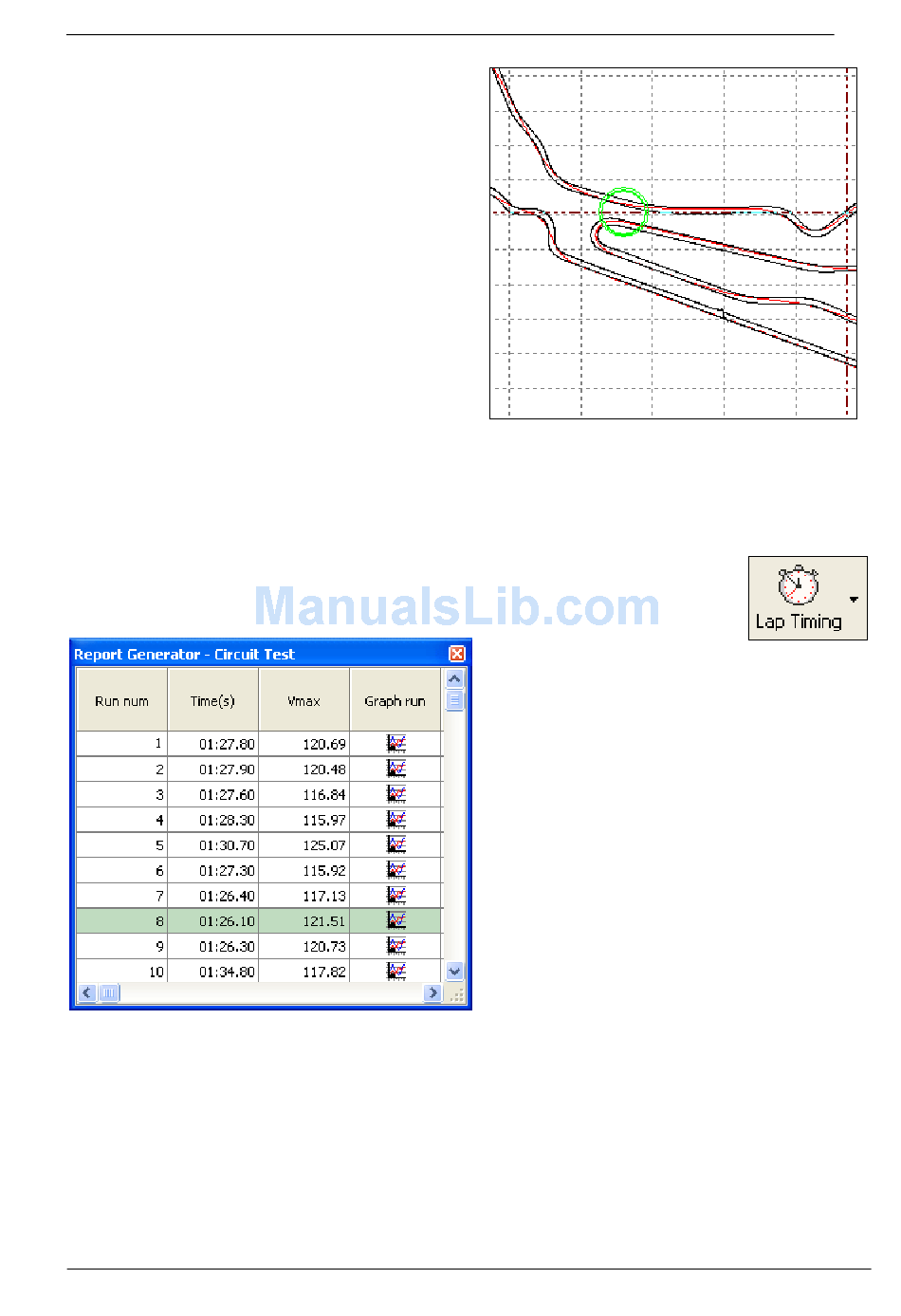

The circled area circled in green shows two
sections of track passing by each other by only
approximately 20m. If a split point is set on this
section, and the virtual gate has been set too
wide, the split point could be registered by the
PerformanceBox as it passes by in the opposite
direction.
Track proximity can be checked in Google
TM
Earth using the measurement tool if you are in
doubt as to how wide the split points should be
created.

Split Names

Split points can be named from the option in the
'Start, Finish & Splits' menu. When the Lap Timing – Split Line option is chosen to display lap
times (assuming that split points have been created) an extra column will display the split
names.

Displaying Lap Times

Load the PerformanceBox .dbn file into the software, then define a start / finish
line (along with split points and a separate finish line if required) in the manner
described above, or by loading a .dsf or .spl file.

Including Split times

If you have set up split points in addition to the start / finish and wish to see the split times
displayed, click on the right hand arrow on the Lap timing button, then from the drop down
menu select 'Lap Timing – Split Line'. The results table will show the split times as well as
the Lap times in the file.
02/05/2014
PerformanceTools Software
Press the Lap Timing button on the
Toolbar. The software scans the currently
loaded file, extracts lap times and Vmax
for each logged lap, and displays the data
in a results window.
Note: The fastest lap in the results table
will be highlighted for quick and easy
recognition (see example left.)
