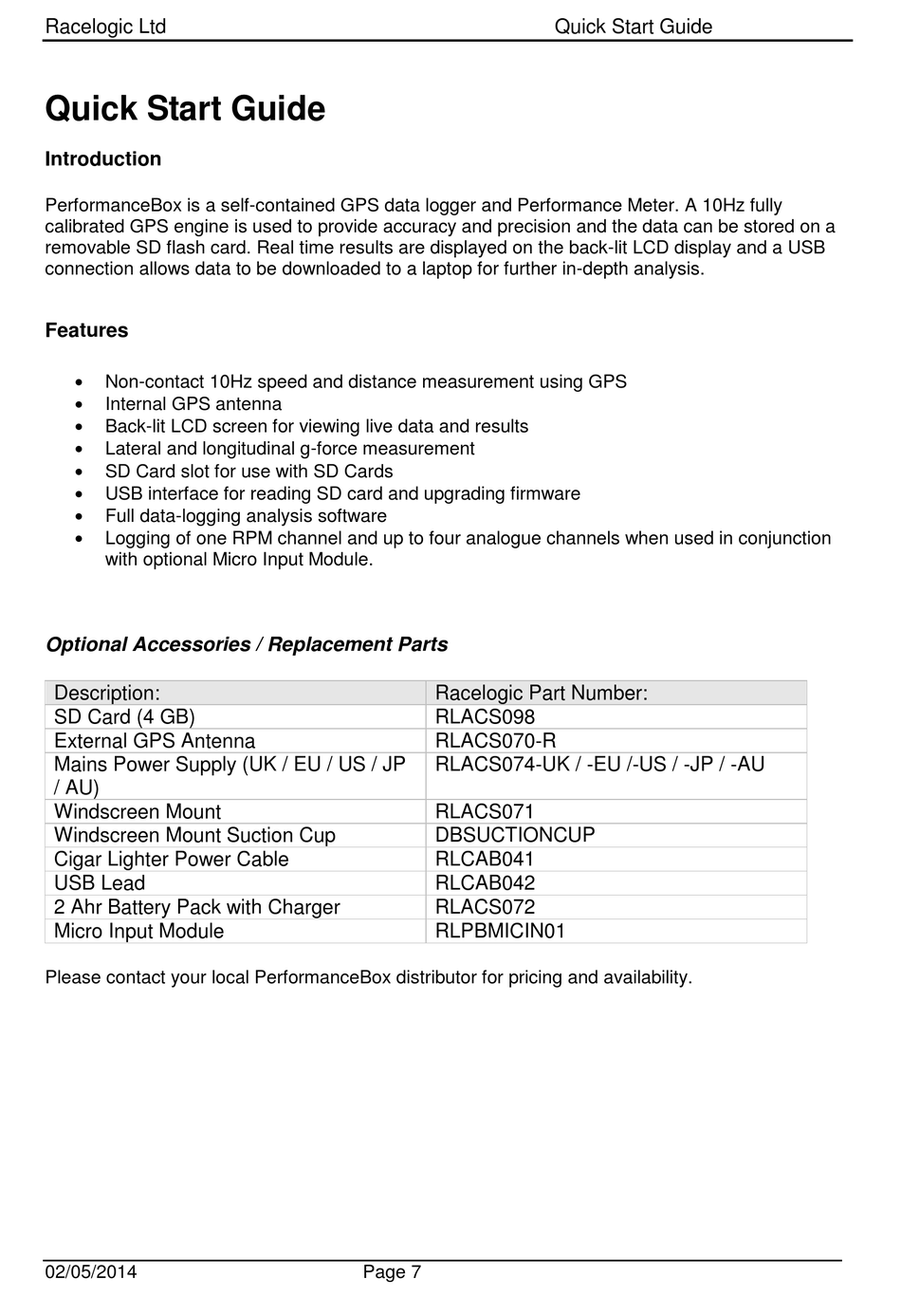

Quick Start Guide

Introduction

PerformanceBox is a self-contained GPS data logger and Performance Meter. A 10Hz fully
calibrated GPS engine is used to provide accuracy and precision and the data can be stored on a
removable SD flash card. Real time results are displayed on the back-lit LCD display and a USB
connection allows data to be downloaded to a laptop for further in-depth analysis.

Features


Non-contact 10Hz speed and distance measurement using GPS

Internal GPS antenna

Back-lit LCD screen for viewing live data and results

Lateral and longitudinal g-force measurement

SD Card slot for use with SD Cards

USB interface for reading SD card and upgrading firmware

Full data-logging analysis software

Logging of one RPM channel and up to four analogue channels when used in conjunction
with optional Micro Input Module.

Optional Accessories / Replacement Parts

Description:
SD Card (4 GB)
External GPS Antenna
Mains Power Supply (UK / EU / US / JP
/ AU)
Windscreen Mount
Windscreen Mount Suction Cup
Cigar Lighter Power Cable
USB Lead
2 Ahr Battery Pack with Charger
Micro Input Module
Please contact your local PerformanceBox distributor for pricing and availability.
02/05/2014
Racelogic Part Number:
RLACS098
RLACS070-R
RLACS074-UK / -EU /-US / -JP / -AU
RLACS071
DBSUCTIONCUP
RLCAB041
RLCAB042
RLACS072
RLPBMICIN01
