Software Basics

Opening PerformanceBox Files – Load All

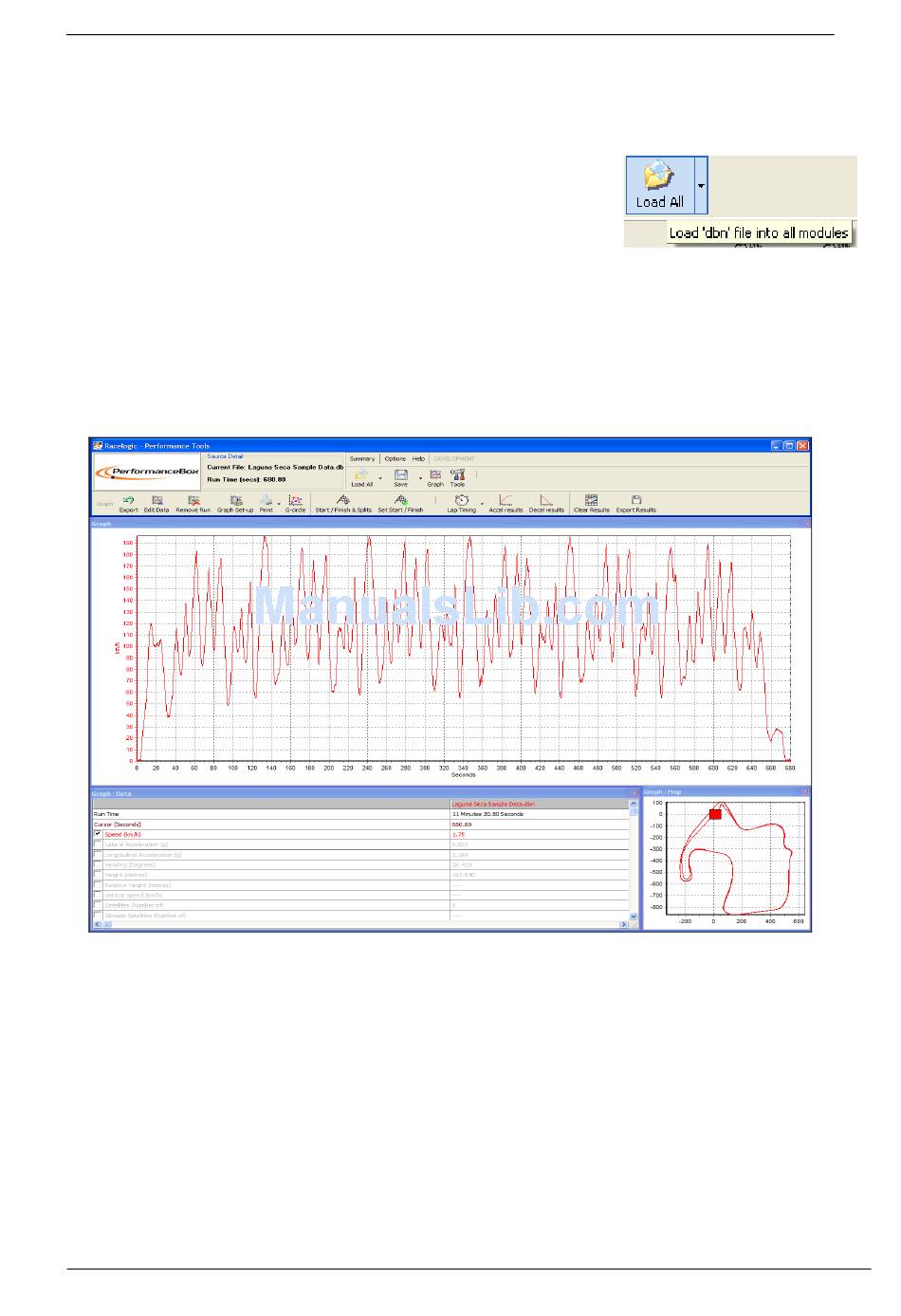

To load a file that has been recorded by your PerformanceBox,
click on the Load All button on the Toolbar. An 'Open' window will
appear – navigate to the directory on your PC that contains your
PerformanceBox files and select the file you wish to view.
By default the 'Files of Type:' will be 'PerformanceBox Binary Files (*.dbn)', with a further
option of 'VBOX Data Files (*.vbo)'. Unless you are loading files that have been recorded
using Racelogic VBOX equipment you will not need to select the .vbo file type.

Data Display

Once a file has been loaded the three windows will each display some information, as
described in PerformanceTools Windows on page 35.
Note how in the example above, the Graph window is showing speed in Km/h (Y axis), and
time in seconds (X axis); the Graph:Map shows the path the vehicle took whilst the file was
being recorded (in this example the Laguna Seca circuit in the United States); and the
Graph:Data window is displaying values from the file according to the position of the cursor in
the Graph window.
The Toolbar displays the file name and total run time next to the PerformanceBox logo.

Graph Set-up

The Graph Set-up button brings up a list of options that apply to all three of the main
windows, and can also be brought up by right-clicking on any of the three main windows.
Each function is described in further detail in the following sections.
02/05/2014 Page 37
