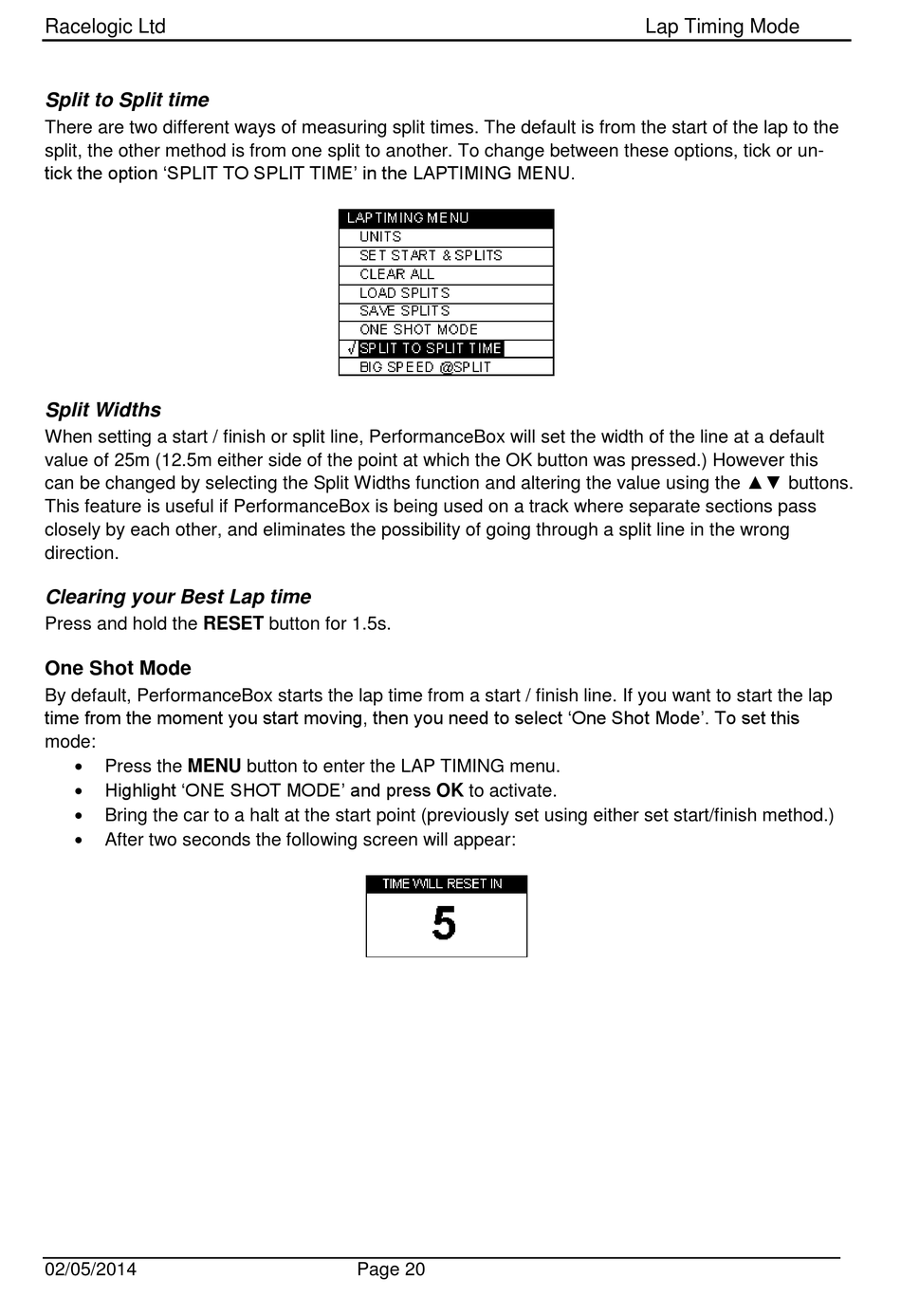

Split To Split Time; Split Widths; Clearing Your Best Lap Time; One Shot Mode - Racelogic PerformanceBox Manual

Racelogic Ltd

Split to Split time

There are two different ways of measuring split times. The default is from the start of the lap to the
split, the other method is from one split to another. To change between these options, tick or un-
tick the option 'SPLIT TO SPLIT TIME' in the LAPTIMING MENU.

Split Widths

When setting a start / finish or split line, PerformanceBox will set the width of the line at a default
value of 25m (12.5m either side of the point at which the OK button was pressed.) However this
can be changed by selecting the Split Widths function and altering the value using the ▲▼ buttons.
This feature is useful if PerformanceBox is being used on a track where separate sections pass
closely by each other, and eliminates the possibility of going through a split line in the wrong
direction.

Clearing your Best Lap time

Press and hold the RESET button for 1.5s.

One Shot Mode

By default, PerformanceBox starts the lap time from a start / finish line. If you want to start the lap
time from the moment you start moving, then you need to select 'One Shot Mode'. To set this
mode:

Press the MENU button to enter the LAP TIMING menu.

Highlight 'ONE SHOT MODE' and press OK to activate.

Bring the car to a halt at the start point (previously set using either set start/finish method.)

After two seconds the following screen will appear:
02/05/2014 Page 20
Lap Timing Mode
