Component
CPU
Memory
I/O expansion
Storage devices
USB ports
Video ports
Management ports
Network ports
Power supplies
Fan modules
SP
Related Information
Server Service
■
Oracle ILOM documentation
■
"Front Panel Components" on page 13
■
"Rear Panel Components" on page 14
■

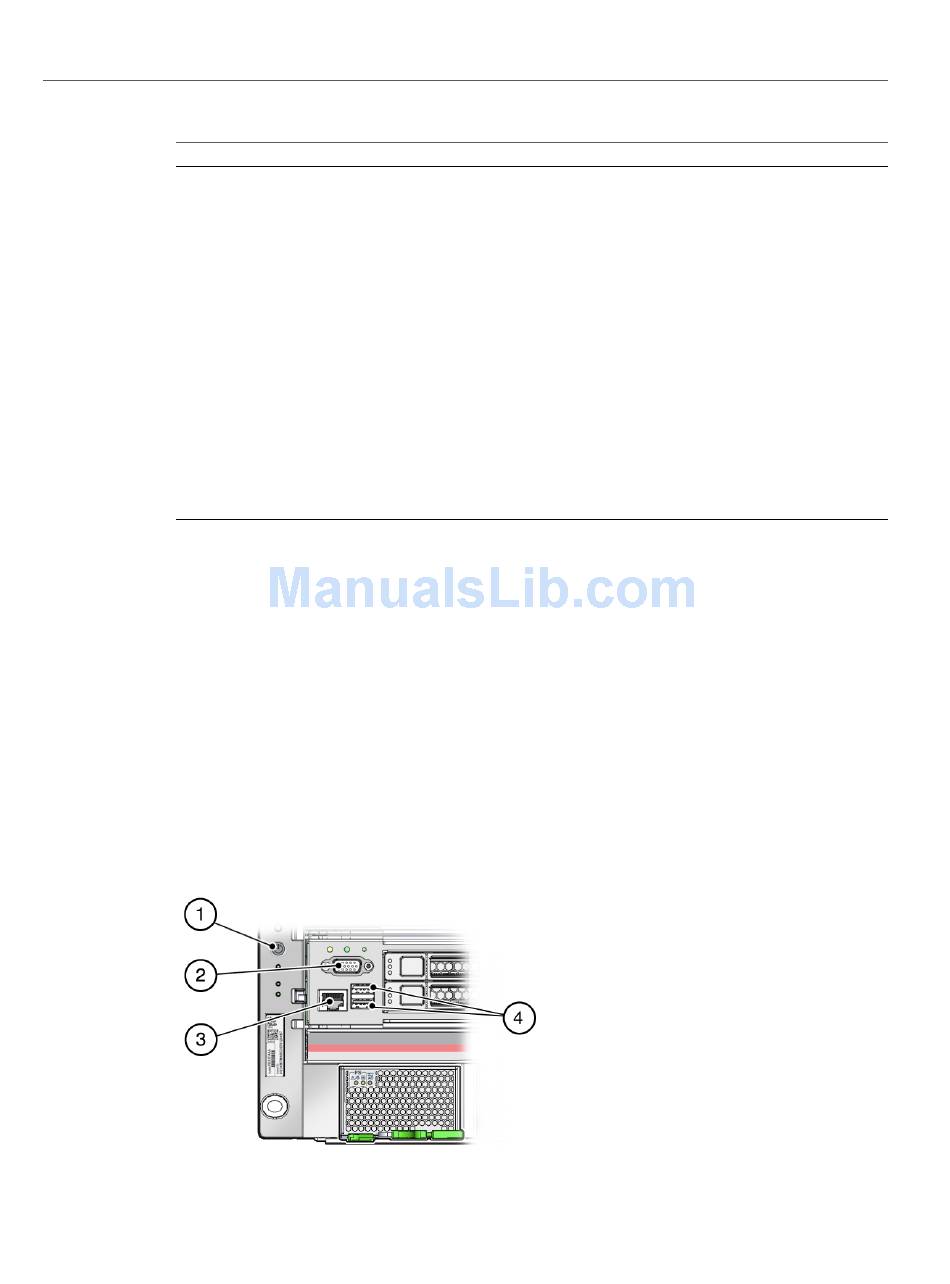

Front Panel Components

Description
2x or 4x SPARC T5, 16-core chip multiprocessor (CMP) with 8 threads per core.
64 DDR3 DIMM slots (capacities: 16 GB or 32 GB)
Sixteen PCIe Gen3 card slots (x8 electrical interface).
For internal storage, the server provides:
■ Eight 2.5-inch hard drives (front panel).
■ A slot-loading USB-connected DVD+/-RW drive (front panel).
Four external USB 3.0 ports (2 front, 2 rear).
Two high-density HD-15 video ports (1 front, 1 rear).
■ Two RJ-45 SER MGT ports (1 front, 1 rear)
■ One 10/100 NET MGT port (rear)
Four 10GbE, 100/1000/10000 Mbps (rear)
Two hot-swappable AC 3000W redundant (1 + 1). Accessed on the front panel.
Five (N+1) hot-swappable, redundant fan modules at chassis rear.
Oracle Integrated Lights Out Manager (Oracle ILOM).
Front Panel Components
Understanding the Server 13
