Chapter 5: Configure LAN, WAN, and SHDSL

Set Up a IPoA Routed

Step
1 Select Configuration|WAN|Create a new service to access the WAN Connection: Create Service page.
Click on IPoA Routed
2 Click Configure.
5-24
(Figure 5-21).

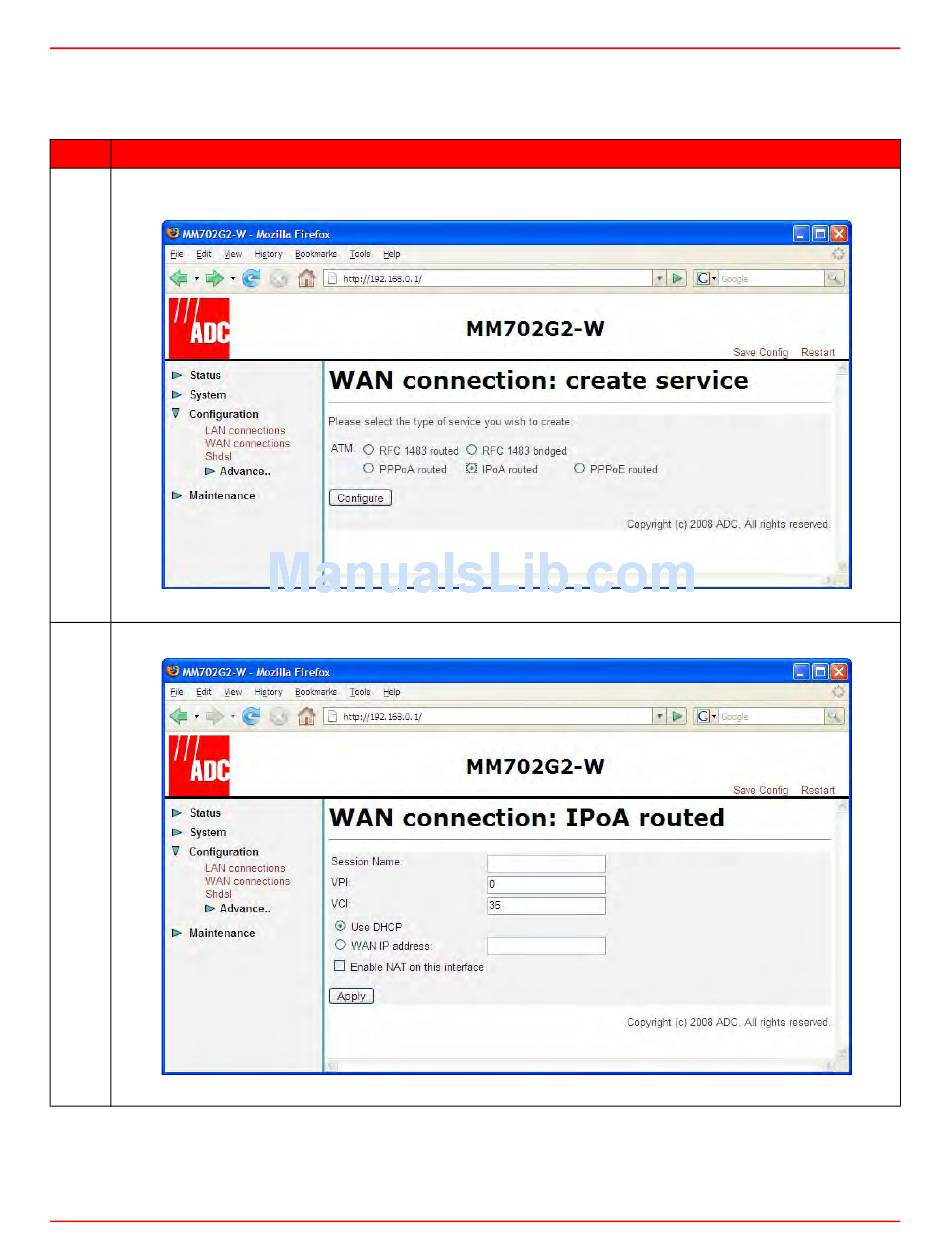

Figure 5-21. Select IPoA Routed
Figure 5-22 is displayed.
Figure 5-22. IPoA Routed
Action
MM702G2-W-UM-03
