Figure 6-44.Create Unicast Source Mac Filtering Entry - ADC MM702G2-W V5.x User Manual

Chapter 6: Configuring Advanced Features
Step
2 To add a new Unicast Source MAC Filtering Entry, do the following:
a. On the Unicast Source MAC Filtering page
Figure 6-44
b. Input the following interfaces:
– Name – Assign a Name.
– Receive Port – Values are interface and WAN session names. Receive port is referenced
from the session names. Default is bri-eth.
– Source MAC Address – Values are 6 hexadecimal pairs separated by a colon
(e.g., 00:20:2b:01:02:03).
– Entry Type – Default is SRC Static.
c. Click OK to add the parameters or click Reset to keep the current settings.
6-46
is displayed.

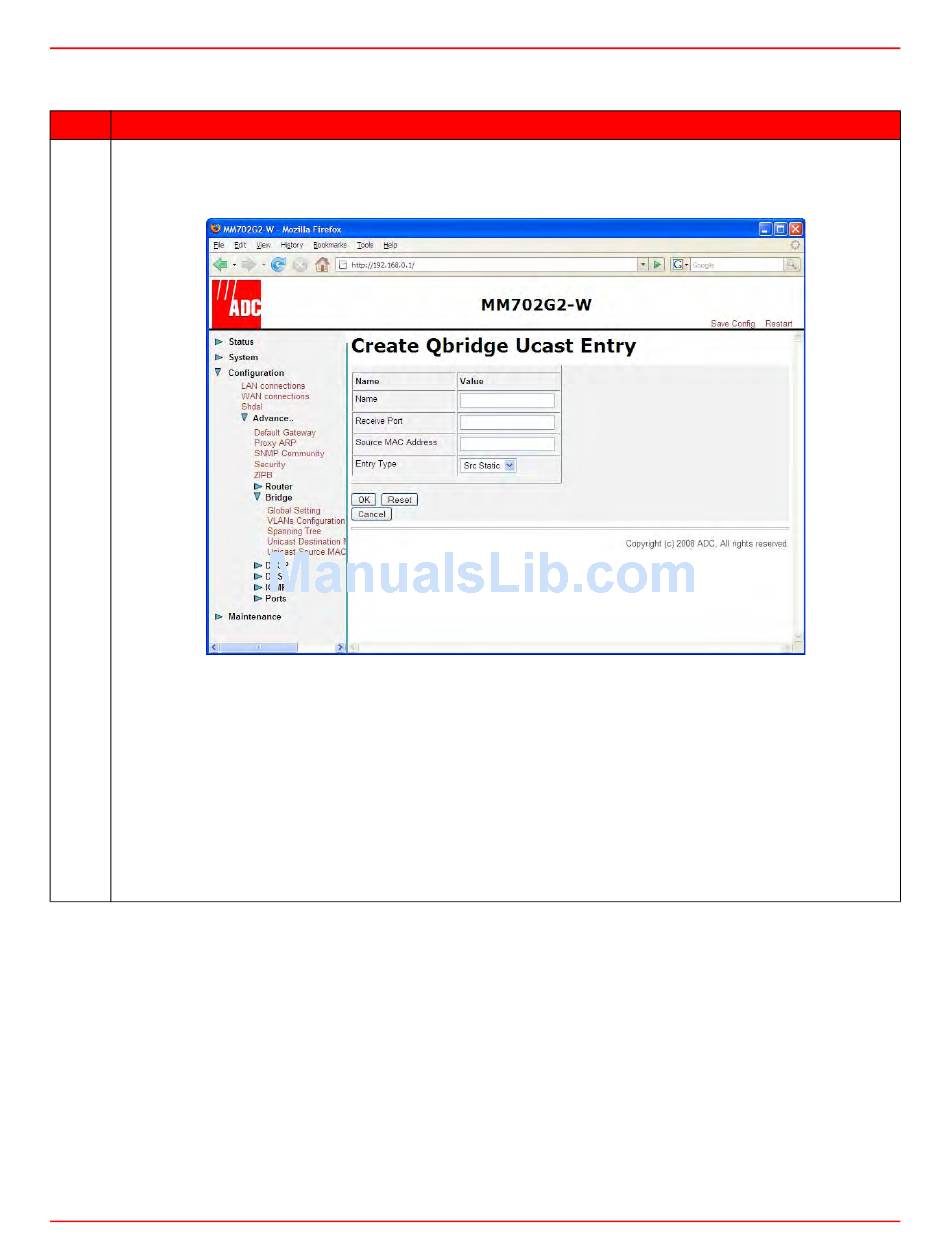

Figure 6-44. Create Unicast Source MAC Filtering Entry
Action
(Figure 6-43 on page 6-45), click Create New Entry.
