iSystem iC5000 Hardware Reference Manual page 63

With this adapter, the following pinout is valid on the target side:
Signal Signal description
direction
Ground
Not Connected
Not Connected
Not Connected
O Communication line
Not Connected
I/O Communication line
I Reset In
The adapter connects to the target via a 10-pin 2.54 mm connector (for example Yamaichi: FAS-1001-2101-2-
OBF). A target should feature a matching part (for example WÜRTH ELEKTRONIK: 612 010 216 21).
 iSYSTEM, October 2016
Signal Pin Pin
GND 1
NC 3
NC 5
NC 7
X1 9
NC 11 12
X2 13 14
RESET IN 15 16

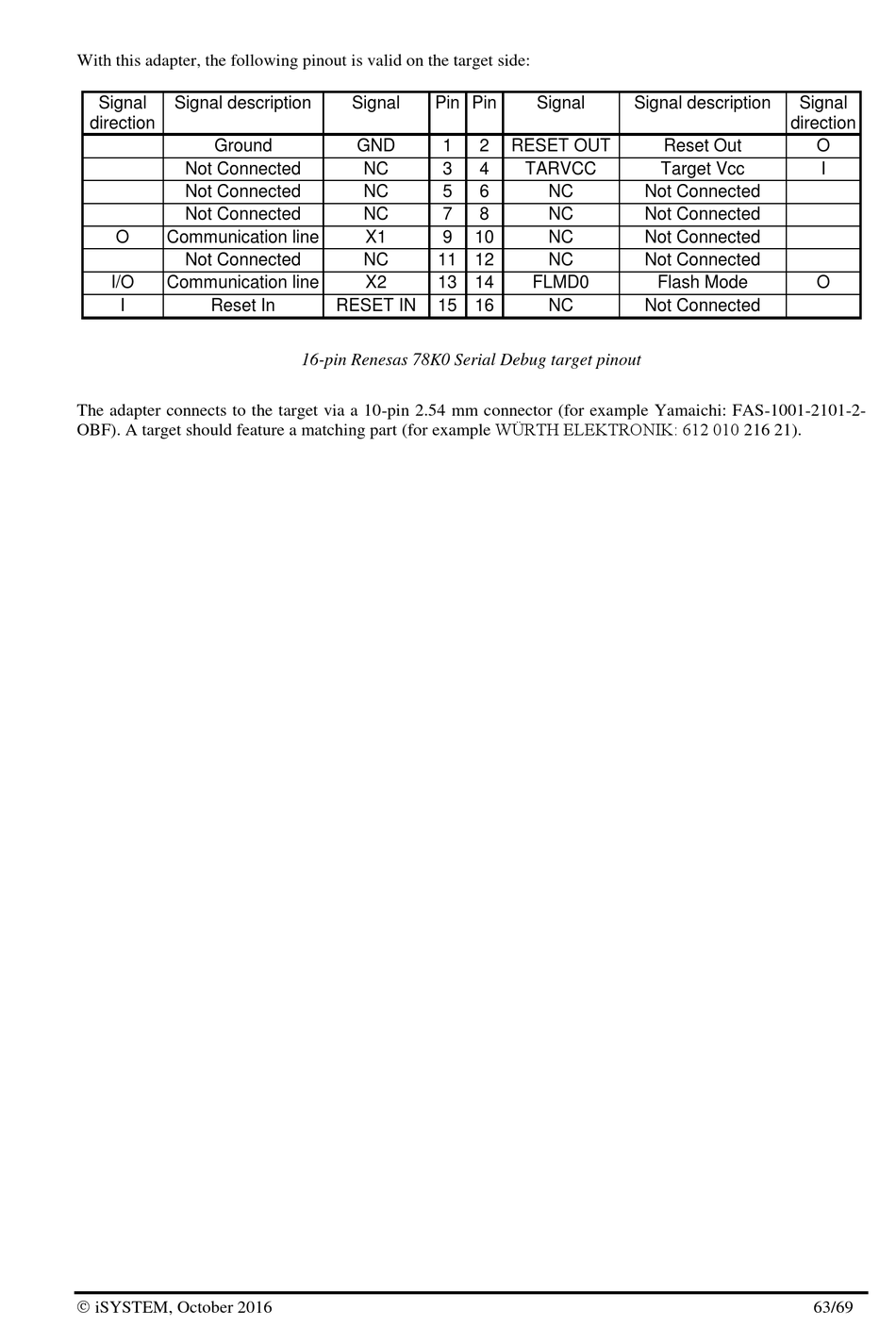

16-pin Renesas 78K0 Serial Debug target pinout
Signal Signal description
2 RESET OUT
4 TARVCC
6 NC
8 NC
10 NC
NC
FLMD0
NC
Signal
direction
Reset Out
Target Vcc
Not Connected
Not Connected
Not Connected
Not Connected
Flash Mode
Not Connected
O
I
O
63/69
